DECAN_F2_TRM(Ver6.2_CS17.02) - 第356页
Page +$1:+$ 352 DECAN F2 Motor IF Board (11/18)
Page
+$1:+$
351
DECAN
F2
Motor IF Board (10/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010950A CABLE ASSY-AXIO_BD_3_PWR 1
2 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1
3 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
4 AM03-010892A CABLE ASSY-Z1_MOTOR 1
5 AM03-010893A CABLE ASSY-Z2_MOTOR 1
Page
+$1:+$
352
DECAN
F2
Motor IF Board (11/18)
Page
+$1:+$
353
DECAN
F2

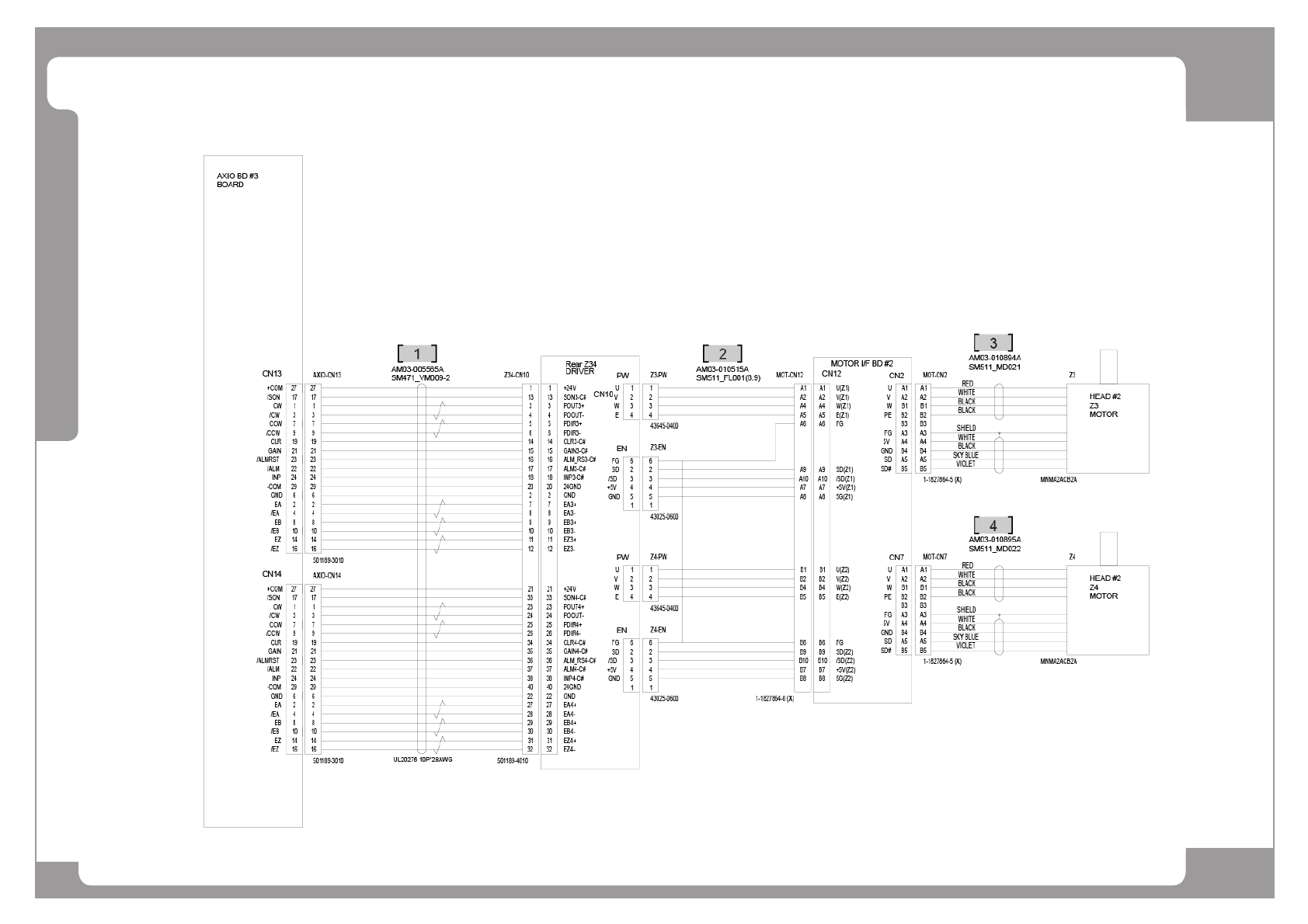

Motor IF Board (11/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515/ CAM03-010515D
3 AM03-010894A CABLE ASSY-Z3_MOTOR 1
4 AM03-010895A CABLE ASSY-Z4_MOTOR 1
