DECAN_F2_TRM(Ver6.2_CS17.02) - 第81页
Page +$1:+$ 77 DECAN F2 Full Dual Conveyor (8/12) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC09-00458 2A BKT_T AIL 4 J70531024A 2 J7253100 2A BUSH_T AIL 4 3 FC09-00458 4A SUPPORT_BKT _L 4 …
Page
+$1:+$
76
DECAN
F2

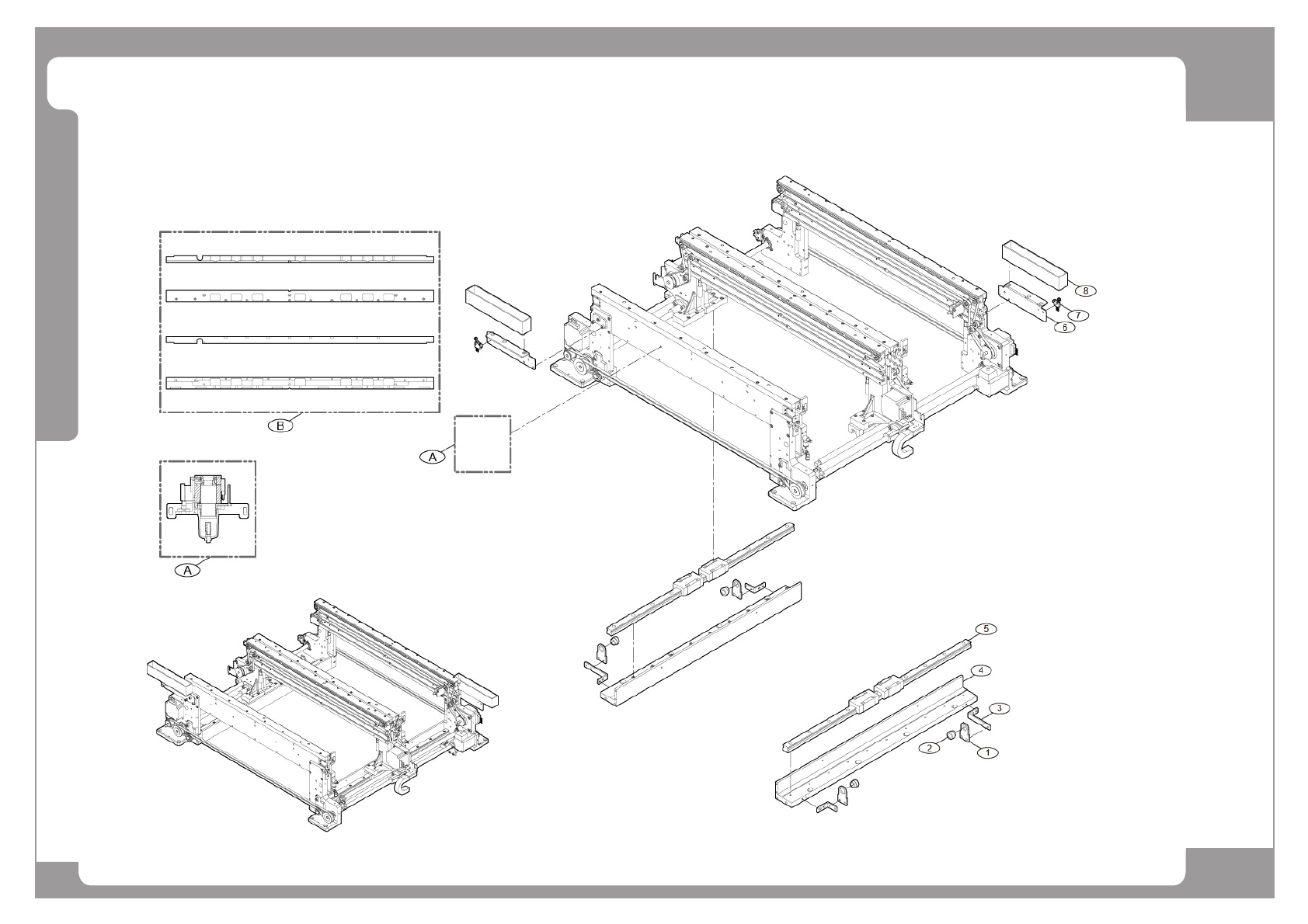

Full Dual Conveyor (8/12)
Page
+$1:+$
77
DECAN
F2
Full Dual Conveyor (8/12)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-004582A BKT_TAIL 4 J70531024A
2 J72531002A BUSH_TAIL 4
3 FC09-004584A SUPPORT_BKT_L 4 J71531006B
4 J71531010C LM_BASE_R 2
5 MC13-900068 LM_GUIDE 2
6 FC29-002694D SUPPORT-DUMPBOX_1 2 FC29-002694B
7 AM03-011145B CABLE ASSY-F_DUMP_BOX_SWITCH 2
8 J72531005C DUMP_BOX 2
A AM03-017756A AIR_SHOWER_ASSY 1 J90531115A OPTION
B J70531016B PCB_GUIDE_RC 1 EDGE FIXER OPTION
Page
+$1:+$
78
DECAN
F2

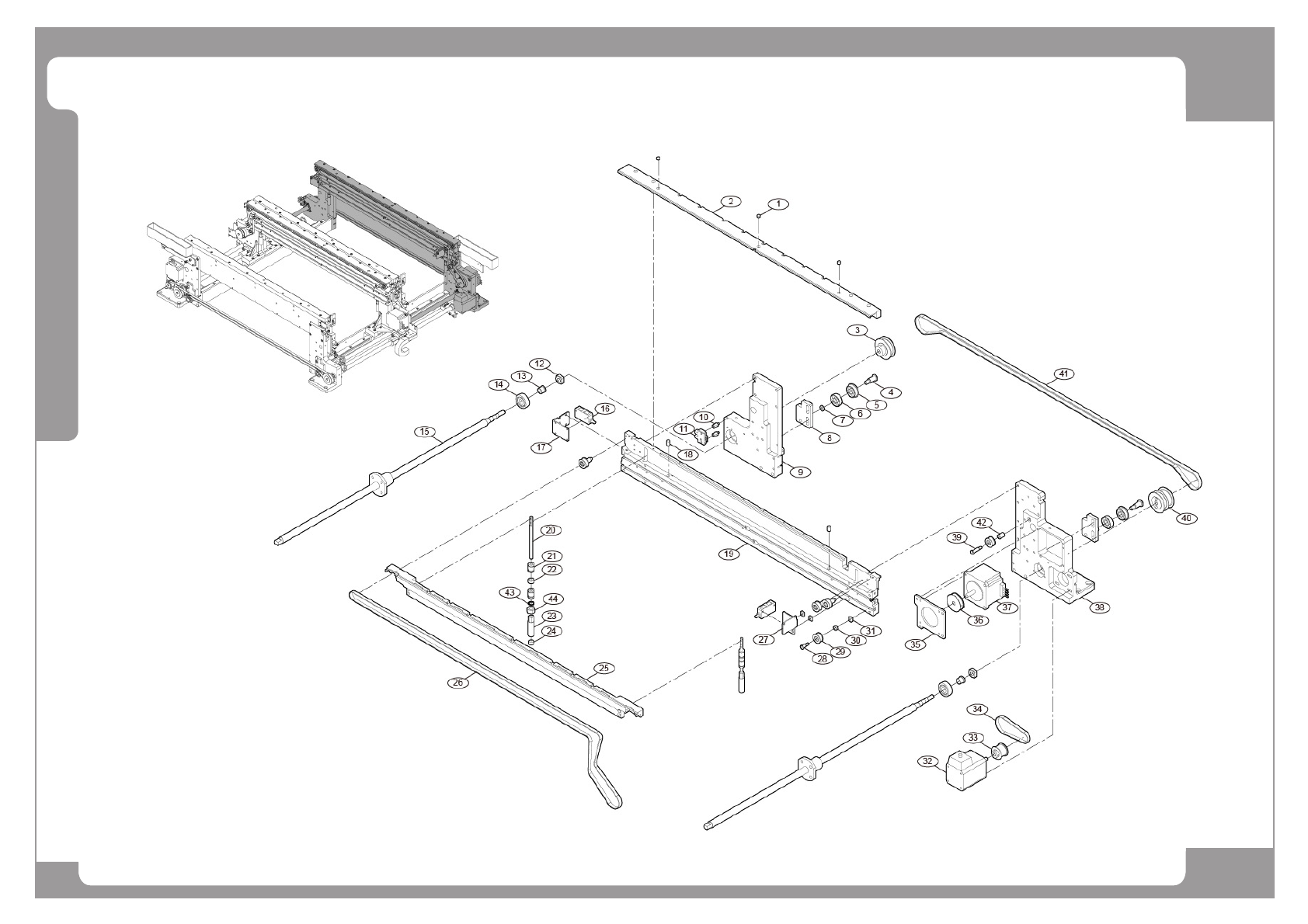

Full Dual Conveyor (9/12)
