8 WF 4 TX-Series V2 Maintenance Grease the guide bearing, clean the linear guide and scale of the X-Axis 6 min 1 / 3 C A U T I O N !  R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e…

100%1 / 74
7 WF 4 TX-Series V2 Maintenance Grease the guide bearing, clean the linear guide and scale of the Y-Axis 6 min 4 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com
19 Repeat steps 13 to 18 twice. 20 Remove the excess grease around the
grease nipple.
21 Repeat steps 13 to 20 for the other grease
nipples at the same gantry.
22 Clean the Y-Axis linear guide. 23 Clean the Y-Axis scale. 24 Repeat steps 12 to 23 on the Y-Axis of the
other gantry.
8 WF 4 TX-Series V2 Maintenance Grease the guide bearing, clean the linear guide and scale of the X-Axis 6 min 1 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com
1 Mount the grease nipple adapter X-Axis. 2 Mount the stroke limiter X-Axis 0.15 gr
side to the grease gun.
3 Move the gantry to a good working posi-
tion.
4 Position the adapter straight onto the lub-
rication nipple.
5 Squeeze the grease gun once. 6 Grease emerges at the grease nipple.
8 WF 4 TX-Series V2 Maintenance Grease the guide bearing, clean the linear guide and scale of the X-Axis 6 min 2 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com

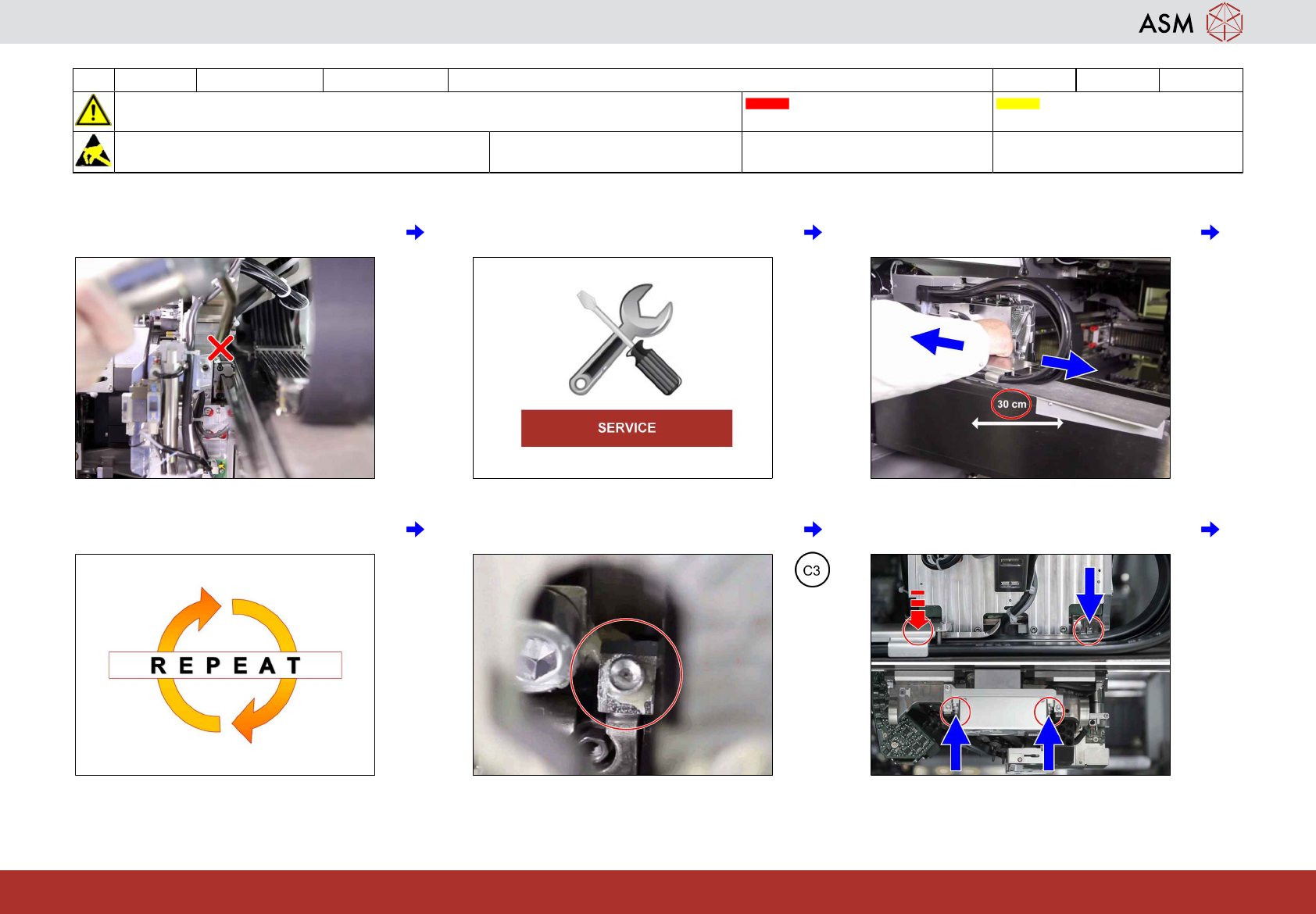

7 If NOT go to step 9. 8 If YES contact service. 9 Move the X-Axis back and forth for about
30 cm.
10 Repeat steps 4 to 9 twice. 11 Remove the excess grease around the
grease nipple.
12 Repeat steps 4 to 11 for the other grease
nipples at the same gantry.
