18 WF 4 TX-Series V2 Maintenance Calibrate the maintained TH 13 min 9 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T5
Wear Part: Consumables:
www.asm-smt.com
49 Open the cover. 50 Remove the calibration tool. 51 Close the cover.
www.asm-smt.com
19 WF 4 TX-Series V2 Maintenance Check the cover fans 0.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com

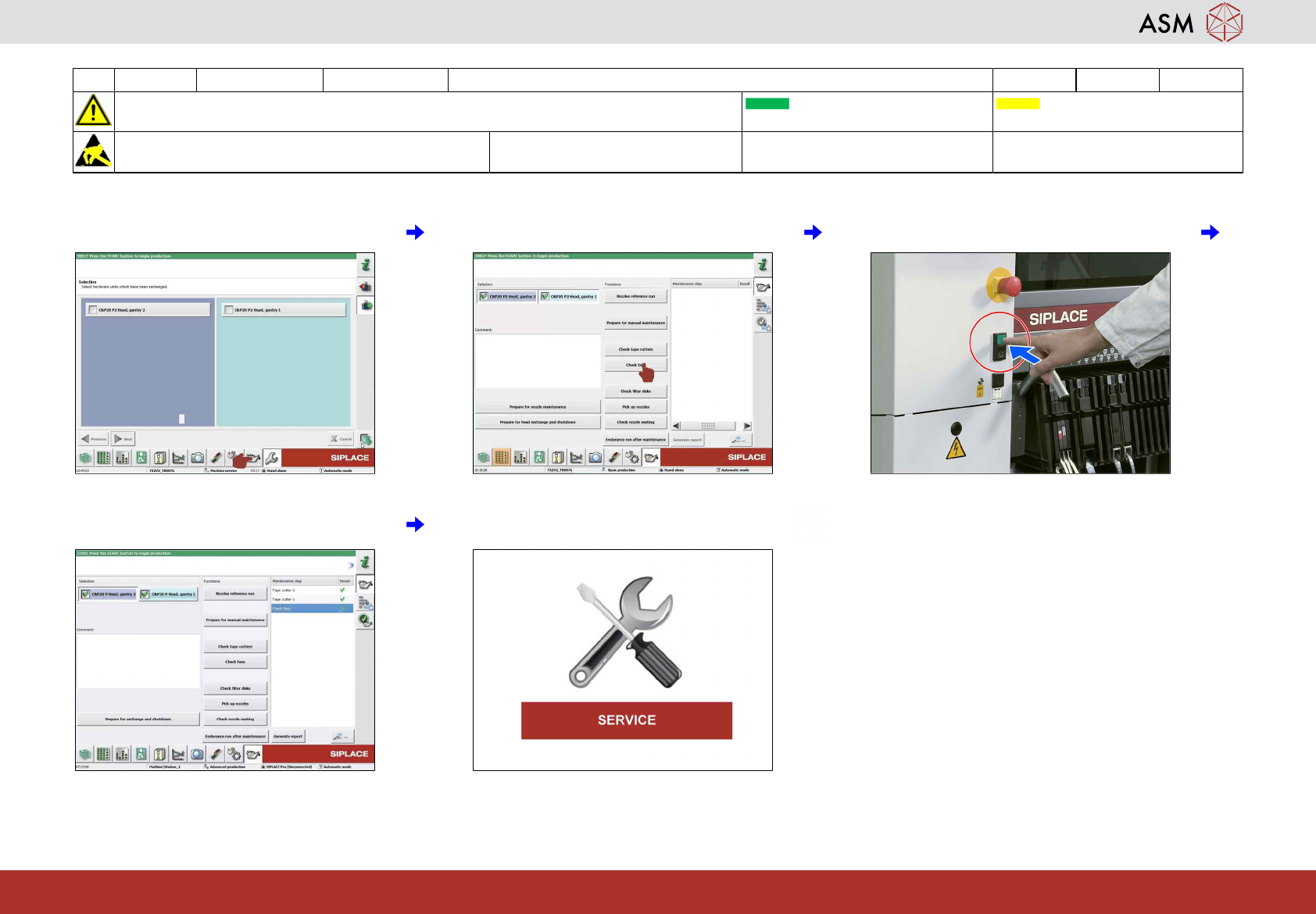

1 Click on "Maintenance". 2 Click on "Check fans". 3 Press the start button.
4 Check if the result is OK (green hook). 5 If the results is NOT OK (red cross) con-
tact service.
