9-11
I･pulse F1 Series
F1 - 56 (A type) 56mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A80-000
INDENTATION LEVER ASSY 1
AS-A24-8159
LG4-M6A8A-000
SUB LEVER ASSY 1 AS-A24-8160
LG4-M7A84-000
REEL SHAFT ASSY 1 AS-A32-8152
KW1-M759N-000 METAL ASSY 1 AS -A56-1153-D
1 K87-M119J-000 THRUST WASHER 3 CTF- 42- 60-L
2 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
3 KW1-M459P-000 METAL PIN 2 CTF-A12- 653-1
4 K87-M459Y-000 PLANE WASHER 1 CTF-A12- 656
5 K87-M539M-000 SPRING 1 CTF-A32- 64-2
6 KW1-M559T-000 METAL 1 FTA-A56-1153-D
7 KW1-M459V-000 REEL FLANGE 1 FTA-A24-1154-D
8 KW1-M559U-000 REEL PLATE 1 FTA-A56-1155-E
9
LG4-M6A8E-000
SUB ARM 1 FTA-A24-8146-B
10
LG4-M7A85-000
REEL SHAFT 1 FTA-A32-8152
11
LG4-M6A8D-000
ARM STUD 1 FTA-A24-8158
12
LG4-M6A81-000
INDENTATION LEVER 1 FTA-A24-8159
13
LG4-M6A8B-000
SUB LEVER 1 FTA-A24-8160
14
LG4-M6A2C-000
SHUTTER DRIVE PIN 1
FTA-A24-8116-1
15
LG4-M6A8G-000
INDEX GEAR 1 FTA-A24-8161
16
LG4-M6A83-000
DRIVE GEAR 1 FTA-A24-8162
17
LG4-M6A82-000
GEAR AXIS 1 FTA-A24-8163
18 K87-M219E-100 ONE-WAY CRUTCH 1 FC-6
19 KW1-M119B-000 ONE-WAY CRUTCH 1 OWC4-13-3.1-L
20 K87-M5596-000 OILLESS BEARING 1 80B-0808
21 KW1-M459R-000 MAGNET 2 φ6-3
22 K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD 4 P2.6MK-5-IB
24 KW1-M45BF-000 SCREW,FLAT HEAD + 2 3MK-16-P
25 K87-M111S-000 SCREW,FLAT HEAD + 1 3MK-6-P
26 KW1-M459S-000 STRAIGHT PIN 2 4N-9.8A
27
28
29
30
9-10
9-11
I･pulse F1 Series
F1 - 56 (A type) 56mm
No. Code No. Parts Name Q'ty Parts No.

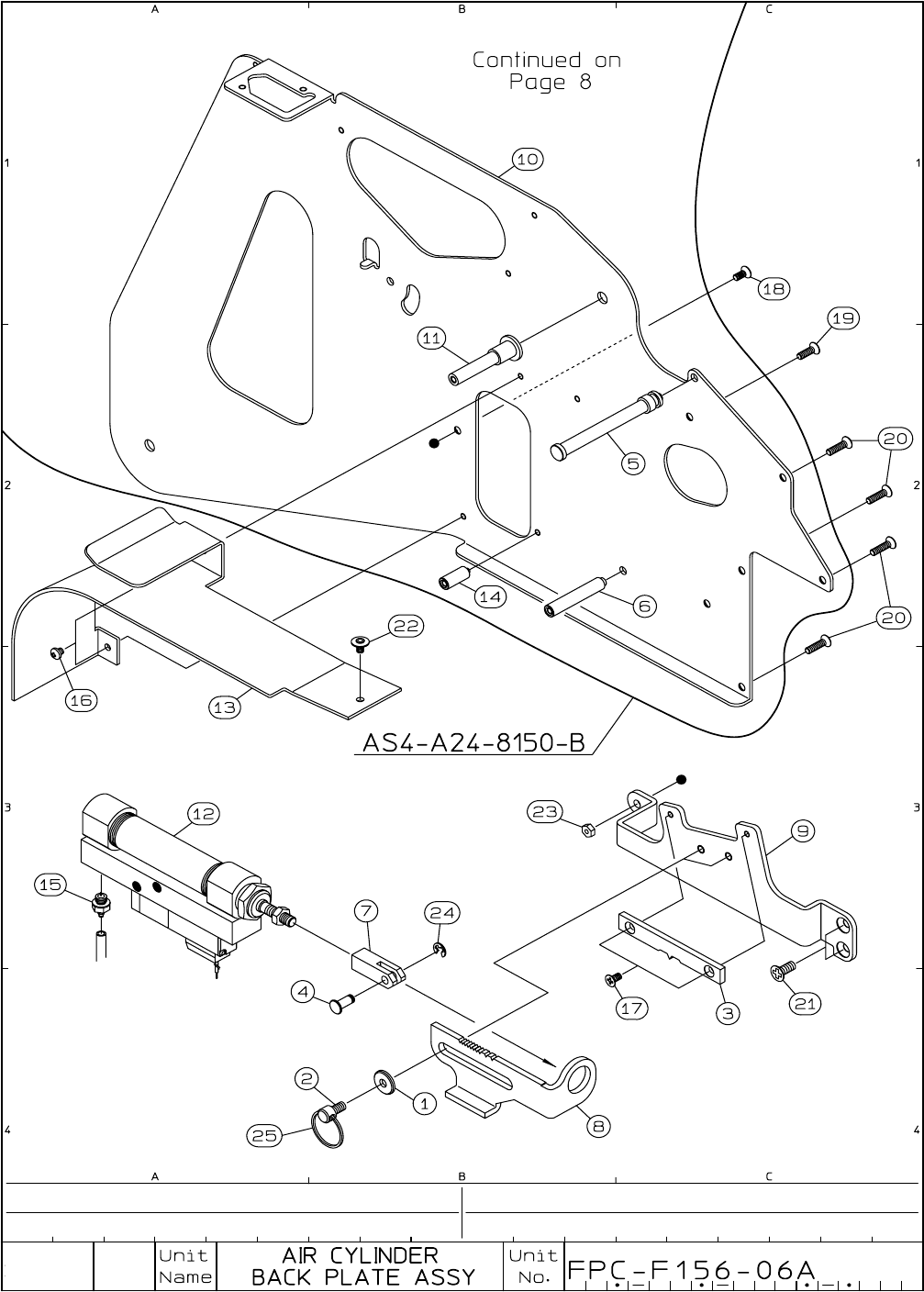

LG4-M9A60-000
BACK PLATE ASSY 1 AS4-A24-8150-B
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4
LG4-M1A72-000
CONNECT PIN 1 FTA-A08-8146
5
LG4-M9A63-000
ROLLER SHAFT 1 FTA-A56-8132-B
6
LG4-M9A64-000
SHAFT 1 FTA-A56-8140
7
LG4-M6A71-000
ROD CONNECTER 1 FTA-A24-8142
8
LG4-M6A73-000
ADJUST PLATE 1 FTA-A24-8148-B
9
LG4-M6A74-000
CYLINDER BRACKET 1 FTA-A24-8149-B
10
LG4-M6A61-000
BACK PLATE 1 FTA-A24-8150-B
11
LG4-M7A62-000
REEL SHAFT 1 FTA-A32-8151
12
LG4-M6AB1-000
SLIM VAL PACK AIR CYLINDER ASSY 1 FTA-A24-8157
13
LG4-M8A6A-000
GUIDE PLATE 1 FTA-A44-8177
14
LG4-M9A66-000
C.B.COVER SHAFT 1 FTA-A56-8141-B
15 K87-M56C1-000 BARB CONNECTOR 1 BF4BU
16
K87-M111N-000
SCREW,PAN HEAD + 2 3MC-3-P
17 K87-M111S-000 SCREW,FLAT HEAD + 2 3MK-6-P
18
LG4-M4ADE-000
SCREW,FLAT HEAD + 1 3MK-7-P
19 KW1-M45BG-000 SCREW,FLAT HEAD + 1 3MK-10-P
20 K87-M11B4-100 SCREW,FLAT HEAD + 4 3MK-12-P
21 LG4-M6ADE-000 SCREW,FLAT HEAD + 2 4MK-10-P
22 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
23 K87-M21BN-000 SCREW NUT 1 3MH
24 K87-M11D7-000 CIRCLIP E 1 E-32
25 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
26
27
28
29
30
31
32
33
9-12
