I･pulse F1 Series
F1-84 (F type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4
LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B
LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2
3 K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
4 LG4-M1A2F-000 SCREW COIL SPRING 1 FTA-A08-8111-1
5 K87-M1121-000 METAL 1 FTA-A08-1103
KW1-M11BS-050 WASHER 1 2 FTA-A08-1103-005B
KJK-M119W-000 WASHER 2 FTA-A08-1464-005
7 K87-M1122-000 RIVET 3 FTA-A08-1103-1
8 KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
9 K87-M1124-000 RATCHET 1 FTA-A08-1107-P4
10 K87-M112G-100 RACKING POLE 1 FTA-A08-1111
11 LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108
12 LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
13 LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110
14 LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112
15 LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2
16 LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B
17 K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
18
19
20
21
22
23
24
25
26
27
28
29
※1…F1-84-044596F～
6※1

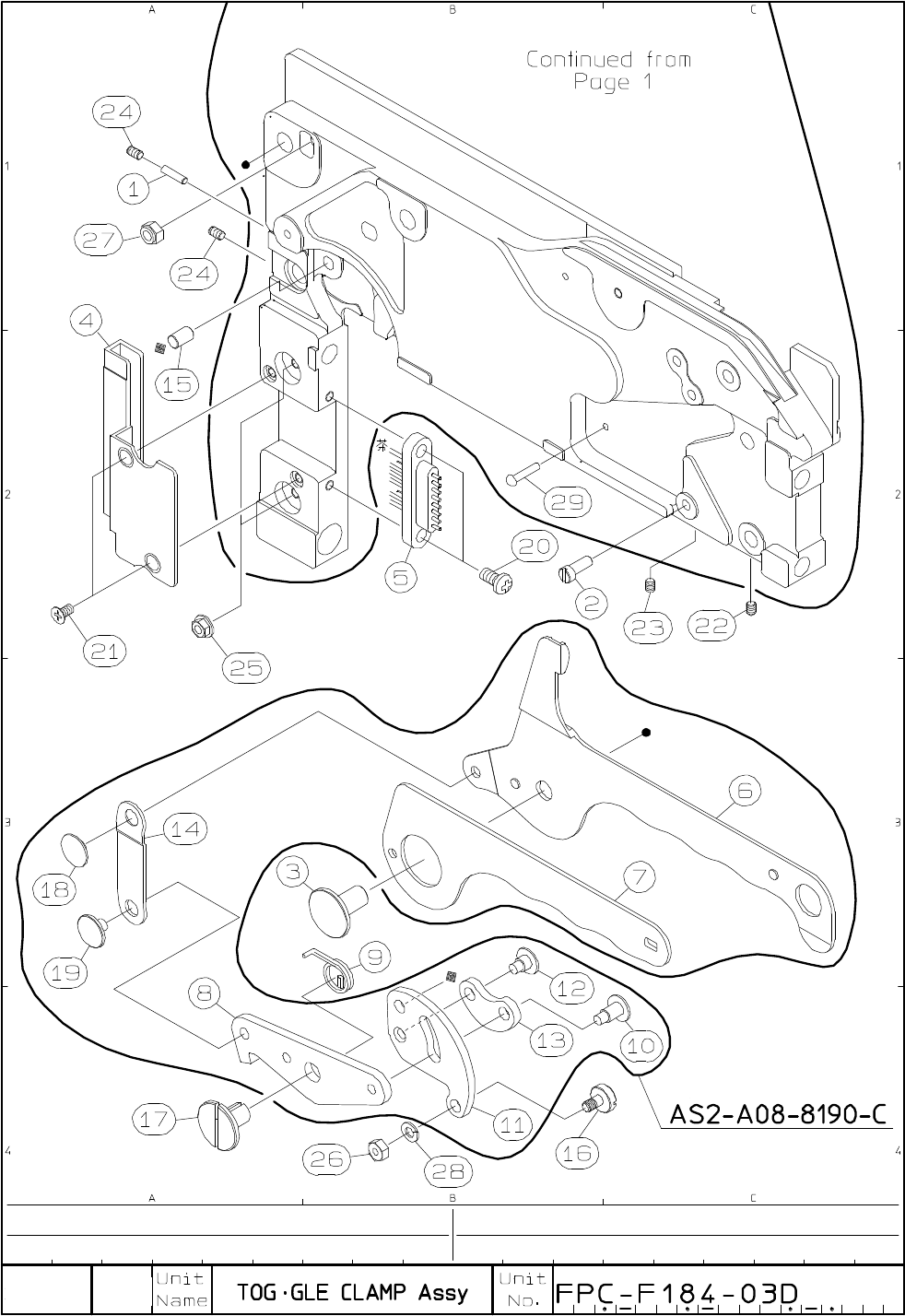

I･pulse F1 Series
F1-84 (F type)
P 3
Code No. Parts Name Q'ty Parts No.
LG4-M1A30-021 HOLD LEVER ASSY 1 AS2-A08-8190-C
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A17-000 STOPPER PIN 1 FTA-A08-8113
3 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
4 LG4-M1A1A-001 COVER PLATE 1 FTA-A08-8149-C
5 LG4-M1AA2-001 SP.CONNECTOR ASSY 1 FTA-A08-8151-5B
6 LG4-M1A31-010 HOLD LEVER M 1 FTA-A08-8190-C
7 LG4-M1A32-000 HOLD LEVER S 1 FTA-A08-8190-1B
8 LG4-M1A34-001 CLAMP LEVER 1 FTA-A08-8191-C
9 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
10 LG4-M1A3A-001 HINGE PIN 1 1 FTA-A08-8191-1C
11 LG4-M1A35-001 CLANK ARM 1 FTA-A08-8192-B
12 LG4-M1A3B-000 HINGE PIN 2 1 FTA-A08-8192-1
13 LG4-M1A36-000 ARM 1 FTA-A08-8193
14 LG4-M1A33-000 LINK PLATE 1 FTA-A08-8194
15 LG4-M1A3L-000 CLANK ARM AXIS PIN 1 FTA-A08-8195
16 LG4-M1A37-010 ADJUST CLAMP PIN 1 FTA-A08-8196
17 LG4-M1A3K-001 CLAMP LEVER AXIS PIN 1 FTA-A08-8197-B
18 LG4-M1A38-000 LINK PIN T 1 FTA-A08-8198
19 LG4-M1A39-000 LINK PIN U 1 FTA-A08-8199
20 LG4-M1ADC-000 SCREW,PAN HEAD+ 2 3MC-7-P
21 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
22 K87-M111T-000 SCREW,SET 1 3MY-3-F
23 K87-M111X-000 SCREW,SET 1 3MY-4-F
24 K87-M111R-000 SCREW,SET 2 3MY-5-F
25 K87-M111U-000 SCREW FLANGE NUT 2 3MH-FS
26 K87-M21BN-000 SCREW NUT 1 3MH-P
27 LG4-M1ADH-000 U-NUT 1 3MH-U-P
28 K87-M21BM-000 SPRING LOCK WASHER 1 3MU-P
29 K87-M1115-000 CIRCULAR RIVET 1 2-10
