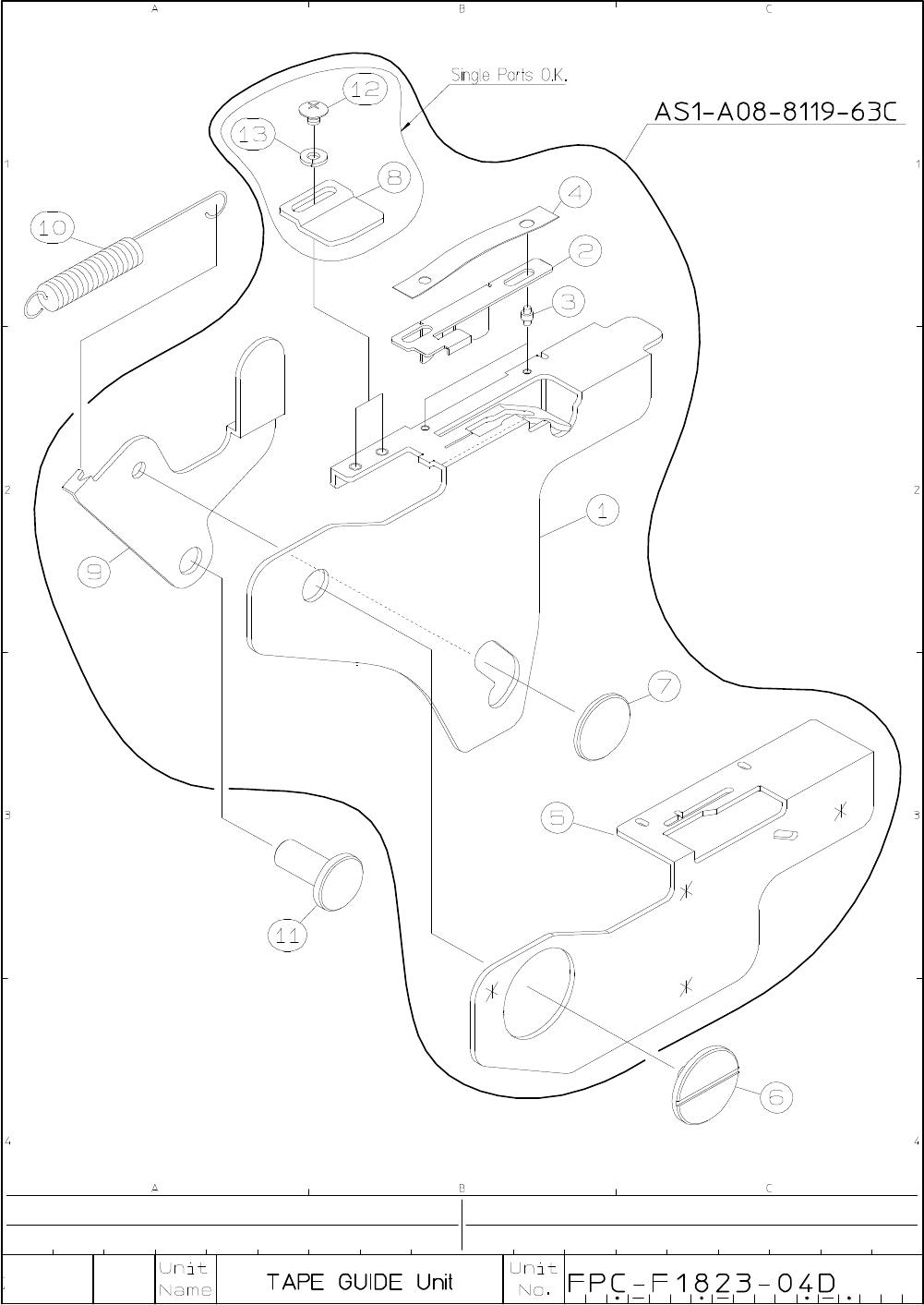

I･pulse F1 Series F1-823 (F type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M3A40-020 T.G. PLATE ASSY 1 AS1-A08-8119-63C 1 LG4-M3A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-63C 2 LG4-M3A42-000 SHUTTER PLATE 1 FTA-A…
I･pulse F1 Series
F1-823 (F type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M3A40-020 T.G. PLATE ASSY 1 AS1-A08-8119-63C
1
LG4-M3A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-63C
2
LG4-M3A42-000 SHUTTER PLATE 1 FTA-A08-8120-63
3
LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4 LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5
LG4-M2A43-500 SHUTTER GUARD PLATE 1 FTA-E08-8523-05
6
LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8
LG4-M3A49-000 ADJUST PLATE 1 FTA-A08-8126-63
9
LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
10 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
11
LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
12
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
13
LG4-M3AD3-000 SPRING LOCK WASHER 2 2MU-P
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
