Page
4
SAMSUNG TECHWIN

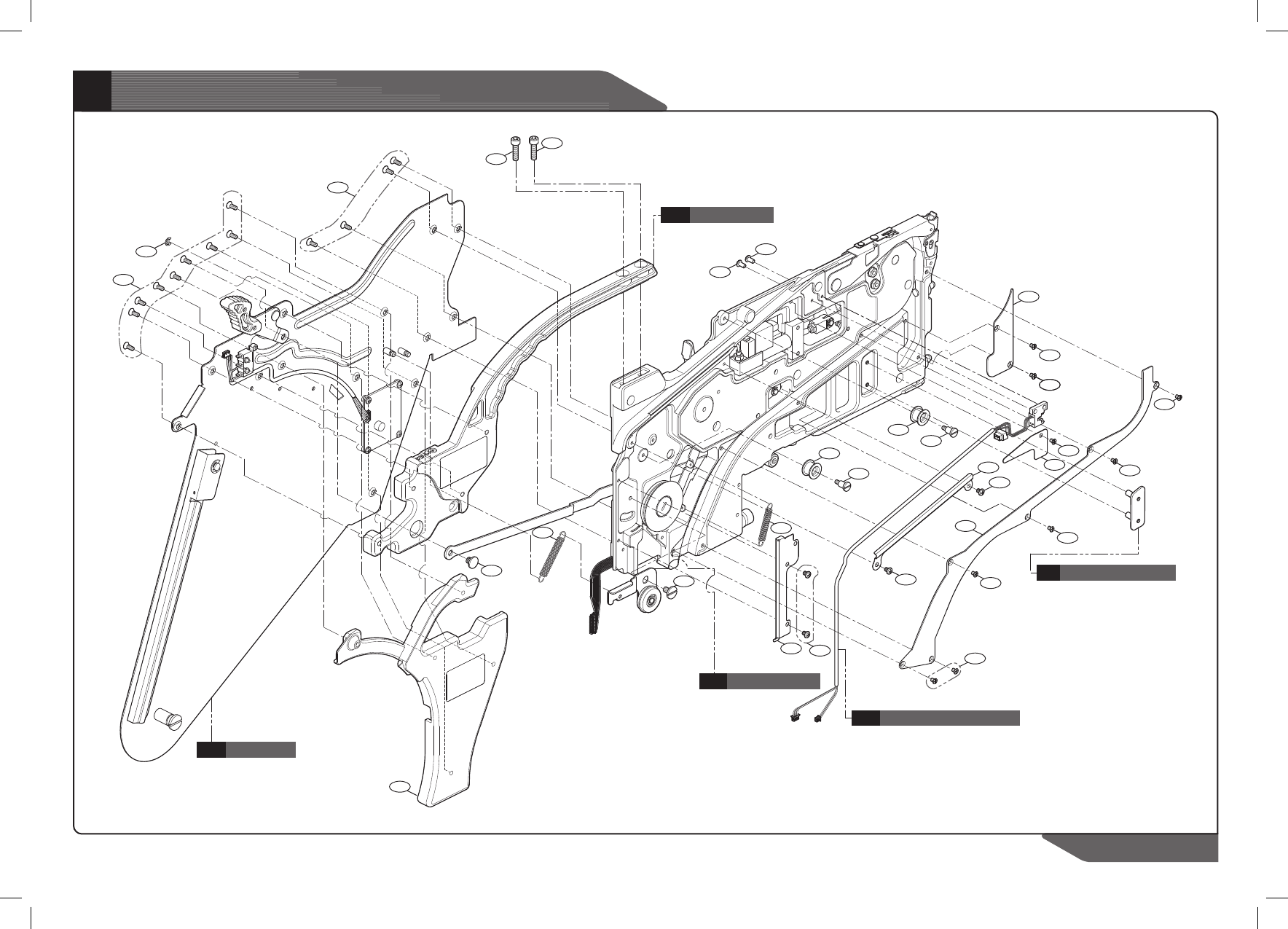

8mm SMN Tape Feeder (Rear-L)
Indexing Sensor Ass'y
A-14
Reel Ass'y
A-10
Handle Ass'y
A-11
Push Button Ass'y
A-8
A-13
Forming Ass'y
55
55
11
11
12
12
3434
34
37
19
44
44
40
34
39
34
34
34
34
34
64
44
17
23
65
56
56
30
21
48
46
49
Page
5
SAMSUNG TECHWIN
8mm SMN Tape Feeder
Part List
0402 2P 4P 2P-L 4P-L
1 ..2 J70650948B LOCATION-FLANGE 1 1 1 1 1 ○ ○ SM1-MF08-006R1
2 ..2 J7065952A Y-ECCENTRIC-PIN 1 1 1 1 1 ○ ○ SM1-MF08-009
3 ..2 J7065953A STOP-PAWL 1 1 1 1 1 ○ ○ SM1-MF08-010
4 ..2 J72650152B DRAIN-GEAR 1 1 1 1 1 ○ ○ SM1-MF08-011R2
5 ..2 J70650954C DRAIN SHAFT-1 1 1 1 1 1 ○ ○ SM1-MF08-012R2
6 ..2 J70652570A DRAIN SHAFT-2 1 1 1 1 1 ○ ○ SM1-MF08-012-1
7 ..2 J7065959A LIMIT-SHAFT 1 1 1 1 1 ○ ○ SM1-MF08-017
8 ..2 J70650967C LOCKING-LIMIT 1 1 1 1 1 ○ ○ SM1-MF08-025R2
9 ..2 J70650969B
SWING-LINK-SHAFT 1 1 1 1 1 ○ ○ SM1-MF08-027R1
10 ..2 J7065972A SPROCKET-SHAFT 1 1 1 1 1 ○ ○ SM1-MF08-031
11 ..2 J72650154B VINYL-ROLLER 2 2 2 2 2 ○ ○ SM1-MF08-036R1
12 ..2 J70650976B VINYL-ROLLER-SHAFT 2 2 2 2 2 ○ ○ SM1-MF08-037R1
13 ..2 J7065977A TAPE GUIDE SHAFT1 0 1 1 1 1 ○ ○ SM1-MF08-038R1
..2 J70661022A T-GUIDE SHAFT1 0402 1 0 0 0 0 ○ ○ SM1-MF08-038-1
14 ..2 J70650978C INSTALL-GUIDE1 1 1 1 1 1 ○ ○ SM1-MF08-040R2
15 ..2 J7065980A HANGER-SHAFT-GUIDE 1 1 1 1 1 ○ ○ SM1-MF08-042
16 ..2 J70
65981A PROBER-COVER 1 1 1 1 1 ○ ○ SM1-MF08-043
17 ..2 J7065982A CABLE-COVER1 1 1 1 1 1 ○ ○ SM1-MF08-044
18 ..2 J70650988B LINK-SHAFT-COVER 2 2 2 2 2 ○ ○ SM1-MF08-051R1
19 ..2 J7065989A CABLE-COVER2 1 1 1 1 1 ○ ○ SM1-MF08-052
20 ..2 J70650990B CYL-BKT-SHAFT 1 1 1 1 1 ○ ○ SM1-MF08-053R1
21 ..2 J72650169D PCB-COVER 1 1 1 1 1 ○ ○ SM1-MF08-054R3
22 ..2 J7065992B BOTTOM-LOC-PIN 1 1 1 1 1 ○ ○ SM1-MF08-056R1
23 ..2 J70650993B DRAIN-BKT-SHAFT 1 1 1 1 1 ○ ○ SM1-MF08-057R1
24 ..2 J70650994B TOGGLE STOPP
ER 2 2 2 2 2 ○ ○ SM1-MF08-058R1
25 ..2 J70650995B TOGGLE SPG PIN 2 2 2 2 2 ○ ○ SM1-MF08-059R1
IT
Q'TY
ReferenceNO. LEVEL PART NO. PART NAME TYPE
Non
-IT
Page
6
SAMSUNG TECHWIN
8mm SMN Tape Feeder
Part List
0402 2P 4P 2P-L 4P-L
26 ..2 J70660001C T-LINK4-SHAFT1 1 1 1 1 1 ○ ○ SM1-MF08-064R2
27 ..2 J70660008C T-LINK1-SHAFT1 1 1 1 1 1 ○ ○ SM1-MF08-071R2
28 ..2 J7066014A LOCKER-HINGE 2 2 2 2 2 ○ ○ SM1-MF08-076
30 ..2 J70660022B T-LINK5-SHAFT1 1 1 1 1 1 ○ ○ SM1-MF08-088R1
31 ..2 J7066024B COUPLER BKT1 1 1 1 1 1 ○ ○ SM1-MF08-090R1
32 ..2 J7066026A T-COVER 1 1 1 1 1 ○ ○ SM1-MF08-092
33 ..2 J7265159A SP-WASHER 3 3 3 3 3 ○ ○ SM1-MF08-104
34 ..2 J7066047A FLAT-HEAD-CAP-SCREW-H4 4 13 13 13 13 13 ○ ○ SM1-MF08-132
35 ..2
J71651332A MAIN FRAME 0 1 1 1 1 ○ ○ SM1-MF08-300
..2 GD03-000057A MAIN FRAME 0402 1 0 0 0 0 ○ ○ SM1-MF08-300-1
36 ..2 J70652410A DUMP BOX COVER 1 1 1 1 1 ○ ○ SM1-MF08-301
37 ..2 J72651139A CLEAR COVER 1 1 1 1 1 ○ ○ SM1-MF08-302
38 ..2 J70652174A X ECCENTRIC PIN 1 1 1 1 1 ○ ○ SM1-MF08-305
39 ..2 J70652409A CABLE COVER-3 1 1 1 1 1 ○ ○ SM1-MF08-306
40 ..2 J70652415A REEL COVER 1 1 1 1 1 ○ ○ SM1-MF08-313
41 ..2 J6601132A ONEWAY-BEARING-8 1 1 1 1 1 ○ ○ OWC8-16-5.5-L
42 ..2 J6711249A COUPLER-PLUG 1 1 1 1 1 ○ ○ KS-4-
M5-SA34268KR
43 ..2 J1301161 FLAT HEAD CAP SCREW 1 1 1 1 1 ○ ○ M2*3(SUS)
44 ..2 J6004300350 BUTTON-HEAD-CAP-SCREW-M3X3 4 4 4 4 4 ○ ○ M3*3 (SUS)
45 ..2 J6004300850 BUTTON-HEAD-CAP-SCREW-M3X8 2 2 2 2 2 ○ ○ M3*8 (SUS)
46 ..2 J1301023 E RING3 1 1 1 1 1 ○ ○ DIA3 (SUS)
47 ..2 J1301149 E RING4 1 1 1 1 1 ○ ○ DIA4 (SUS)
48 ..2 J1301448 FLAT HEAD CAP SCREW 7 7 7 4 4 ○ ○ M3*6 (SUS)
49 ..2 J6006300850 FLAT-HEAD-CAP-SCREW-M3X8 9 9 9 9 9 ○ ○ M3*8 (SUS)
50 ..2 J6012300650 TRUSS SCREW 2 2 2 2 2 ○ ○ M4*12 (S
US)
51 ..2 J6007301238 FLAT-HEAD-SOCKET-SCREW M3X12 3 3 3 3 3 ○ ○ M3*12 (BL/Zn)
IT
Q'TY
ReferenceNO. LEVEL PART NO. PART NAME TYPE
Non
-IT
