IPC-TM-650
Page 2 of 11
Number
2.5.5.5.1
Subject
Stripline
Test
for
Complex
Relative
Permittivity
of
Circuit
Board
Materials
to
14
GHz
Date
3/98
Revision
3.0
Test
Specimen
Specimen
length
corresponds
to
an
available
fixture
length
L.
Longer
L
values
enable
lower
mini¬
mum
resonant
frequencies
to
be
achieved.
L
is
also
the
length
dimension
of
the
copper
plates
described
in
5.0.
Four
types
of
specimens
can
be
used
for
this
method,
as
shown
in
Figure
1.
Steel
bar
Copper
plate
0
o
o
o
Specimen
stack
—
-
—
=
.=
Copper
plate
Steel
bar
0
Type
A
0
Type
E
0
Type
C
0
Type
D
I
PC-1
2555
1-1
For
types
B,
C,
and
D,
the
specimen
card
should
first
be
pre¬
pared
with
about
5
mm
or
more
excess
length.
Wide
pressure
sensitive
adhesive
(PSA)
tape
can
be
used
to
mask
the
ground
plane
side,
and
a
narrow
PSA
tape
can
be
used
to
mask
for
the
centered
strip
before
etching
off
exposed
cop¬
per.
Trimming
the
excess
length
after
etching
removes
any
undercut
areas
at
the
ends.
Trimming
to
length
should
be
done
in
a
way
that
leaves
the
end
surfaces
with
sharp
edges
and
no
conductor
edge
distortion
or
smears
over
that
surface.
Sanding
specimens
clamped
between
paper-phenolic
lami¬
nate
drill-entry
boards
is
an
advised
method
for
finishing
the
end
surfaces.
Type
A
specimens
with
untreated
smooth
copper
foil
will
pro¬
vide
the
most
accurate
values
for
tan
6,
but
will
tend
to
have
a
low
bias
on
£r.
Type
0
eliminates
all
clamped
interfaces
with
the
air
layer
between
the
dielectric
and
the
conductor
to
give
the
most
accurate
er
value
but,
with
the
copper
surfaces
treated
for
adhesion,
tends
to
have
a
high
bias
on
dissipation
factor.
Type
D
gives
a
good
measure
of
practical
performance
in
an
application.
3.1
Type
A
Two
25.4
mm
wide
by
L
long
cards
etched
free
of
copper
cladding.
These
are
placed
on
either
side
of
a
cen¬
ter
strip
of
smooth
copper
foil
of
specified
thickness
and
width
and
will
be
assembled
between
25.4
mm
wide
by
L
long
cop¬
per
foil
cards.
3.2
Type
B
One
25.4
mm
wide
by
L
long
card
with
clad
copper
on
one
side
and
copper
etched
off
the
other
side,
and
a
second
card
of
matching
size
with
clad
copper
on
one
side
and
copper
etched
off
the
other
side
except
for
a
centered
strip
of
specified
width
extending
to
both
ends
of
the
card.
The
copper
free
surface
of
the
first
card
is
assembled
against
the
etched
strip
of
the
other
to
form
the
stripline
resonator.
3.3
Type
C
Two
25.4
mm
wide
by
L
long
cards
with
clad
copper
on
one
side
and
copper
etched
off
the
other
side
except
for
a
centered
strip
of
specified
width
extending
to
both
ends
of
the
card.
The
etched
strip
surfaces
of
both
cards
face
together
to
form
the
stripline
resonator.
3.4
Type
D
Oversize
cards
similar
to
type
B
are
bonded
together
with
a
selected
bonding
film
and
then
trimmed
to
size
to
form
the
stripline
resonator
assembly.
This
could
be
a
test
coupon
cut
from
a
bonded
stripline
circuit
board
assembly.
4.0
Suggested
Electronic
Apparatus
The
principal
com¬
ponents
required
for
the
test
setup
consist
of
the
test
fixture
described
in
5.0
combined
with
the
components
described
in
4.1
,
Figure
2,
Type
A
and
Type
B,
or
preferably
with
the
sys¬
tem
in
4.2,
Figure
2,
Type
C.
4.1
A
Test
Setup
for
Computer
Automation
of
Data
This
requires
a
microwave
signal
source,
an
accurate
means
of
measuring
the
signal
frequency,
an
accurate
means
for
detecting
power
level,
and
an
accurate
method
of
determin¬
ing
frequency
values
above
and
below
the
resonant
frequency
at
the
half-power
level
for
the
test
fixture
loaded
with
the
specimen.
4.1.1
The
following
components
or
equivalent,
properly
interconnected,
can
be
used
most
effectively
with
a
computer
control
program
for
automated
testing.
•
Sweep
Frequency
Generator
Mainframe
HP8350B
•
RF
Plug-In,
0.01
to
20
GHz
HP83592A
•
Power
Splitter
HP1
1
667A
•
Automatic
Frequency
Counter
HP5343A
•
Source
Synchronizer
HP5344A
Obtained
as
an
interconnected
assembly
with
the
counter.
•
Coaxial
cables
and
adapters

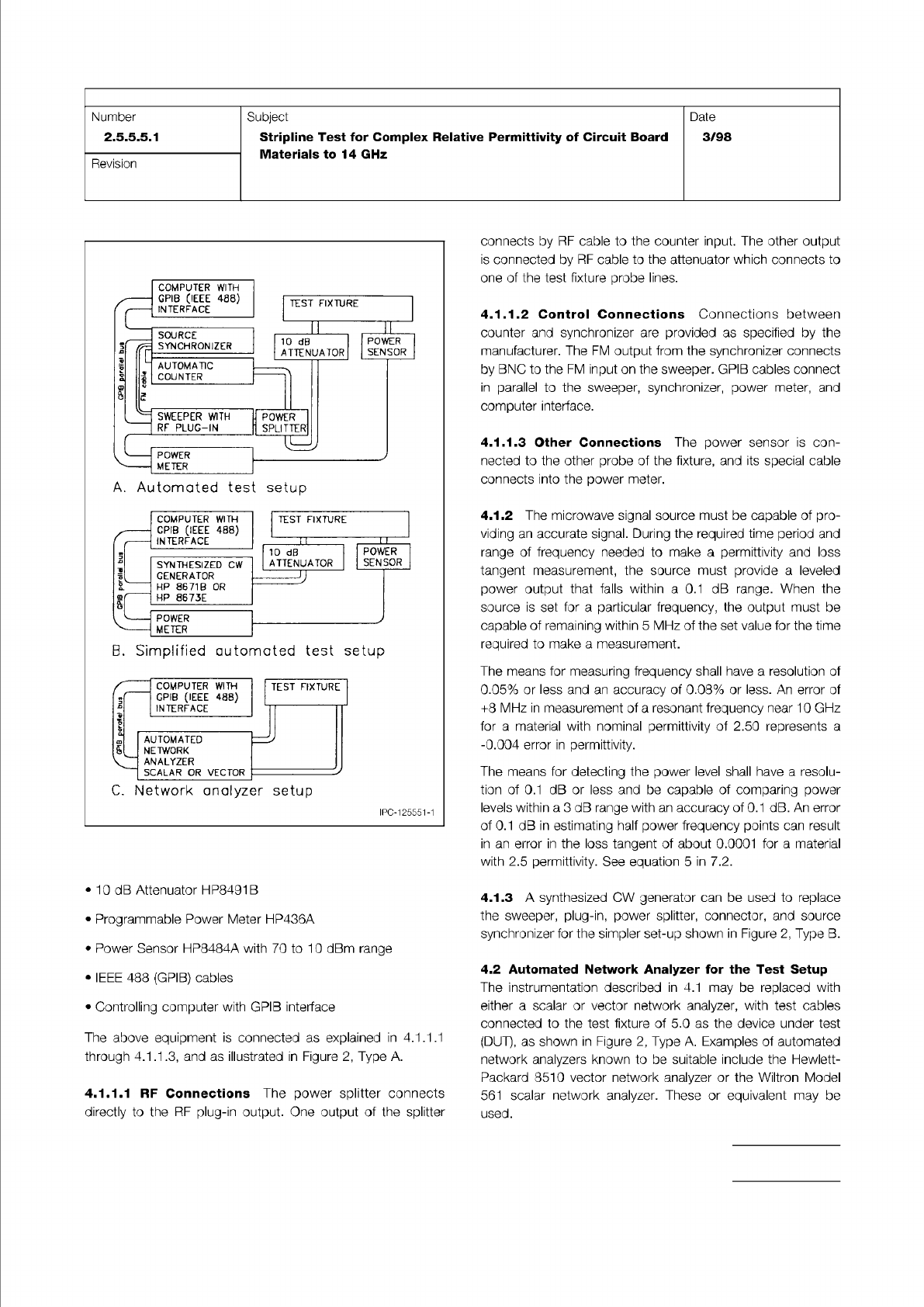

Figure 2 Schematic Drawings of Instrumentation
