IPC-TM-650
Page 23 of 23
Number
2.5.5.7
Subject
Characteristic
Impedance
of
Lines
on
Printed
Boards
by
TDR
Date
03/04
Revision
A
6.3.6.2
Probes
for
Coupled-Signal-Line
(Differential)
Transmission
Line
Measurements
The
probe
consider¬
ations
described
in
4.3.3
apply
for
probes
used
in
differential
transmission
line
measurements.
However,
the
necessity
to
simultaneously
probe
two
signal
lines
and
one
or
two
refer¬
ence
plane
contacts
makes
differential
probing
more
difficult
than
probing
single
signal
line
structures.
In
a
PCB
manufac¬
turing
environment,
the
use
of
two
probes
that
were
previ¬
ously
used
for
single-ended
measurements
may
not
be
pos¬
sible.
This
is
because
the
operator
is
required
to
use
both
hands
for
probing,
which
leaves
them
unable
to
operate
the
instrument.
Contact
your
instrument
manufacturer
for
their
probing
solutions
and
advice.
Probes
from
one
manufacturer
can
also
be
used
with
another
manufacturer's
TDR
if
the
impedance
values
and
connectors
are
compatible.
6.4
Adjustable
Measurement
Parameters
6.4.1
Sampling
Interval
(Point
Spacing)
The
temporal
resolution
of
the
TDR
unit
is
an
issue
only
if
it
impacts
the
duration
of
the
constant-
valued
regions
in
the
TDR
waveform
(see
4.1.2)
that
are
used
for
computing
Zo.
The
temporal
reso¬
lution
of
the
TDR
is
affected
by
the
transition
duration
of
the
TDR
step
response,
the
transition
duration
of
the
step
response
of
all
intervening
electrical
components
(connectors,
cables,
adapters),
measurement
jitter,
the
interval
between
sampling
instances,
and
timebase
errors.
For
typical
TDR
measurements,
timebase
errors
and
sampling
intervals
should
not
be
an
issue
(both
are
or
can
be
made
to
be
less
than
1
0
ps).
The
effect
of
measurement
jitter
can
be
modeled
by
con¬
volving
the
jitter
distribution
with
the
TDR
step
response
to
yield
an
effective
TDR
step
response.
The
effect
of
jitter
on
the
bandwidth
of
the
TDR
measurement
can
be
assessed
from
the
jitter
spectrum,
which
can
be
described
by:
j(/)
=
e-2(gf)2
where:
J
is
the
jitter
spectrum,
f
is
frequency,
and
a
is
the
rms
jitter
value
If
the
effective
step
response
impacts
the
duration
of
the
mea¬
surement
zones,
then
jitter
must
be
reduced.
If
the
jitter
has
an
observable
effect,
then
the
user
must
reduce
the
duration
of
the
measurement
zone
(by
increasing
the
lower
limit
and
decreasing
the
upper
limit,
(see
5.1.3)
from
which
Zo
is
com¬
puted
or
reduce
the
system
jitter.
Reduction
in
the
duration
of
the
measurement
zone
may
introduce
a
bias
in
the
voltage
or
reflection
coefficient
values
and
this
affect
the
computed
value
of
Zo.
If
the
rms
jitter
value
is
less
than
20
%
of
the
transition
duration
of
the
TDR
step
response,
then
the
jitter
is
small
and
can
be
ignored.
For
typical
TDR
systems,
however,
rms
jitter
is
less
than
10
ps
and
will
not
affect
the
Zo
measurements.
Similarly,
the
effect
of
cables,
connectors,
and
adapters
on
the
measurement
can
be
modeled
by
convolving
their
step
responses
with
that
of
the
TDR
unit.
If
the
transition
duration
of
this
new
step
response
meets
the
requirements
of
4.1.2,
then
the
performance
of
the
cables,
connectors,
and
adapters
is
adequate.
6.4.2
Waveform
Averaging
and
Number
of
Samples
in
the
Measurement
Zone
Waveform
averaging
reduces
the
effective
noise
level
of
the
measurement
by
M^72,
where
M
is
the
number
of
acquired
waveforms
(typically,
8
M
256).
Consequently,
averaging
can
reduce
measurement
noise.
This
reduction
is
limited
by
the
number
of
bits
of
the
analog-
to-digital
converter
of
the
TDR
system.
However,
if
the
TDR-
system
exhibits
drift
in
the
timebase,
averaging
too
many
waveforms
may
result
in
a
reduction
of
tsys
and
a
commensu¬
rate
reduction
in
the
temporal/spatial
resolution
of
the
TDR.
The
number
of
samples
(data
points)
in
the
measurement
zone
will
affect
the
standard
deviation
of
the
computed
value
of
Zo
because
this
value
is
the
result
of
averaging
all
the
samples
in
the
measurement
zone.
Therefore,
the
more
samples
in
the
measurement
zone,
the
smaller
will
be
the
standard
deviation
of
the
computed
Zo
value.
6.4.3
Selection
of
Constant-Valued
Region
(Measure¬
ment
Zone)
Inconsistency
in
defining
where
the
constant¬
valued
region
is
located
in
the
TDR
waveform
may
cause
a
significant
but
unknown
error
than
can
exceed
5.0
Q.
Speci¬
fying
the
measurement
zone
improves
measurement
repeat¬
ability
of
the
same
or
similar
samples,
and
this
can
improve
assessment
of
design
and
fabrication
quality
and
vendor
capability.
This
measurement
zone
should
be
far
enough
away
from
the
launch
and
the
open
end
of
the
transmission
line
under
test
to
minimize
the
effects
of
these
discontinuities.
The
measurement
zone
is
to
be
given
as
the
separation
between
two
positions
on
the
transmission
line,
and
these
positions
are
to
be
given
as
a
percentage
of
the
transmission
line
length
referenced
from
the
TDR/transmission
line
inter¬
face.
The
measurement
zone
is
defined
in
5.1
.3.
6.5
Acknowledgments
The
majority
of
the
figures
used
herein
were
provided
by
Mr.
Bryan
C.
Parker
of
the
Introbot-
ics
Corporation,
Albuquerque,
NM.
HP 4291A-5 Product Note
HP Application Note 380-1
The Institute for Interconnecting and Packaging Electronic Circuits
2215 Sanders Road • Northbrook, IL 60062
Material in this Test Methods Manual was voluntarily established by Technical Committees of the IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by the IPC.

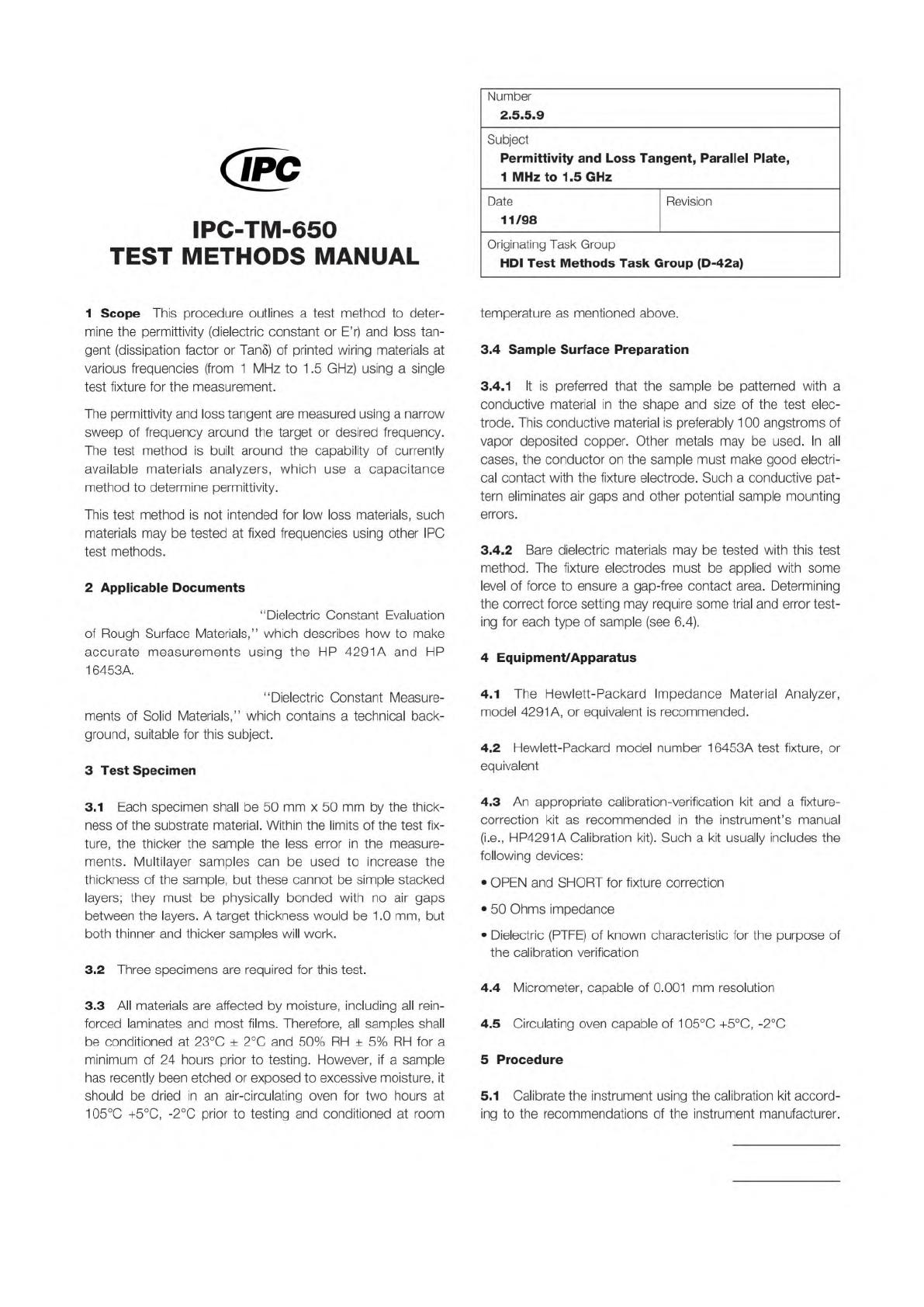

Page 1 of 5
IPC-TM-650
TEST
METHODS
MANUAL
1
Scope
This
procedure
outlines
a
test
method
to
deter¬
mine
the
permittivity
(dielectric
constant
or
ET)
and
loss
tan¬
gent
(dissipation
factor
or
Tan8)
of
printed
wiring
materials
at
various
frequencies
(from
1
MHz
to
1
.5
GHz)
using
a
single
test
fixture
for
the
measurement.
The
permittivity
and
loss
tangent
are
measured
using
a
narrow
sweep
of
frequency
around
the
target
or
desired
frequency.
The
test
method
is
built
around
the
capability
of
currently
available
materials
analyzers,
which
use
a
capacitance
method
to
determine
permittivity.
This
test
method
is
not
intended
for
low
loss
materials,
such
materials
may
be
tested
at
fixed
frequencies
using
other
I
PC
test
methods.
2
Applicable
Documents
"Dielectric
Constant
Evaluation
of
Rough
Surface
Materials,"
which
describes
how
to
make
accurate
measurements
using
the
HP
4291
A
and
HP
16453A.
“Dielectric
Constant
Measure¬
ments
of
Solid
Materials,"
which
contains
a
technical
back¬
ground,
suitable
for
this
subject.
3
Test
Specimen
3.1
Each
specimen
shall
be
50
mm
x
50
mm
by
the
thick¬
ness
of
the
substrate
material.
Within
the
limits
of
the
test
fix¬
ture,
the
thicker
the
sample
the
less
error
in
the
measure¬
ments.
Multilayer
samples
can
be
used
to
increase
the
thickness
of
the
sample,
but
these
cannot
be
simple
stacked
layers;
they
must
be
physically
bonded
with
no
air
gaps
between
the
layers.
A
target
thickness
would
be
1
.0
mm,
but
both
thinner
and
thicker
samples
will
work.
3.2
Three
specimens
are
required
for
this
test.
3.3
All
materials
are
affected
by
moisture,
including
all
rein¬
forced
laminates
and
most
films.
Therefore,
all
samples
shall
be
conditioned
at
23℃
土
2
℃
and
50%
RH
土
5%
RH
for
a
minimum
of
24
hours
prior
to
testing.
However,
if
a
sample
has
recently
been
etched
or
exposed
to
excessive
moisture,
it
should
be
dried
in
an
air-circulating
oven
for
two
hours
at
105℃
+5℃,
-2℃
prior
to
testing
and
conditioned
at
room
Number
2.5.5.9
Subject
Permittivity
and
Loss
Tangent,
Parallel
Plate,
1
MHz
to
1.5
GHz
Date
Revision
11/98
Originating
Task
Group
HDI
Test
Methods
Task
Group
(D-42a)
temperature
as
mentioned
above.
3.4
Sample
Surface
Preparation
3.4.1
It
is
preferred
that
the
sample
be
patterned
with
a
conductive
material
in
the
shape
and
size
of
the
test
elec¬
trode.
This
conductive
material
is
preferably
1
00
angstroms
of
vapor
deposited
copper.
Other
metals
may
be
used.
In
all
cases,
the
conductor
on
the
sample
must
make
good
electri¬
cal
contact
with
the
fixture
electrode.
Such
a
conductive
pat¬
tern
eliminates
air
gaps
and
other
potential
sample
mounting
errors.
3.4.2
Bare
dielectric
materials
may
be
tested
with
this
test
method.
The
fixture
electrodes
must
be
applied
with
some
level
of
force
to
ensure
a
gap-free
contact
area.
Determining
the
correct
force
setting
may
require
some
trial
and
error
test¬
ing
for
each
type
of
sample
(see
6.4).
4
Equipment/Apparatus
4.1
The
Hewlett-Packard
Impedance
Material
Analyzer,
model
4291
A,
or
equivalent
is
recommended.
4.2
Hewlett-Packard
model
number
1
6453A
test
fixture,
or
equivalent
4.3
An
appropriate
calibration-verification
kit
and
a
fixture¬
correction
kit
as
recommended
in
the
instrument's
manual
(i.e.,
HP4291
A
Calibration
kit).
Such
a
kit
usually
includes
the
following
devices:
•
OPEN
and
SHORT
for
fixture
correction
•
50
Ohms
impedance
•
Dielectric
(PTFE)
of
known
characteristic
for
the
purpose
of
the
calibration
verification
4.4
Micrometer,
capable
of
0.001
mm
resolution
4.5
Circulating
oven
capable
of
105℃
+5℃,
-2℃
5
Procedure
5.1
Calibrate
the
instrument
using
the
calibration
kit
accord¬
ing
to
the
recommendations
of
the
instrument
manufacturer.

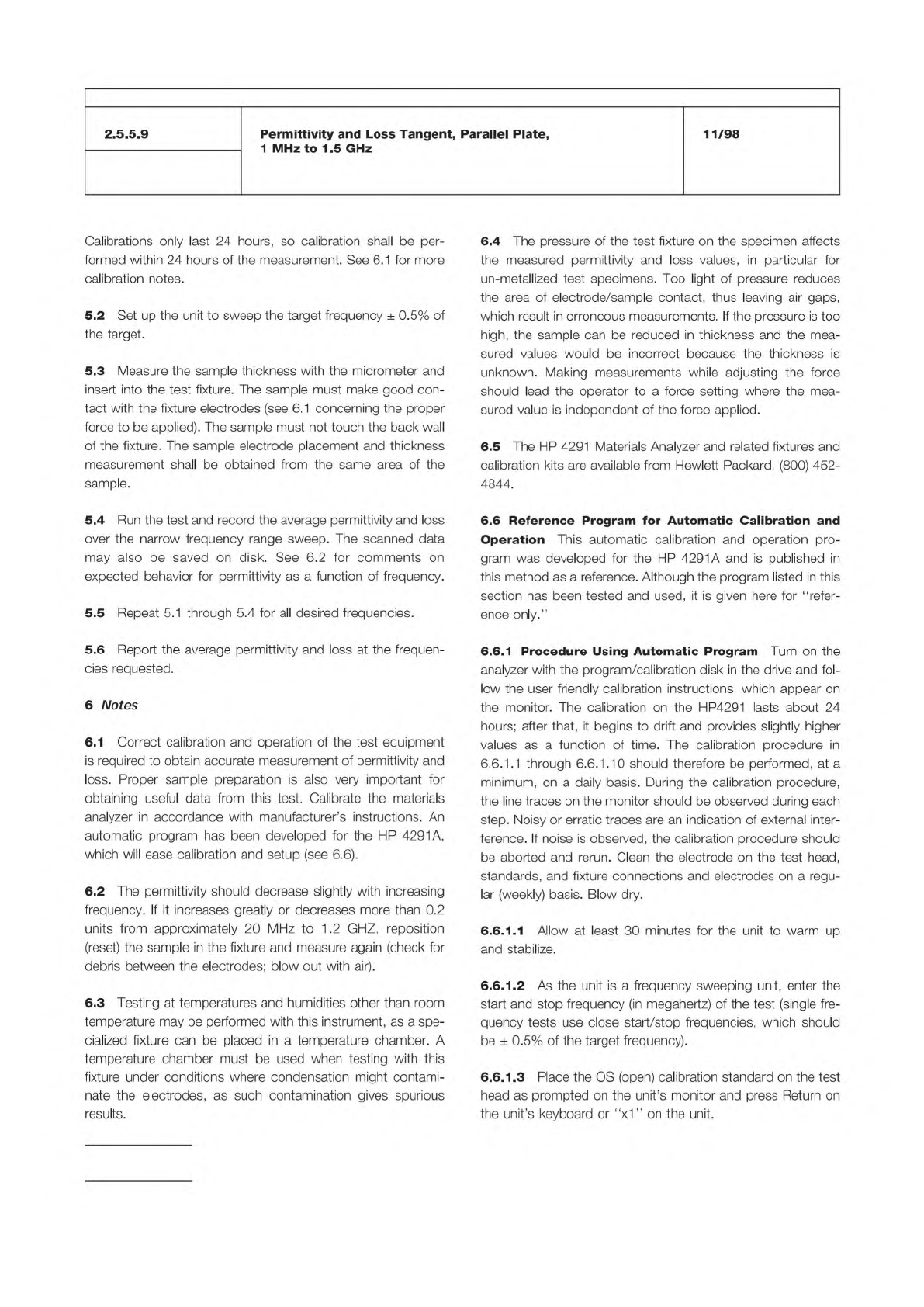

IPC-TM-650
Number
Subject Date
Revision
Page 2 of 5
2.5.5.9
Permittivity
and
Loss
Tangent,
Parallel
Plate,
1
MHz
to
1.5
GHz
11/98
Calibrations
only
last
24
hours,
so
calibration
shall
be
per¬
formed
within
24
hours
of
the
measurement.
See
6.1
for
more
calibration
notes.
5.2
Set
up
the
unit
to
sweep
the
target
frequency
土
0.5%
of
the
target.
5.3
Measure
the
sample
thickness
with
the
micrometer
and
insert
into
the
test
fixture.
The
sample
must
make
good
con¬
tact
with
the
fixture
electrodes
(see
6.1
concerning
the
proper
force
to
be
applied).
The
sample
must
not
touch
the
back
wall
of
the
fixture.
The
sample
electrode
placement
and
thickness
measurement
shall
be
obtained
from
the
same
area
of
the
sample.
5.4
Run
the
test
and
record
the
average
permittivity
and
loss
over
the
narrow
frequency
range
sweep.
The
scanned
data
may
also
be
saved
on
disk.
See
6.2
for
comments
on
expected
behavior
for
permittivity
as
a
function
of
frequency.
5.5
Repeat
5.1
through
5.4
for
all
desired
frequencies.
5.6
Report
the
average
permittivity
and
loss
at
the
frequen¬
cies
requested.
6
Notes
6.1
Correct
calibration
and
operation
of
the
test
equipment
is
required
to
obtain
accurate
measurement
of
permittivity
and
loss.
Proper
sample
preparation
is
also
very
important
for
obtaining
useful
data
from
this
test.
Calibrate
the
materials
analyzer
in
accordance
with
manufacturer's
instructions.
An
automatic
program
has
been
developed
for
the
HP
4291
A,
which
will
ease
calibration
and
setup
(see
6.6).
6.2
The
permittivity
should
decrease
slightly
with
increasing
frequency.
If
it
increases
greatly
or
decreases
more
than
0.2
units
from
approximately
20
MHz
to
1
.2
GHZ,
reposition
(reset)
the
sample
in
the
fixture
and
measure
again
(check
for
debris
between
the
electrodes;
blow
out
with
air).
6.3
Testing
at
temperatures
and
humidities
other
than
room
temperature
may
be
performed
with
this
instrument,
as
a
spe¬
cialized
fixture
can
be
placed
in
a
temperature
chamber.
A
temperature
chamber
must
be
used
when
testing
with
this
fixture
under
conditions
where
condensation
might
contami¬
nate
the
electrodes,
as
such
contamination
gives
spurious
results.
6.4
The
pressure
of
the
test
fixture
on
the
specimen
affects
the
measured
permittivity
and
loss
values,
in
particular
for
un-metallized
test
specimens.
Too
light
of
pressure
reduces
the
area
of
electrode/sample
contact,
thus
leaving
air
gaps,
which
result
in
erroneous
measurements.
If
the
pressure
is
too
high,
the
sample
can
be
reduced
in
thickness
and
the
mea¬
sured
values
would
be
incorrect
because
the
thickness
is
unknown.
Making
measurements
while
adjusting
the
force
should
lead
the
operator
to
a
force
setting
where
the
mea¬
sured
value
is
independent
of
the
force
applied.
6.5
The
HP
4291
Materials
Analyzer
and
related
fixtures
and
calibration
kits
are
available
from
Hewlett
Packard,
(800)
452-
4844.
6.6
Reference
Program
for
Automatic
Calibration
and
Operation
This
automatic
calibration
and
operation
pro¬
gram
was
developed
for
the
HP
4291A
and
is
published
in
this
method
as
a
reference.
Although
the
program
listed
in
this
section
has
been
tested
and
used,
it
is
given
here
for
^refer¬
ence
only.”
6.6.1
Procedure
Using
Automatic
Program
Turn
on
the
analyzer
with
the
program/calibration
disk
in
the
drive
and
fol¬
low
the
user
friendly
calibration
instructions,
which
appear
on
the
monitor.
The
calibration
on
the
HP4291
lasts
about
24
hours;
after
that,
it
begins
to
drift
and
provides
slightly
higher
values
as
a
function
of
time.
The
calibration
procedure
in
6.6.1
.1
through
6.6.1
.10
should
therefore
be
performed,
at
a
minimum,
on
a
daily
basis.
During
the
calibration
procedure,
the
line
traces
on
the
monitor
should
be
observed
during
each
step.
Noisy
or
erratic
traces
are
an
indication
of
external
inter¬
ference.
If
noise
is
observed,
the
calibration
procedure
should
be
aborted
and
rerun.
Clean
the
electrode
on
the
test
head,
standards,
and
fixture
connections
and
electrodes
on
a
regu¬
lar
(weekly)
basis.
Blow
dry.
6.6.1.
1
Allow
at
least
30
minutes
for
the
unit
to
warm
up
and
stabilize.
6.6.1.
2
As
the
unit
is
a
frequency
sweeping
unit,
enter
the
start
and
stop
frequency
(in
megahertz)
of
the
test
(single
fre¬
quency
tests
use
close
start/stop
frequencies,
which
should
be
±
0.5%
of
the
target
frequency).
6.6.1.
3
Place
the
OS
(open)
calibration
standard
on
the
test
head
as
prompted
on
the
unit's
monitor
and
press
Return
on
the
unit's
keyboard
or
"xl”
on
the
unit.
