CM402-L 20070802 - 第390页

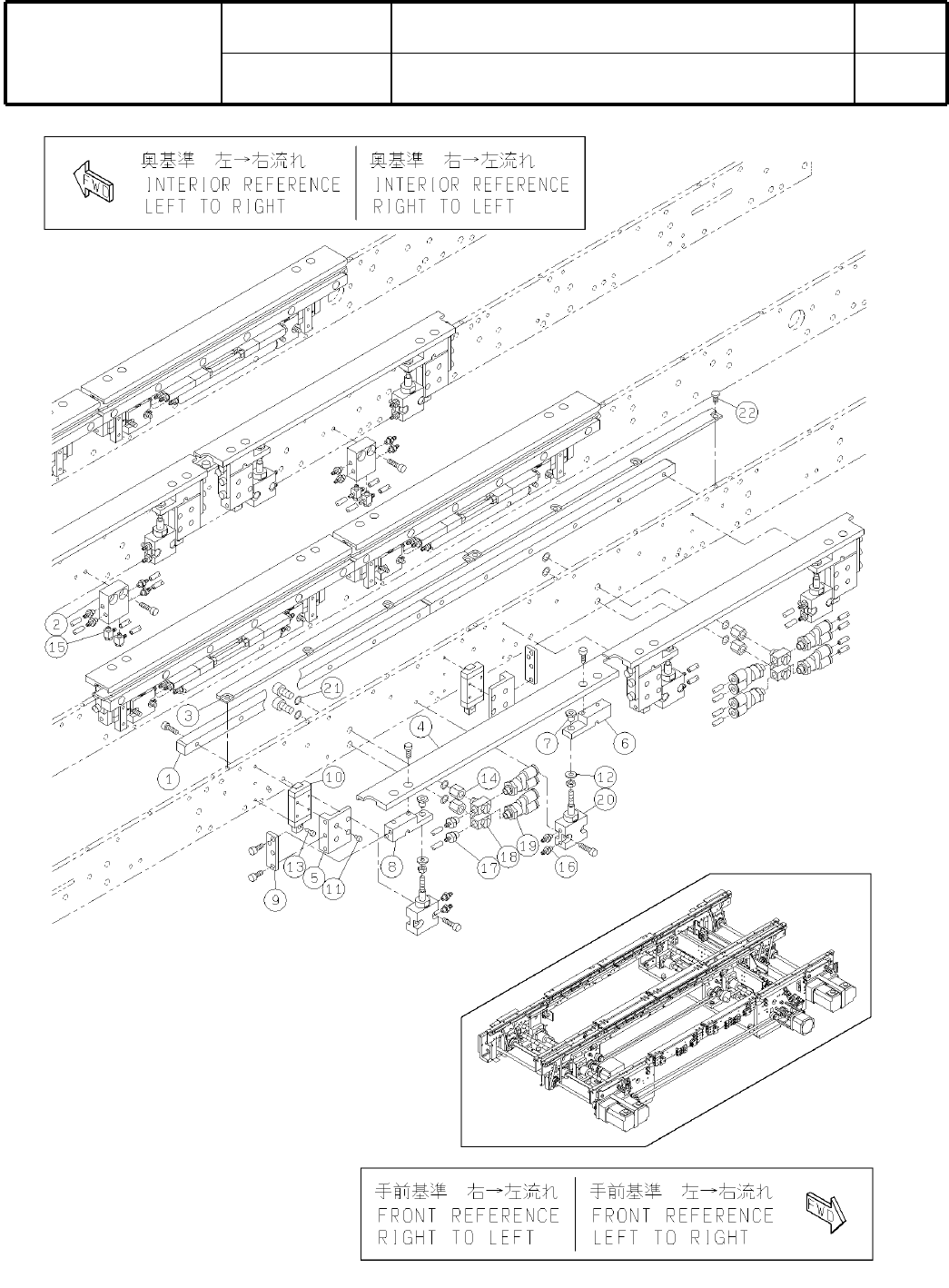

37-J デ ュ ア ル コ ン ベア R Dual Conveyor R パー ツレイ アウト Kit No. キ ット 品番 Kit Name キ ット 名称 N610001651AA ｾｸｼｮﾝ No . PARTS LAYOUT Section No. - - S163 ( KN610001651AA-05-10 )
Ref
No.
Remarks
R
1
Q'ty
37-I
デュアルコンベア
R
Dual Conveyor R
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット
品番
Kit Name
キット名称
N610001651AA
Part Name
備 考
ｾｸｼｮﾝ
No
.
PARTS LIST
Section No.
R
3
BLOCK
2
1 N210003511AA
BLOCK
1
2 N210003512AA
GUIDE
1
3 N210003974AA
BRACKET
1
4 KXFB04XRA00
BRACKET
1
5 N210003975AA
BRACKET
1
6 N210003976AA
BRACKET
1
7 N210003977AA
BRACKET
1
8 N210003604AA
GUIDE
1
9 N210003606AA
GUIDE
1
10 N210006377AA
VALVE
1
11 KXF09X2AA00 VQZ1121-5MO-C4
JOINT
5
12 KXF029JAA00 KJL04-M5
SPEED-CONTROLLER
2
13 KXF05BGAA00 AS1301F-M5-06
SPEED-CONTROLLER
2
14 KXF0DZ1BA00 AS1200-M5
PLUG
2
15 KXF02TGAA00 M-5P
JOINT
2
16 KXF0DY7YA00 KQR23-04
JOINT
2
17 KXF0CT5AA00 KQVF04-M5
JOINT
6
18 KXF02AWAA00 KQH04-M5
SILENCER
1
19 KXF00WCAA00 AN120-M5
VALVE
1
20 KXF0DLYAA00 VQD1121V-5MO-M5
JOINT
2
21 KXF08KDAA00 KJU04-M5
JOINT
4
22 N431KQVF06M5 KQVF06-M5
SPACER
4
23 N510019897AA ASF-520E
JOINT
10
24 KXF07TFAA00 M-5ALU-3
JOINT
11
25 KXF02SZAA00 M-5ALU-4
JOINT
2
26 KXF02B4AA00 KQH06-M5
GASKET
1
27 KXF09Y6AA00 VQZ1000-GS-2
GROMMET
1
28 KXF0DWVFA00 C-30-BW-19-1-UL
S162
-
-
( KN610001651AA-05-9 )
37-J
デュアルコンベア
R
Dual Conveyor R
パーツレイアウト
Kit No.
キット
品番
Kit Name
キット
名称
N610001651AA
ｾｸｼｮﾝ
No
.
PARTS LAYOUT
Section No.
-
-
S163
( KN610001651AA-05-10 )
Ref
No.
Remarks
R
1
Q'ty
37-J
デュアルコンベア
R
Dual Conveyor R
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット
品番
Kit Name
キット名称
N610001651AA
Part Name
備 考
ｾｸｼｮﾝ
No
.
PARTS LIST
Section No.
R
3
GUIDE
8
1 N210007883AA
BLOCK
2
2 KXFB04V0A00
GUIDE
4
3 N210071218AA
CLAMPER
4
4 N210071219AA
BLOCK
16
5 N210008094AA
BLOCK
8
6 N210008253AA
NUT
16
7 KXFB04VHA00
BLOCK
8
8 N210008257AA
PLATE
16
9 N210003529AA
LINEAR-WAY
16
10 N510015535AA LWLG7C1R40BE285
BOLT
64
11 XVE2B3FP
Hexagon socket head cap screw M2X3 Conical bottom Steel Unichrome bla
WASHER
16
12 KXF0CSSAA00 WSSB8-3-1
BOLT
48
13 XVE2B6FP
Hexagon socket head cap screw M2X6 Conical bottom Steel Unichrome bla
SPACER
4
14 N510019896AA ASF-508E
JOINT
2
15 KXF09VKAA00 M-3ALU-3
JOINT
64
16 KXF0CSRAA00 M-3AU-3
JOINT
2
17 KXF0937AA00 M-5AU-3
JOINT
4
18 KXF02TLAA00 M-5UT
JOINT
6
19 KXF0DV8AA00 KJU23-M5
CYLINDER
16
20 KXF0DY82A00 CUJB8D-W8095-5(DDA)
GASKET
8
21 KXF02T6AA00 M-5G1
BOLT
32
22 N510028942AA SEH0306
S164
-
-
( KN610001651AA-05-10 )
