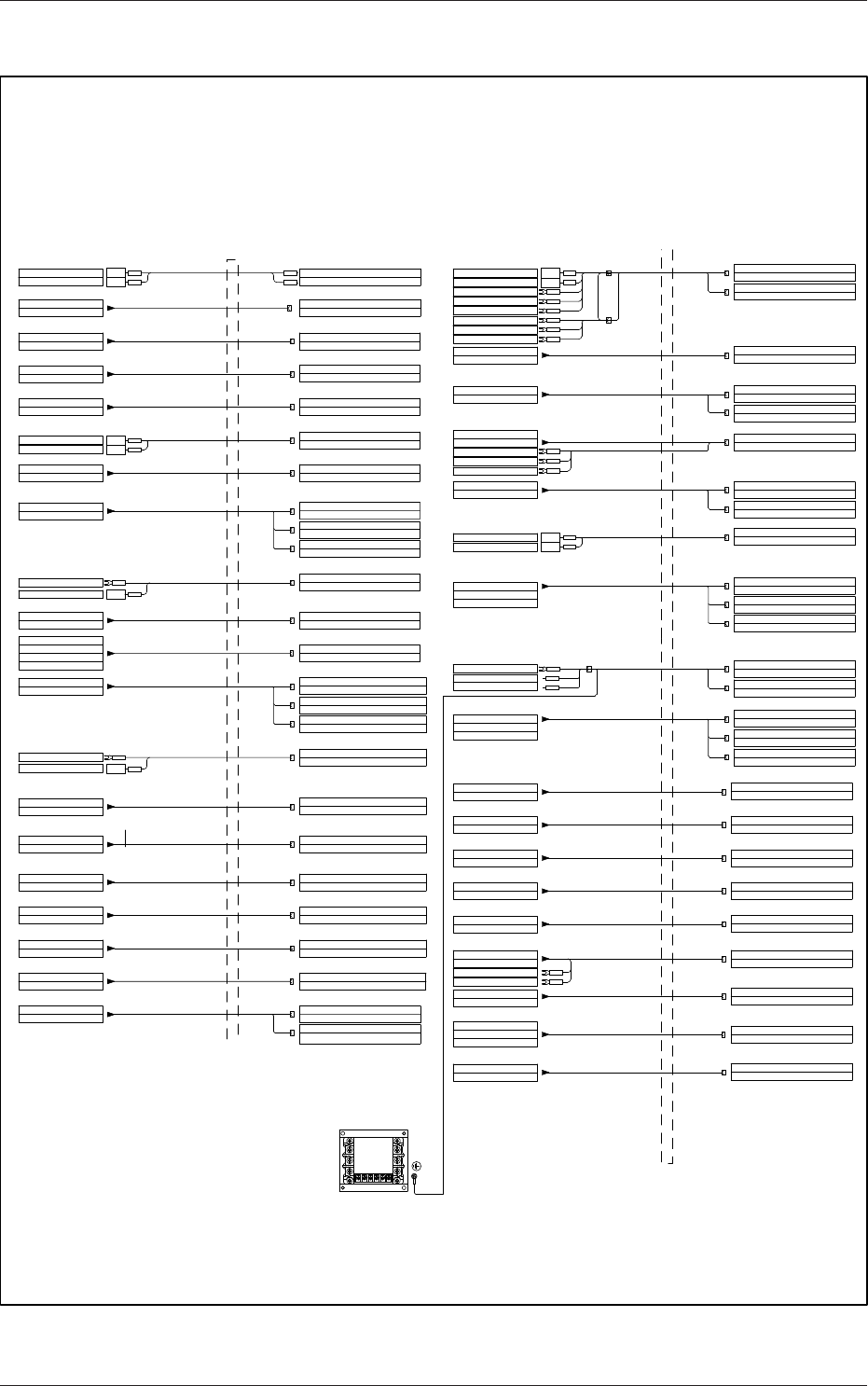

4-25 5OM-1513 控制盘外导线连接图 3 0908-001-(1090008007-3) 24A1 10A 24A1 10A Terminal Block ： TB3 Insert it to 24A1 Terminal Block ： TB3 Insert it to 210A PX-040 PX-042 PX-041 102 Breaker Q201 ： Connect to T erminal NO.14 108 Bre…
4-24
5OM-1513
X1G03
Inside the Control Panel Main Body Side
PX-175
G03-CN2
L=1900(1000)
Control Box Section Box Computer U50：Connect to Attached Power Connector
Terminal Block：TB1 Insert it to L104
Control Box Section Camera Cable 34W2004703：Connect to Ｘ1G03
L204
Terminal Block
L104
ＤＣPower G03：Connect to CN2
PX-176
L=1300(955)
L104
L204
L104
L204
PX-002
L=1500(1210)
Control Box Section HLS Center Board U52：Connect to CN2
X0304
U52-CN2
A19-N1
L=1900(1140)
U53-CN1
PX-006
Driver A19：Connect to N1
AELINK Center Board U53：Connect to CN1
L=1500(830)
U53-CN2
PX-013
A25-N1
Driver A25：Connect to CN1
AELINK Center Board U53：Connect to CN2
PX-162
L=2200(1160)
U53-CN3
AELINK Center Board U53：Connect to CN3
24A3
Terminal Block
10A
24A3
10A
Terminal Block：TB3 Insert it to 24A3
Terminal Block：TB3 Insert it to 10A
X0518，X0519
PX-076
L=2200(1000)
Welded Cable34W2005000：Connect to X1048
X1048
Ｉ／Ｏ PCB U05：Connect to CN18,CN19
A17-CNC
L=2000(1000)
X170
AC Servo amplifier A17：Connect to CNC
X2170
X4170
PX-094
Welded Cable34W2005000：Connect to X170
Welded Cable34W2005000：Connect to X2170
Welded Cable34W2005000：Connect to X4170
1170
Relay K17B：Connect to Terminal NO.9
L=2100(800)
X1170
PX-095
10B
10B
Terminal Block：DC2 Insert it to 10B
Welded Cable34W2005000：Connect to X1170
PX-096
L=2000(850)
A17-CN2
X1175
AC Servo amplifier A17：Connect to CN2
Welded Cable34W2005000：
Connect to
X1175
PX-115
L=2500(1380)
A23-CN2
PX-116
L=1950(870)
Welded Cable34W2005000：Connect to X1235
X2230
X1235
A23-CN1
Pulse Controller U23：
Connect to
CN1
PX-112
L=2000(825)
X1231
Welded Cable34W2005000：
Connect to
X1231
A23-CNC
L=1820(920)
X230
AC Servo amplifier A23：Connect to CNC
X1230
X4230
PX-114
Welded Cable34W2005000：Connect to X230
Welded Cable34W2005000：Connect to X1230
Welded Cable34W2005000：Connect to X4230
1230
Relay K23B：Connect to Terminal NO.10
10B
10B
Terminal Block：TB3 Insert it to 10B
Welded Cable34W2005000：Connect to X2230
AC Servo amplifier A23：Connect to CN2
PX-118
L=1450(970)
A25-CN2
X1251
Driver A25：Connect to CN2
Welded Cable34W2005000：Connect to X1251
X0539，X0540
L=3200(1950)
Cleaning Section Solvent Dispense Pump Solenoid Valve：Connect to Y56
Y56
I／O PCB U05
Y57
Cleaning Section Nozzle U/D Solenoid Valve：Connect to Y59
PX-083
Cleaning Section Chuck Suction Solenoid Valve：Connect to Y57
A25-CN4
PX-120
L=1400(975)
X250
Welded Cable34W2005000：Connect to X250
Driver A25：Connect to CN4
A45-CN9
PX-154
L=1400(810)
X490
Driver A45：Connect to CN9
Welded Cable34W2005000：Connect to X490
A45-CN10
PX-156
L=1400(825)
X510
Driver A45：Connect to CN10
Welded Cable34W2005000：Connect to X510
A35-CN3
PX-136
L=1800(920)
X1351
PEC Recognition Section HarnessPX-137：Connect to X1351
A35-CN6
L=2100(1170)
X350
X1350
PX-139
Driver A35：Connect to CN3
Driver A35：Connect to CN6
PEC Recognition Section HarnessPX-140：Connect to X350
PEC Recognition Section HarnessPX-140：Connect to X1350
X13131
3131
Relay K3131：Connect to Terminal NO.1
3132
3133
24A3
Terminal Block
10A
Terminal Block：TB3 Insert it to 24A3
Terminal Block：TB3 Insert it to 10A
Relay K3132：Connect to Terminal NO.2
Relay K3133：Connect to Terminal NO.3
3121
Relay K3121：Connect to Terminal NO.4
3122
3123
Relay K3122：Connect to Terminal NO.3
Relay K3123：Connect to Terminal NO.4
X13121
PX-051
L=2100(1850)
Squeegee Head Section Harness PX-052：Connect to X23131
Squeegee Head Section Harness PX-052：Connect to X23121
X23131
X23121
24A3
10A
A27-CN3
PX-121
L=2700(1900)
X1271
Squeegee Head Section Harness PX-122：Connect to X1271
Driver A27：Connect to CN3
L=2550(1750)
X270
X1270
PX-124
A27-CN6
Driver A27：Connect to CN6
Squeegee Head Section Harness PX-125：Connect to X270
Squeegee Head Section Harness PX-125：Connect to X1270
PX-130
L=2500(2000)
A29-CN8
X1311
PX-131
L=2600(1880)
A29-CN5
X310
Driver A29：Connect to CN5
31214
31312
Relay K3123：Connect to Terminal NO.12
Squeegee Head Section PX-052：Connect to X1311
L=2850(1670)
31212
Relay K3131：Connect to Terminal NO.13
Relay K3121：Connect to Terminal NO.16
X2310
Squeegee Head Section Harness PX132：Connect to X310
Squeegee Head Section Harness PX132：Connect to X2310
L=3000(1950)
X2A53
PX-160
Squeegee Head Section Harness PX-052：Connect to X2A53
24A3
Terminal Block
10A
24A3
10A
Terminal Block：TB3 Insert it to 24A3
Terminal Block：TB3 Insert it to10A
PX-173
L=2500(1600)
X1200
Relay K2E：Connect to Terminal NO.3
Cleaning Section Harness PX-172：Connect to X1200
X1201
Green/Yellow
Cleaning Section Harness PX-172：Connect to X1201
X200
PX-171
1023
1022
1021
Solder Paste to Condenser C01(1022,1023)
X0532，X0533
PX-081
L=2700(1490)
Y50
I／O
PCB
U05：
Connect to
CN32,CN33
R Conveyor PCB Stopper Solenoid Valve：Connect to Y50
A37-CN3
PX-143
L=2000(1570)
R Conveyor Harness PX-144：Connect to X371
X371
PX-146
L=1900(1420)
A37-CN8
M37
A37-CN9
PX-147
L=2100(1600)
M41
A37-CN10
PX-148
L=1800(1250)
X430
Driver A37：Connect to CN10
Driver A37：Connect to CN3
R Conveyor Width Axis Motor M37：Connect to M37
Driver A37：Connect to CN8
Driver A37：Connect to CN9
R Conveyor PCB Transfer 1 Motor M41：Connect to M41
R Conveyor Harness PX-149：Connect to X430
Operation Panel Section Power ON Switch：Connect to X1006
PX-037
L=4000(2810)
150
152
Relay K3170：Connect to Terminal NO.3
Relay K117B：Connect to Terminal NO.4
PX-038
L=4050(2770)
Operation Panel Section Emergency Stop Switch ：Connect to S10
X1006
S10
X0230
Ｉ／Ｏ PCB U02
Connect to CN10，CN11，CN30
PX-055
L=4300(2870)
Operation Panel Section START/STOP Switch：Connect to X10
X10
Relay Board U54：Connect to X008
PX-039
L=3300(2040)
Right Rear Side Switch Box Section Emergency Stop Switch：Connect to S11
S11
Y59
PX-050
X0515
PX-074
L=2900(1740)
R Conveyor PCB Stopper Upper Limit Switch：Connect to B42
B42
Ｉ／Ｏ PCB U05
Connect to CN13，CN14，CN15
B40
R Conveyor PCB Arrival Check Sensor ：Connect to B40
B41
R Conveyor PCB Passage Check Sensor：Connect to B41
Relay Board U54：Connect to X006
X006
X008
Relay Board U54：Connect to X007
X007
X0210,X0211
Front and Rear I/Fs PCB U03：Connect to CN4
X0513，X0514
X0536，X0537
Connect to CN36,CN37,CN39,CN40
Driver A29：Connect to CN8
AC Servo amplifier A23：Connect to CN1
Relay Connect to
K310，K3230，K3231
U23-CN1
Terminal Block：TB1 Insert it to L204
K204
Left Side Opening Section
控制盘外导线连接图 2
0908-001-(1090008007-2)
4-25
5OM-1513
控制盘外导线连接图 3
0908-001-(1090008007-3)
24A1
10A
24A1
10A
Terminal Block：TB3 Insert it to 24A1
Terminal Block：TB3 Insert it to 210A
PX-040
PX-042
PX-041
102
Breaker Q201：Connect to Terminal NO.14
108
Breaker Q206：Connect to Terminal NO
110
Contactor K202：Connect to Terminal NO.21
120
122
126
128
129
130
131
132
133
134
Relay
K07：Connect to
Terminal
NO.11
Relay
K07：Connect to
Terminal
NO.54
Relay
K07：Connect to
Terminal
NO.64
Relay
K19：Connect to
Terminal
NO.A2
Relay K201：Connect to Terminal NO.A1
Relay K201：Connect to Terminal NO.A2
Relay
K08：Connect to
Terminal
NO.63
Relay
K08：Connect to
Terminal
NO.A2
Relay
K23：Connect to
Terminal
NO.3
Relay
K23：Connect to
Terminal
NO.2
100
Relay K315：
Connect to
Terminal NO.3
101
PX-044
Relay K315：
Connect to
Terminal NO.4
X003X004X005X007X008
X003
X004
X005
X007
X008
140
141
140
141
Terminal Block：DC2 Insert it to 141
Terminal Block：DC2 Insert it to 140
PX-025
142
143
142
143
Terminal Block：DC2 Insert it to 143
Terminal Block：DC2 Insert it to 142
PX-032
144
145
144
145
Terminal Block：DC2 Insert it to 145
Terminal Block：DC2 Insert it to 144
PX-035
X0203
PX-067
10A
10A
24A3
24A3
Terminal Block：TB3 Insert it to 24A3
Terminal Block：TB3 Insert it to 10A
10A
10A
Terminal Block：TB3 Insert it to 10A
24A5
24A5
Terminal Block：TB3 Insert it to 24A5
10A
10A
Terminal Block：TB3 Insert it to 10A
24A3
24A3
Terminal Block：TB3 Insert it to 24A3
PX-067
CN13
X0213
10A
Relay K301：Connect to Terminal NO.10
213
Relay K300：Connect to Terminal NO.13
PX-062
CN14
X0214
10A
Relay K117B：Connect to Terminal NO.6
214
Relay K117B：Connect to Terminal NO.5
CN15
X0215
10A
Relay K3170：Connect to Terminal NO.6
215
Relay K3170：Connect to Terminal NO.7
U02
U54
CN17
X0217
10A
Relay K3230：Connect to Terminal NO.6
217
Relay K3230：Connect to Terminal NO.7
CN23
X0223
10A
Relay K310：Connect to Terminal NO.34
223
Relay K310：Connect to Terminal NO.33
CN24
X0224
10A
Relay K08：Connect to Terminal NO.53
224
Relay K08：Connect to Terminal NO.54
PX-038
Harness PX-038
PX-039
Harness PX-039
PX-068
233
Relay K23：Connect to Terminal NO.1
24A3
Relay K23：Connect to Terminal NO.8
PX-069
243
Relay K10：Connect to Terminal NO.1
24A5
Relay K10：Connect to Terminal NO.8
Relay K2E：Connect to Terminal NO.1
Relay K2E：Connect to Terminal NO.8
CN11
X0211
CN10
X0210
CN30
X0230
Harness PX-055
PX-055
CN31
X0231
CN12
X0212
PX-058
X3011
X2011
Harness PX-056
Harness PX-057
PX-057
PX-034
PX-063
PX-064
PX-065
PX-066
CN25
X0210
Harness PX-059
PX-059
PX-056
CN33
X0233
PX-060
CN34
X0234
CN35
X0235
CN36
X0236
CN37
X0237
Harness PX-060
CN43
X0243
PX-070
24A5
CN44
X0243
244
CN18
X0218
CN19
X0219
CN20
X0220
CN21
X0221
CN22
X0222
CN32
X0232
CN3
X0204
CN4
X002
X002
PX-037
Harness PX-037
X006
X006
X001
X001
X010
X010
X0201
CN1B
X0202
CN2B
Harness PX-005
PX-005
X0503
PX-085
10A
10A
24A5
24A3
Terminal Block：TB3 Insert it to 24A3
Terminal Block：TB3 Insert it to 10A
10A
10A
Terminal Block：TB3 Insert it to 10A
24A7
24A7
Terminal Block：TB3 Insert it to 24A7
10A
10A
Terminal Block：TB3 Insert it to 10A
24A3
24A3
Terminal Block：TB3 Insert it to 24A3
PX-085
U05
PX-080
CN11
X0511
CN10
X0510
CN12
X0512
Harness PX-073
PX-073
CN14
X0514
CN13
X0513
CN30
X0530
CN3
X0504
CN4
X0201
CN1B
X0202
CN2B
PX-004
U03
CN4 CN5
CN7
X0302F
PX-071
X0302A-F
X0304 X0305
X0302A-R
PX-002
PX-072
Harness PX-002
1090008007-02 Baloon No.003
(UB32) (UB32)
(UB82)
PX-003
CN15
X0515
PX-074
Harness PX-074
CN16
X0516
PX-075
Harness PX-042
CN18
X0518
PX-076
Harness PX-076
CN19
X0519
CN20
X0520
PX-078
Harness PX-078
CN22
X0522
PX-079
Harness PX-071
CN23
X0523
Harness PX-080
PX-081
CN32
X0532
Harness PX-081
CN31
X0531
CN33
X0533
PX-082
CN34
X0534
Harness PX-082
CN35
X0535
PX-083
CN36
X0536
Harness PX-083
CN37
X0537
CN39
X0539
CN40
X0540
Contactor K204：Connect to Terminal A1
PX-084
24A7
CN38
X0538
538
Contactor K204：Connect to Terminal A3
CN8
X0302R
X0301
CN1
PX-020
10A
Terminal Block：TB3 Insert it to 10A
10A
10A
Terminal Block：TB3 Insert it to 10A
10A
24A3
Terminal Block：TB3 Insert it to 24A3
24A3
24A3
Terminal Block：TB3 Insert it to 24A3
24A3
X009
X009
(UB49)
CN2
G04-CN2
CN1
G04-CN1
G04
L104
Terminal Block：TB1 Insert it toL104
L104
L204
Terminal Block：TB1 Insert it toL204
L204
PX-181
CN2
G03-CN2
CN1
G03-CN1
G03
L104
Terminal Block：TB1 Insert it to L104
L104
L204
Terminal Block：TB1 Insert it to L204
L204
PX-180
Green/Yellow
PX-176
Harness PX-176
1090008007-02 Baloon No.002
G03
G04
Green/Yellow
4-26
5OM-1513
A25
(D3910)
N1
A25-N1
N2
Harness PX-013
PX-013
PX-118
CN2
A25-CN2
Harness PX-118
CN1
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-109
A25-CN1
CN13
24B3
10B
24B3
10B
Terminal Block：TB3 Insert it to 24B3
Terminal Block：TB3 Insert it to 10B
PX-117
A25-CN3
A37
(D4180-1)
N1
A37-N1
N2
PX-014
PX-141
CN2
A37-CN2
HarnessPX-141
PX-120
CN4
A25-CN4
Harness PX-120
PX-145
CN7
A37-CN7
HarnessPX-145
PX-143
CN3
A37-CN3
HarnessPX-143
PX-146
CN8
A37-CN8
HarnessPX-146
PX-147
CN9
A37-CN9
HarnessPX-147
PX-148
CN10
A37-CN10
HarnessPX-148
A45
(D4180-1)
N1
A45-N1
N2
A25-N2 A37-N2
PX-015
PX-184
CN1
A37-CN1
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-150
CN6
A37-CN6
10F1
48F1
10F1
10F1
Terminal Block：TB2 Insert it to 10F1
48F1
PX-151
CN7
A45-CN7
HarnessPX-151
PX-152
CN8
A45-CN8
HarnessPX-152
PX-154
CN9
A45-CN9
HarnessPX-154
PX-156
CN10
A45-CN10
HarnessPX-156
PX-185
CN1
A45-CN1
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-158
CN6
A45-CN6
Relay K09：Connect to Terminal NO.6
Relay K09：Connect to Terminal NO.2
Relay K09：Connect to Terminal NO.2
10F1
48F3
10F1
10F1
Terminal Block：TB2 Insert it to 10F1
48F3
Relay K09：Connect to Terminal NO.4
Relay K09：Connect to Terminal NO.4
10F1
Terminal Block：TB2 Insert it to 10F1
A19
(D4462)
N1
A19-N1
N2
CN4
CN3
CN1
CN8
CN5
CN7
CN9
CN10
Harness PX-006
PX-006
PX-098
Harness PX-098
PX-100
Harness PX-100
PX-101
Harness PX-101
PX-102
Harness PX-102
PX-104
Harness PX-104
PX-106
Harness PX-106
A19-CN4
A19-CN1
A19-CN3
-CN8
A19
-CN5
A19
-CN7
A19
Blue
Blue
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-108
10B
24B1
10B
24B1
Terminal Block：TB3 Insert it to 10B
PX-097
Terminal Block：TB3 Insert it to 24B1
10F5
Contactor：K18 Connect to Terminal NO.6
10F5
48F5
48F5
Contactor：K18 Connect to Terminal NO.6
Contactor：K18 Connect to Terminal NO.3
Contactor：K18 Connect to Terminal NO.3
A29
(D4462)
N1
A29-N1
N2
CN4
CN3
CN1
CN8
CN5
CN7
CN9
CN10
PX-127
Harness PX-127
PX-129
Harness PX-129
PX-130
Harness PX-130
PX-131
Harness PX-131
A29-CN4
A29-CN1
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-183
10B
24B1
10B
24B1
Terminal Block：TB3 Insert it to 10B
PX-126
Terminal Block：TB3 Insert it to 24B1
10F7
Contactor ：K19 Connect to Terminal NO.6
10F7
48F7
48F7
Contactor ：K19 Connect to Terminal NO.6
Contactor ：K19 Connect to Terminal NO.3
Contactor ：K19 Connect to Terminal NO.3
PX-007
A29-CN8
A29-CN5
Green/Yellow
A27
(D3432)
N1
A27-N1
N2
CN3
CN6
CN4
PX-121
Harness PX-121
PX-124
Harness PX-124
A27-CN3
A27-CN6
A27-CN4
PX-008
A19-N2 A29-N2 A27-N2
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-111
Green/Yellow
A33
(D3432)
N1
A33-N1
N2
CN3
CN6
CN4
PX-134
Harness PX-134
PX-135
Harness PX-135
A33-CN3
A33-CN6
A33-CN4
A33-N2
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-110
A35
(D3432)
N1
A35-N1
N2
CN3
CN6
CN4
PX-136
Harness PX-136
PX-139
Harness PX-139
A35-CN3
A35-CN6
A35-CN4
A35-N2
24A7
10A
24A7
10A
Terminal Block：TB3 Insert it to 24A7
Terminal Block：TB3 Insert it to 10A
PX-092
Green/Yellow
PX-009
PX-010
U23
(MCCA100A)
N1
U23-N1
N2
CN1
PX-112
Harness PX-112
U23-CN1
U23-N2
A23
(RS1L03AA)
CN1
-CN1
A23
10A
24A3
10A
24A3
Terminal Block：TB3 Insert it to 10A
Terminal Block：TB3 Insert it to 24A3
1233
Reray K310：Connect to Terminal NO.64
10A
24A1
10A
24A1
Terminal Block：TB3 Insert it to 10A
Terminal Block：TB3 Insert it to 24A1
1232
Contactor K203A：Connect to Terminal NO.84
1234
Reray K3231：Connect to Terminal NO.1
1235
Reray K3230：Connect to Terminal NO.1
CN2
PX-116
Harness PX-116
CNC
PX-114
Harness PX-114
Green/Yellow
Blue
U17
(MCCA100A)
N1
U17-N1
N2
CN1
PX-091
Harness PX-091
U17-CN1
A17
(RS1A03AA)
CN1
-CN1
A17
10A
24A3
10A
24A3
Terminal Block：TB3 Insert it to 10A
Terminal Block：TB3 Insert it to 24A3
1173
Reray K310：Connect to Terminal NO.54
10A
24A1
10A
24A1
Terminal Block：TB3 Insert it to 10A
Terminal Block：TB3 Insert it to 24A1
1172
Contactor K203A：Connect to Terminal NO.54
1174
Reray K3171：Connect to Terminal NO.2
1175
Reray K3170：Connect to Terminal NO.1
CN2
PX-096
Harness PX-096
CNC
PX-094
Harness PX-094
Green/Yellow
Blue
A23-CN2
A23-CNC
A17-CNC
A17-CN2
RB1
PX-036
RB2
RB1
RB2
P
DL2
DL1
-
CNB
RB1
RB2
P
DL2
DL1
-
CNB
X17B
Peel off the wire coat and insert it
PX-011
M03
PX-045
10B
192
10B
192
Terminal Block：TB3 Insert it to 10B
Terminal Block：TB3 Insert it to 192
M03
(CNDC24Z7Q)
X03
Harness PX-027
PX-027
M05
PX-047
10B
192
10B
192
Terminal Block：TB3 Insert it to 10B
Terminal Block：TB3 Insert it to 192
M05
(CUDC24B7R)
M04
PX-046
10B
192
10B
192
Terminal Block：TB3 Insert it to 10B
Terminal Block：TB3 Insert it to 192
M04
(CNDC24Z7Q)
X04
HarnessPX-012
PX-028
Harness PX-028
R17B
(REGIST-080W50B)
X117B
24A1
24A1
Terminal Block：TB3 Insert it to 24A1
189
Relay K17B：Connect to Terminal NO.8
PX-026
控制盘外导线连接图 4
0908-001-(1090008007-4)
