丝网识别部 Symbols Name Symbols Name B31 1 Stencil Recognition X-Axis Origin M31 Stencil Recognition X-Axis Motor B314 Stencil Recognition X-Axis Rotational Origin B03 Stencil Recognition Camera B3121 Stencil Recognition X-Ax…

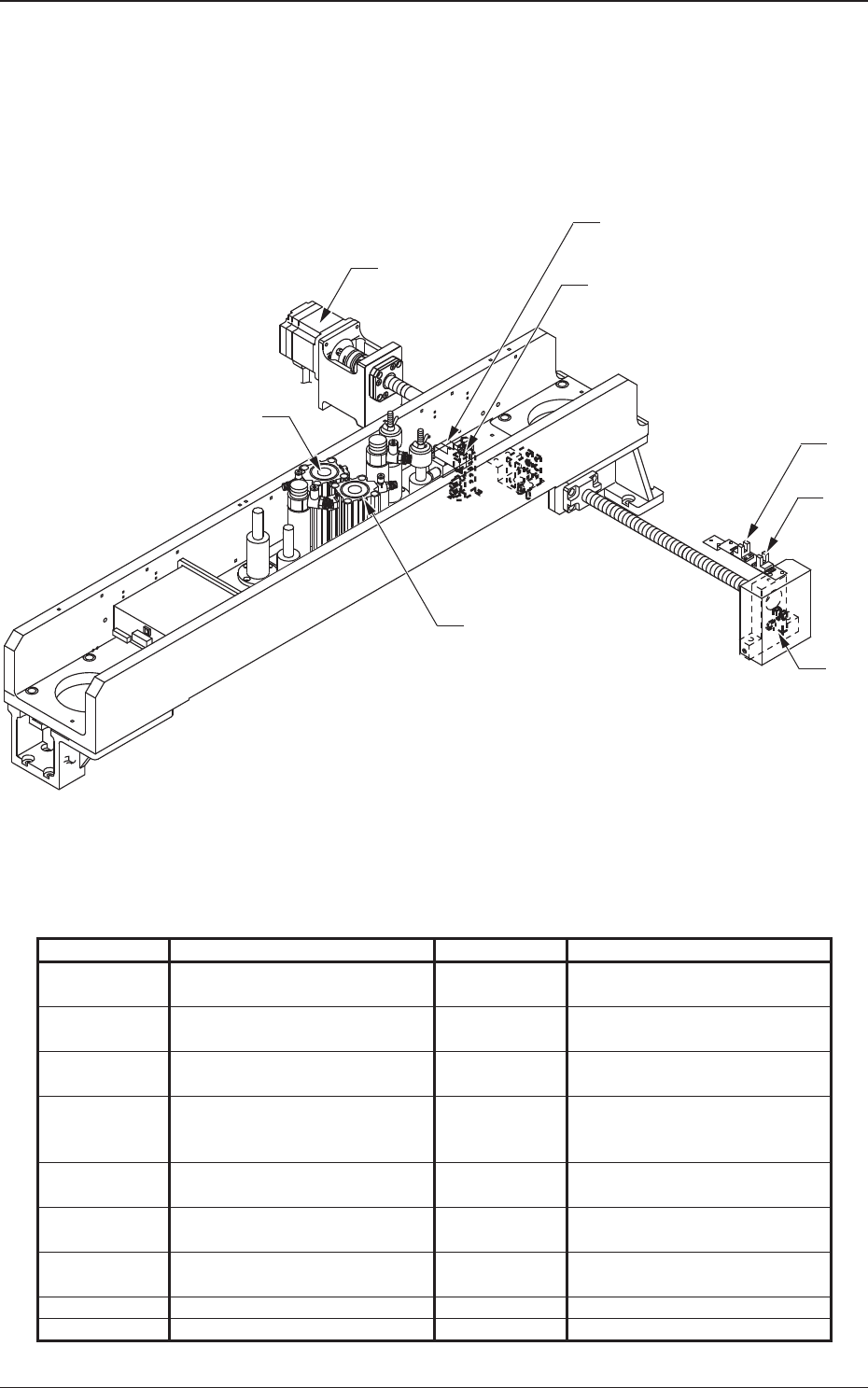

刮板头部
Symbols Name Symbols Name
B271
Squeegee Driving Shaft
Origin
M27
Squeegee Driving Shaft
Motor
B273
Squeegee Driving Shaft
-Limit
Y70
Front Squeegee U/D Moving
Down Solenoid Valve
B274
Squeegee Driving Shaft
Rotational Origin
Y71
Rear Squeegee U/D Moving
Down Solenoid Valve
B60
Front Squeegee U/D Upper
Limit
Y73
Squeegee Up/Down
Intermediate Position Stopper
Forward Side
B61
Front Squeegee U/D
Intermediate Position
B62
Rear Squeegee U/D Upper
Limit
B63
Rear Squeegee U/D
Intermediate Position
0908-001
B60
B61
B274
B62
B63
M27
B273
B271
Y73
Y70
Y71
2-2
5OM-1513

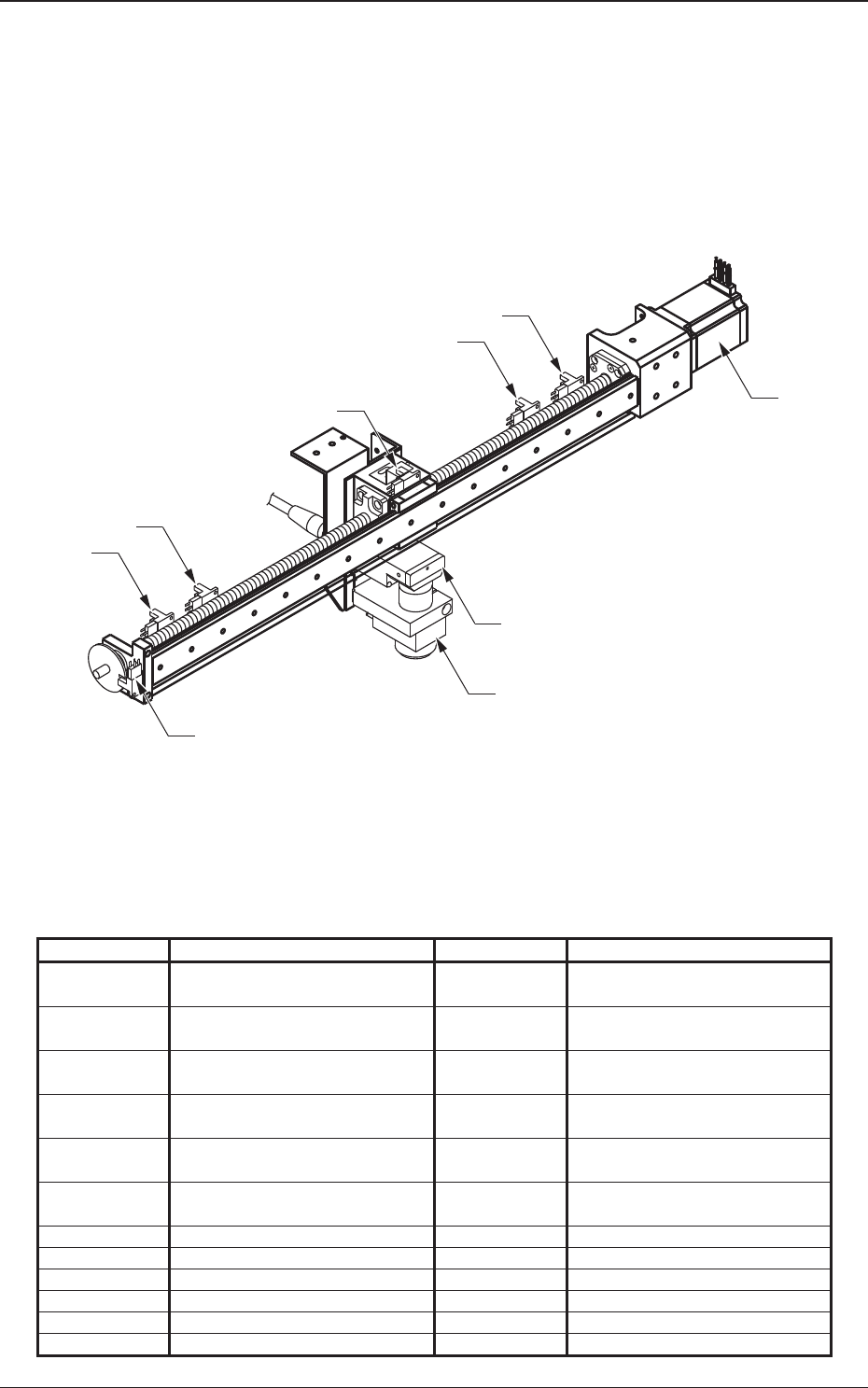

丝网识别部
Symbols Name Symbols Name
B311 Stencil Recognition X-Axis
Origin
M31 Stencil Recognition X-Axis
Motor
B314
Stencil Recognition X-Axis
Rotational Origin
B03 Stencil Recognition Camera
B3121
Stencil Recognition X-Axis
- Limit 1
E72
Lighting for PEC
Recognition
B3122
Stencil Recognition X-Axis
+ Limit 1
B3131 Stencil Recognition X-Axis
- Limit 2
B3132
Stencil Recognition X-Axis
+ Limit 2
0908-001
E72
B03
M31
B311
B3121
B3122
B3132
B3131
B314
2-3
5OM-1513

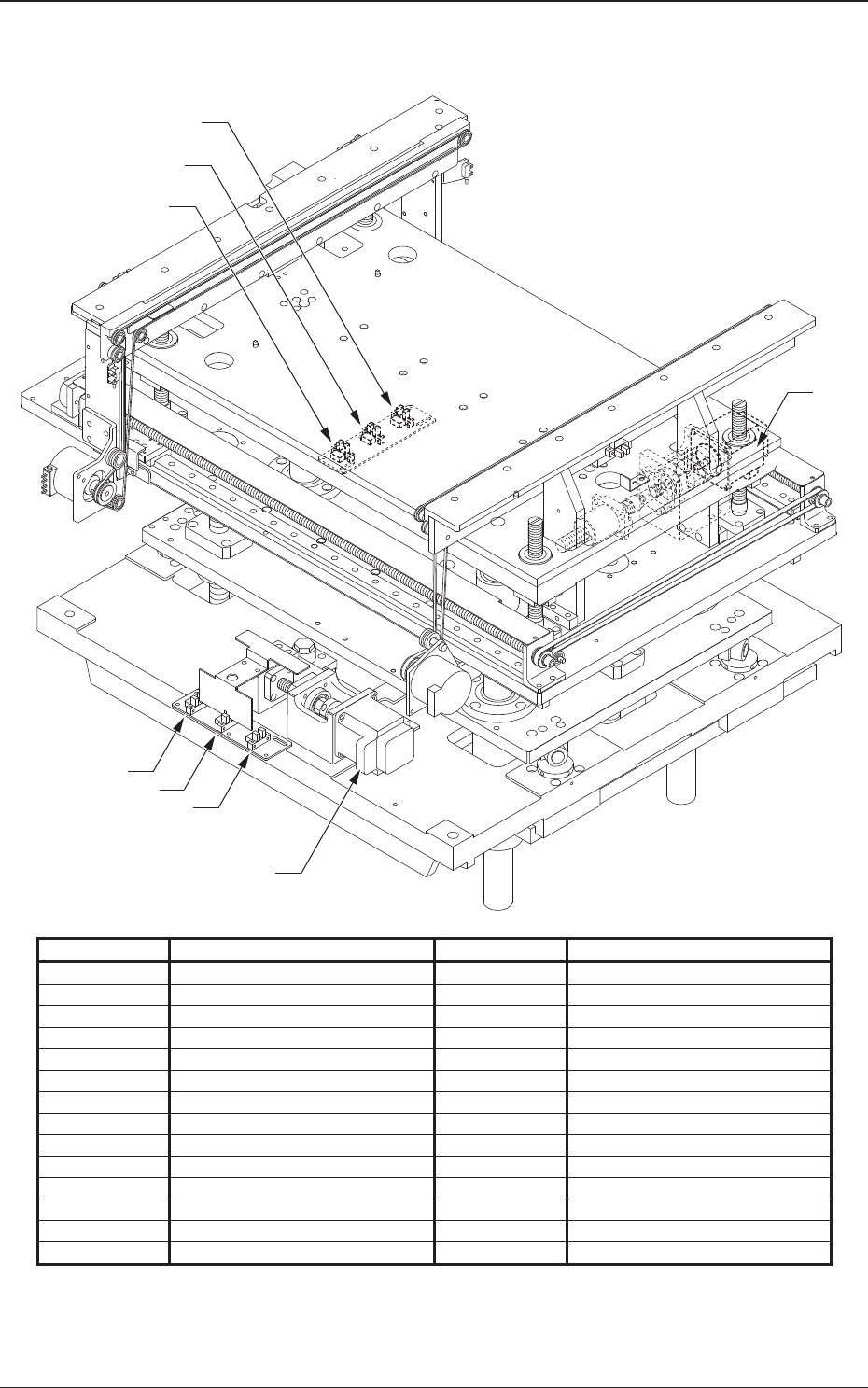

工作台部 (X 轴、
θ
轴 )
Symbols Name Symbols Name
B191 Table X-Axis Origin M19 Table X-Axis Motor
B192
Table X-Axis + Limit M21 Table θ-Axis Motor
B193 Table X-Axis - Limit
B211
Table θ-Axis Origin
B212
Table θ-Axis + Limit
B213
Table θ-Axis - Limit
0908-001
B193
B212
B213
B211
M21
B192
B191
M19
2-4
