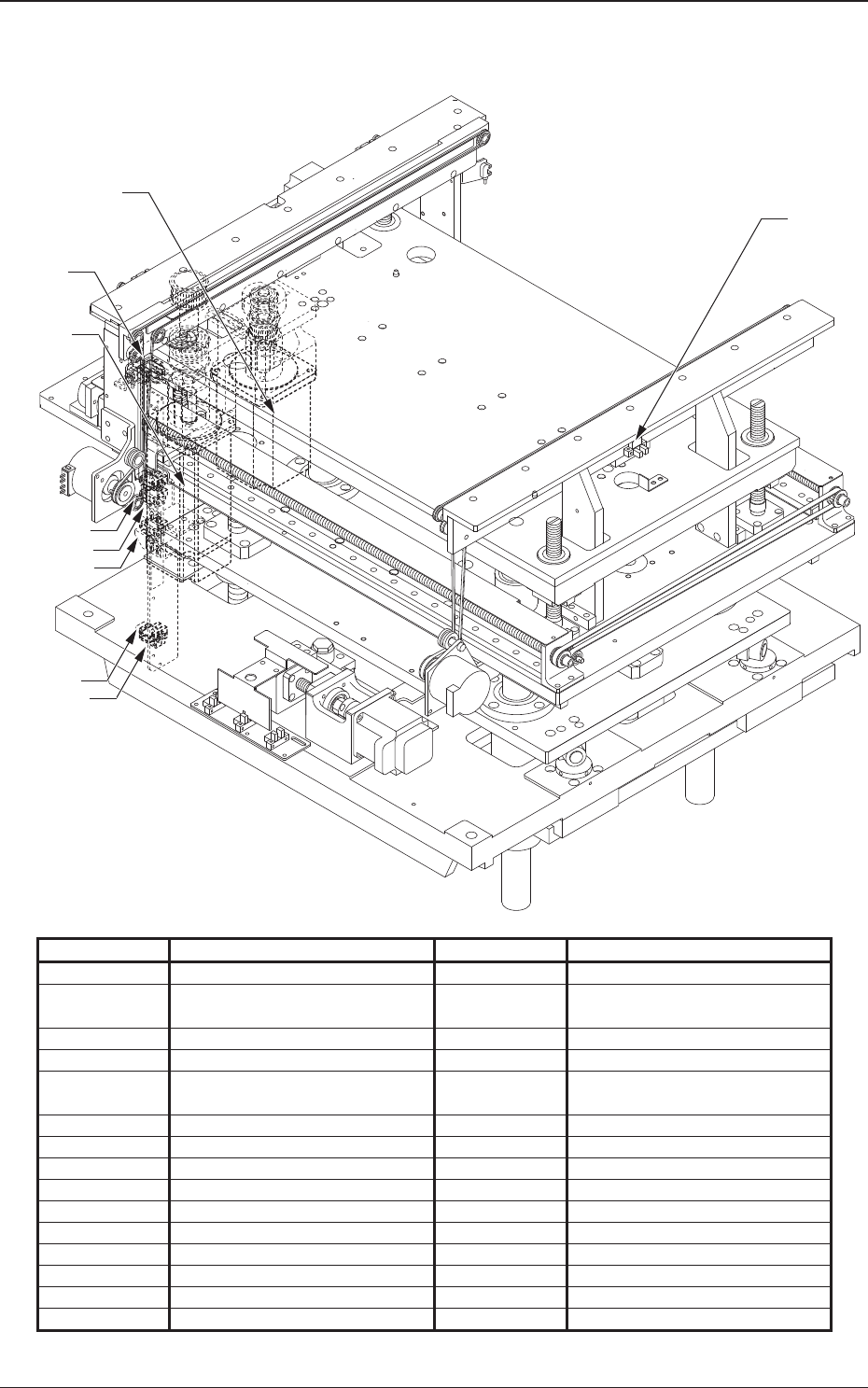

工作台部 (Z 轴、线路板上下轴 )
Symbols Name Symbols Name
B171
Table Z-Axis Origin M17 Table Z-Axis Servomotor
B172
Table Z-Axis + Limit M23 PCB Up/Down Axis
Servomotor
B173
Table Z-Axis - Limit
B4C
Table Z-Axis Interlock
B4D
Table Z-Axis Correction
Position
B231
PCB Up/Down Axis Origin
B232
PCB Up/Down Axis - Limit
B233
PCB Up/Down Axis + Limit
0908-001
2-6
5OM-1513

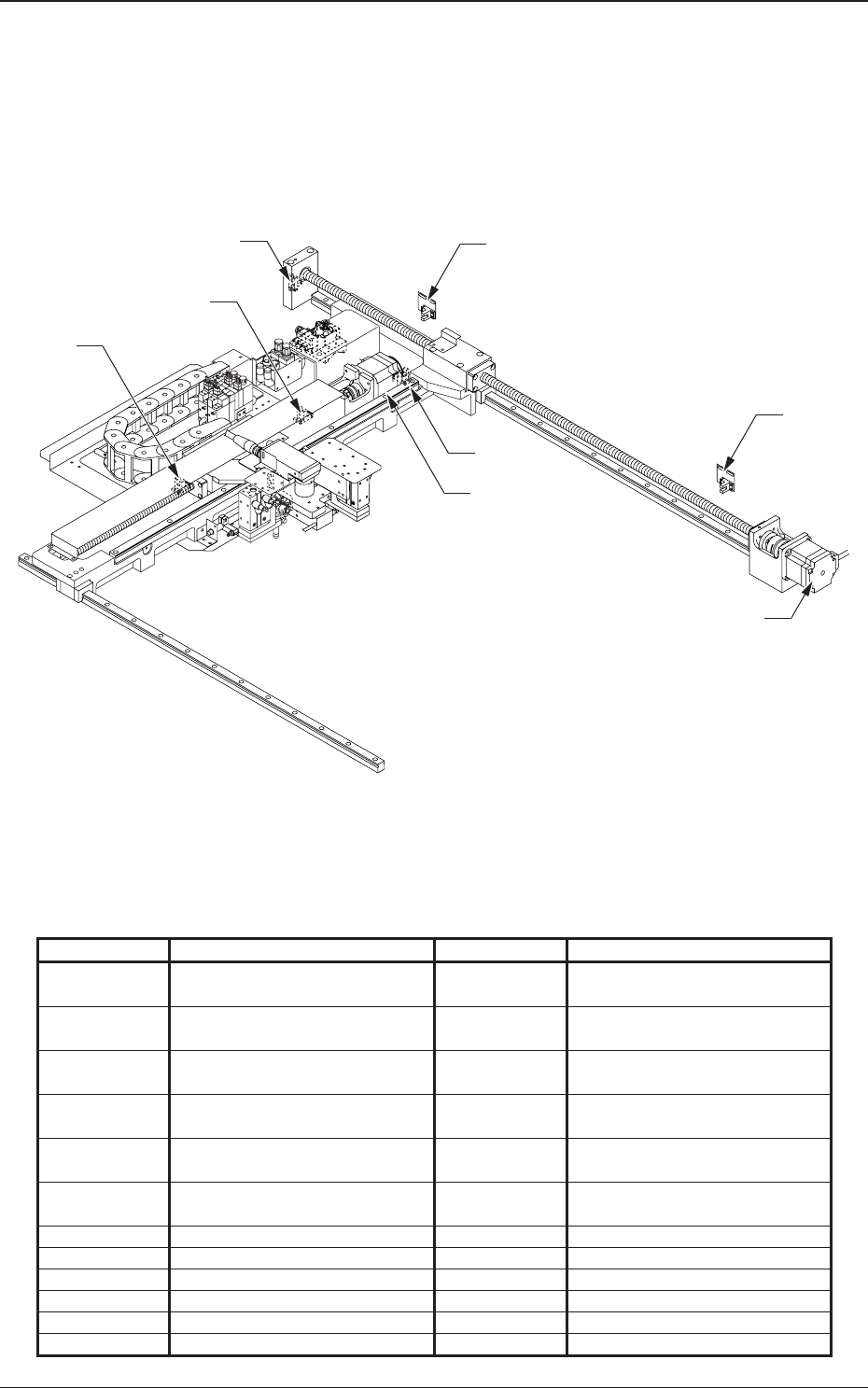

线路板识别照相机 (Y 轴、X 轴 )
Symbols Name Symbols Name
B331 PEC Recognition Y-Axis
Origin
M33 PEC Recognition Y-Axis
Motor
B334
PEC Recognition Y-Axis
Rotational Origin
M35 PEC Recognition X-Axis
Motor
B46
PEC Recognition Y-Axis
Interlock
B351 PEC Recognition X-Axis
Origin
B353 PEC Recognition X-Axis
- Limit
B354
PEC Recognition X-Axis
Rotational Origin
0908-001
2-7
5OM-1513

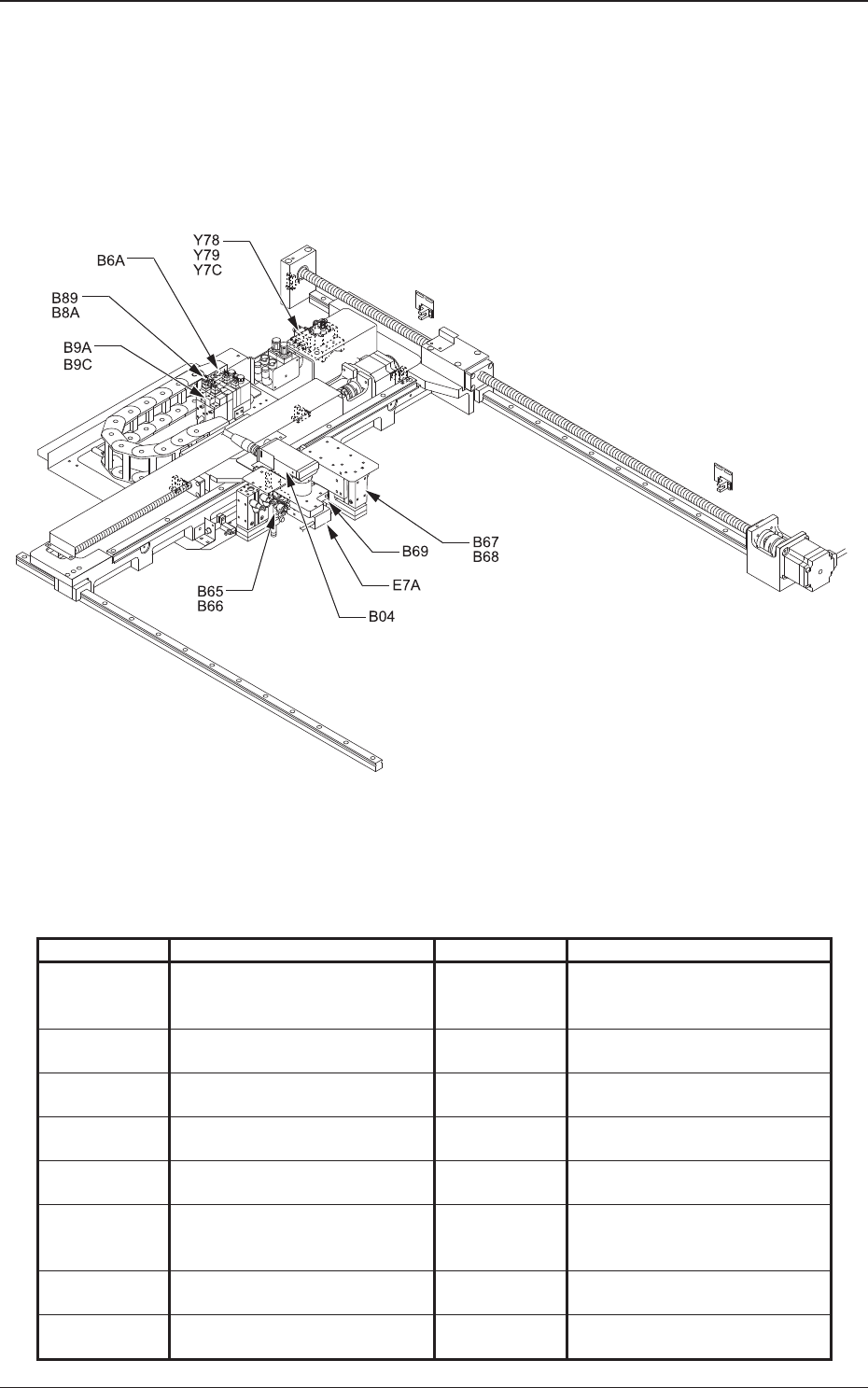

线路板识别照相机 ( 线路板弯曲检出、识别照相机、支撑销吸取 )
Symbols Name Symbols Name
B65
Left Backup Pin Pickup Head
U/D Lower Limit
Y78
PCB Warpage Preventive
Clamp Clamping Side
(Forward Side)
B66
Left Backup Pin Pickup Head
U/D Upper Limit
Y79
PCB Stopper Forward Side
B67
Right Backup Pin Pickup
Head U/D Lower Limit
Y7C
Left Backup Pin Pickup Head
U/D
B68
Right Backup Pin Pickup
Head U/D Upper Limit
Y9A Left Backup Pin Pickup Head
Pickup
B69
PCB Check Y9C Reght Backup Pin Pickup
Head Pickup
B6A
PCB Warpage Preventive
Clamp Upward Movement
Check
B04
PEC Recognition Camera
B89 Left Backup Pin Pickup Head
Pickup Check
E7A
Lighting for PEC
Recognition
B8A Rightt Backup Pin Pickup
Head Pickup Check
0908-001 2-8
