清洁部 Symbols Name Symbols Name B80 Solvent Shortage Alarm M02 Paper Roll-Up Motor B81 Cleaning No zzle Upper Limi t Y56 Solvent Dispense Pump B82 Cleaning Nozzle Lower Limit Y57 Chuck Suction B83 Paper Roll-Up Pitch Detec…

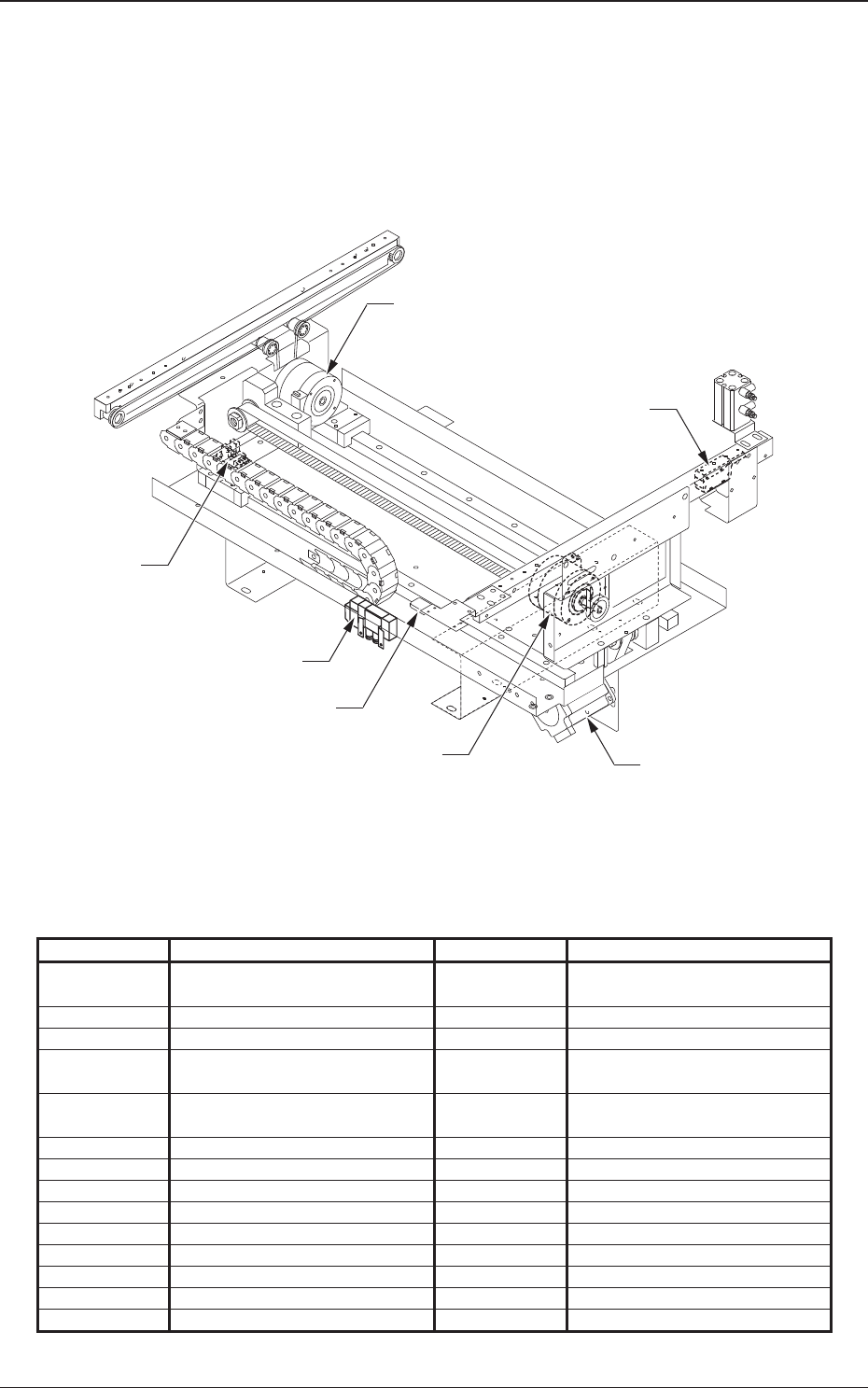

传送带 (R)
Symbols Name Symbols Name
B371
R Conveyor Width Axis
Origin
M37
R Conveyor Width Axis
B40
R Conveyor Arival Check M41 R Conveyor PCB Transfer 1
B41
R Conveyor Passage Check M43 R Conveyor PCB Transfer 2
Y50 R-Conveyor PCB Stopper
Forward Side
Y51 R-Conveyor PCB Stopper
Backward Side
0908-001
M41
M37
M43
B371
B41
B40
Y50
Y51
2-10
5OM-1513

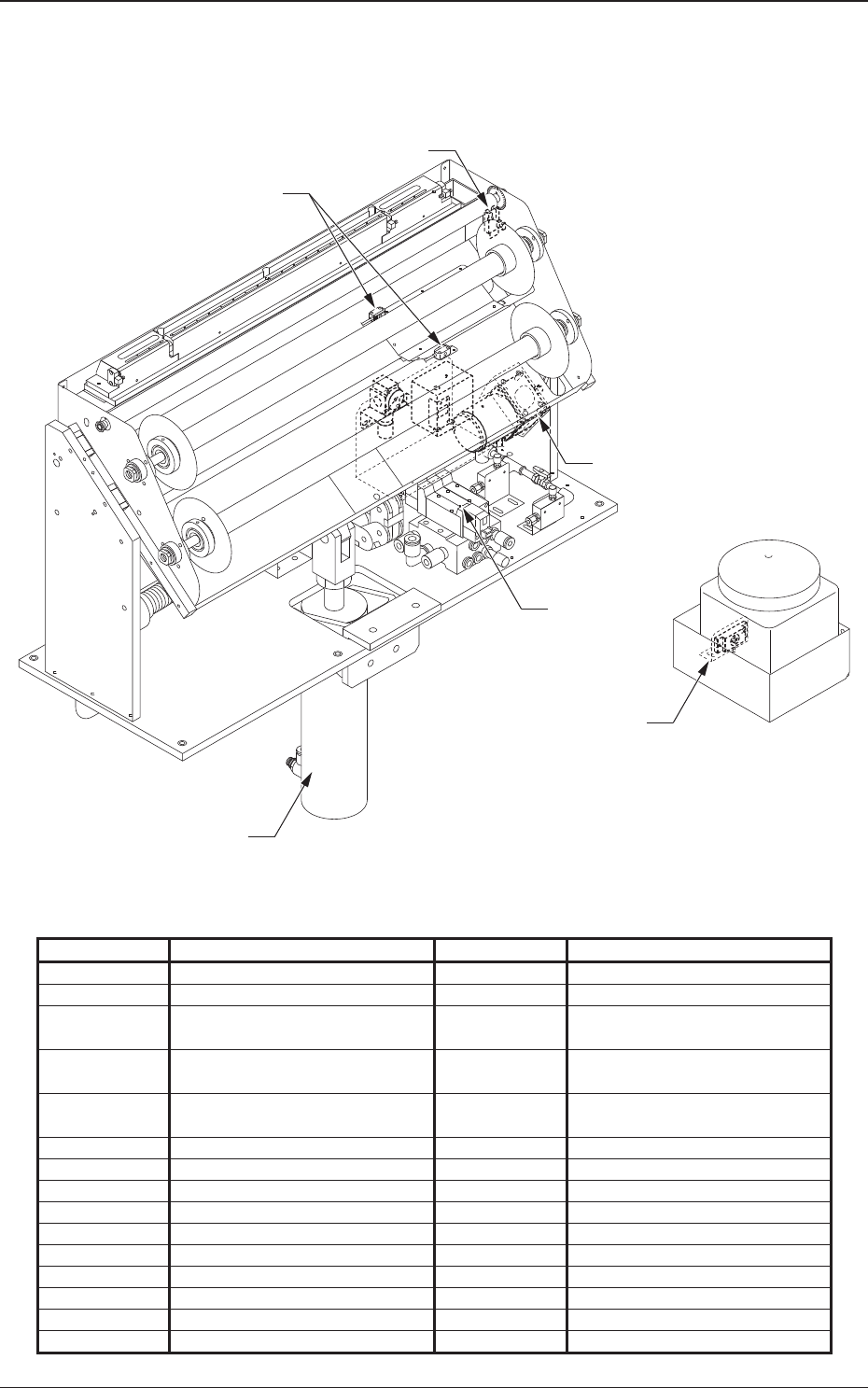

清洁部
Symbols Name Symbols Name
B80 Solvent Shortage Alarm M02 Paper Roll-Up Motor
B81 Cleaning Nozzle Upper Limit Y56 Solvent Dispense Pump
B82
Cleaning Nozzle Lower
Limit
Y57
Chuck Suction
B83 Paper Roll-Up Pitch
Detection
Y59 Cleaning Nozzle U/D
Upward Movement
B84
Paper Shortage Alarm Y5A Cleaning Nozzle U/D
Downward Movement
0908-001
Y57
B84
Y56
B81
B82
B83
Y59
Y5A
M02
B80
2-11
5OM-1513

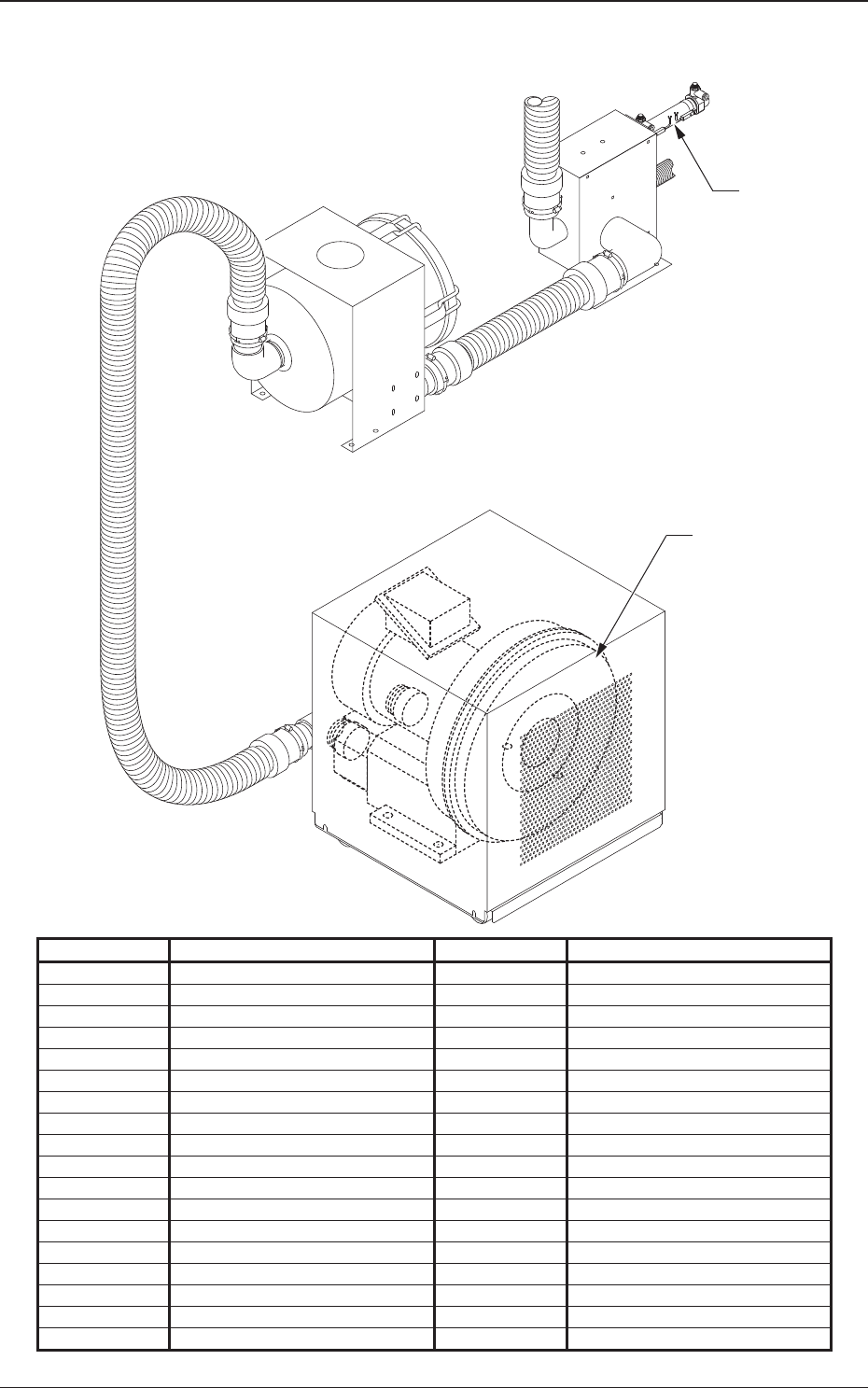

真空抽吸部 ( 吹风机 )
Symbols Name Symbols Name
B85 Cleaning Suction Side M01 Blower Motor
B86
Chuck Suction Side
0908-001
B85
B86
M01
