5OM-1513-001_w - 第69页
真空抽吸部 ( 吹风机 ) Symbols Name Symbols Name B85 Cleaning Suction Side M01 Blower Motor B86 Chuck Suction Side 0908-001 B85 B86 M01 2-12 5OM-1513
清洁部
Symbols Name Symbols Name
B80 Solvent Shortage Alarm M02 Paper Roll-Up Motor
B81 Cleaning Nozzle Upper Limit Y56 Solvent Dispense Pump
B82
Cleaning Nozzle Lower
Limit
Y57
Chuck Suction
B83 Paper Roll-Up Pitch
Detection
Y59 Cleaning Nozzle U/D
Upward Movement
B84
Paper Shortage Alarm Y5A Cleaning Nozzle U/D
Downward Movement
0908-001
Y57
B84
Y56
B81
B82
B83
Y59
Y5A
M02
B80
2-11
5OM-1513
真空抽吸部 ( 吹风机 )
Symbols Name Symbols Name
B85 Cleaning Suction Side M01 Blower Motor
B86
Chuck Suction Side
0908-001
B85
B86
M01
2-12
5OM-1513

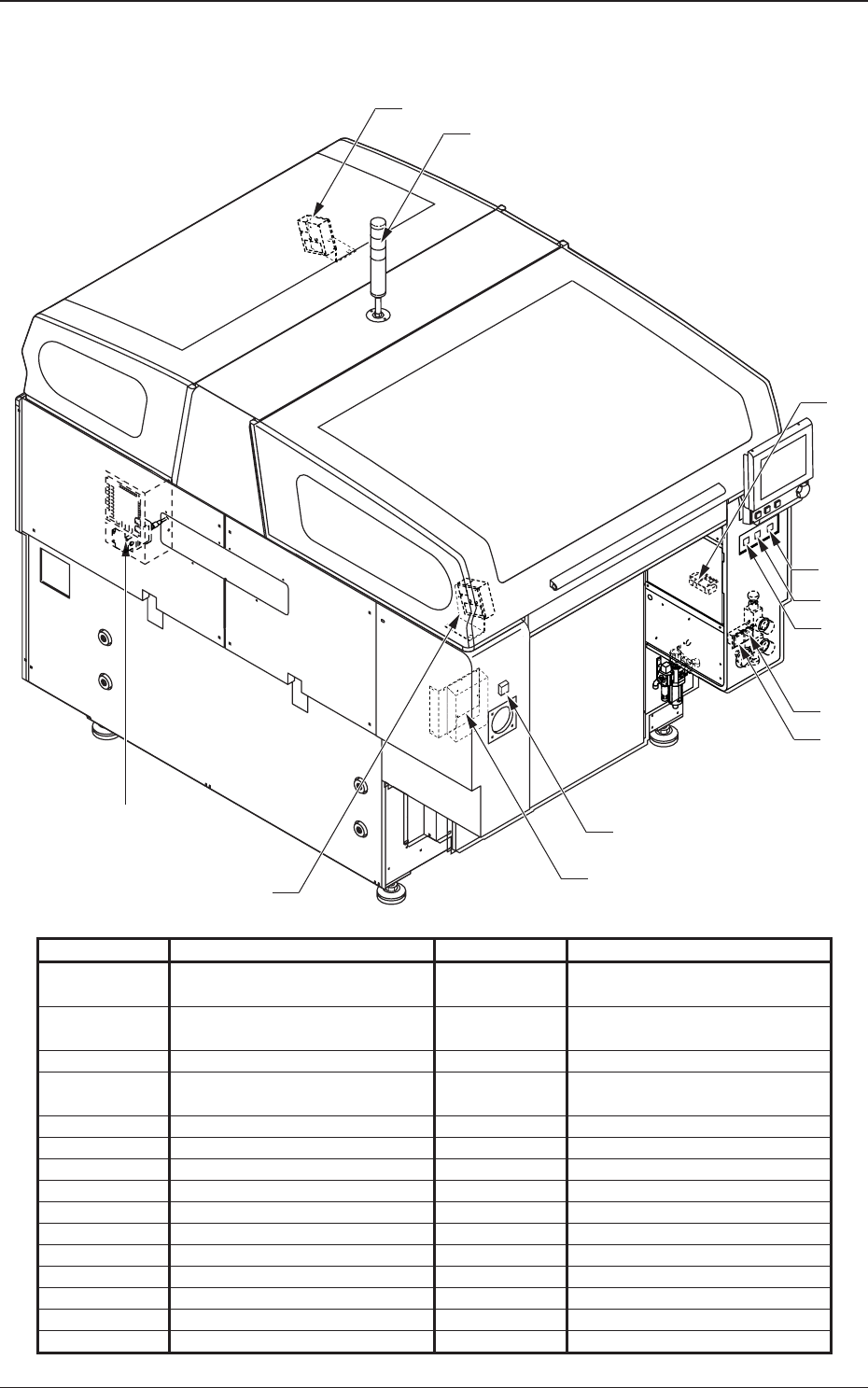

机械周围 ( 正面、左侧面 )
Symbols Name Symbols Name
S05 Safety Door Unlock (Front) Y54 PCB Horizontal Clamp
Forward Side
H05 Safety Door Unlock LED
(Front)
Y55 PCB Horizontal Clamp
Backward Side
S12
Safety Door (Front Side) Y90 Electroneumatic Regulator
S13 Safety Door (Cleaning
Section)
H24
Light Tower (Green)
S14
Safety Door (Rear Side) H25 Light Tower (Yellow)
S15 Air Pressure Detection H26 Light Tower (Red)
B4A
Vacuum Swich H27 Buzzer
U09 I/O PCB
0908-001
N80
S14
Y54
Y55
N82
N81
H26
H25
H24
H27
S12
S05
H05
U09
Y90
S13
B4A
S15
2-13
5OM-1513
