机械周围 ( 背面、右侧面 ) Symbols Name Symbols Name S06 Safety Door Unlock (Rear) M06 Internal Fan 1 H06 Safety Door Unlock LED (Rear) M07 Internal Fan 2 S1 1 Emergency Stop (Rear Side) U07 I/O PCB 0908-001 S06 H06 S1 1 M07 M06 U0…

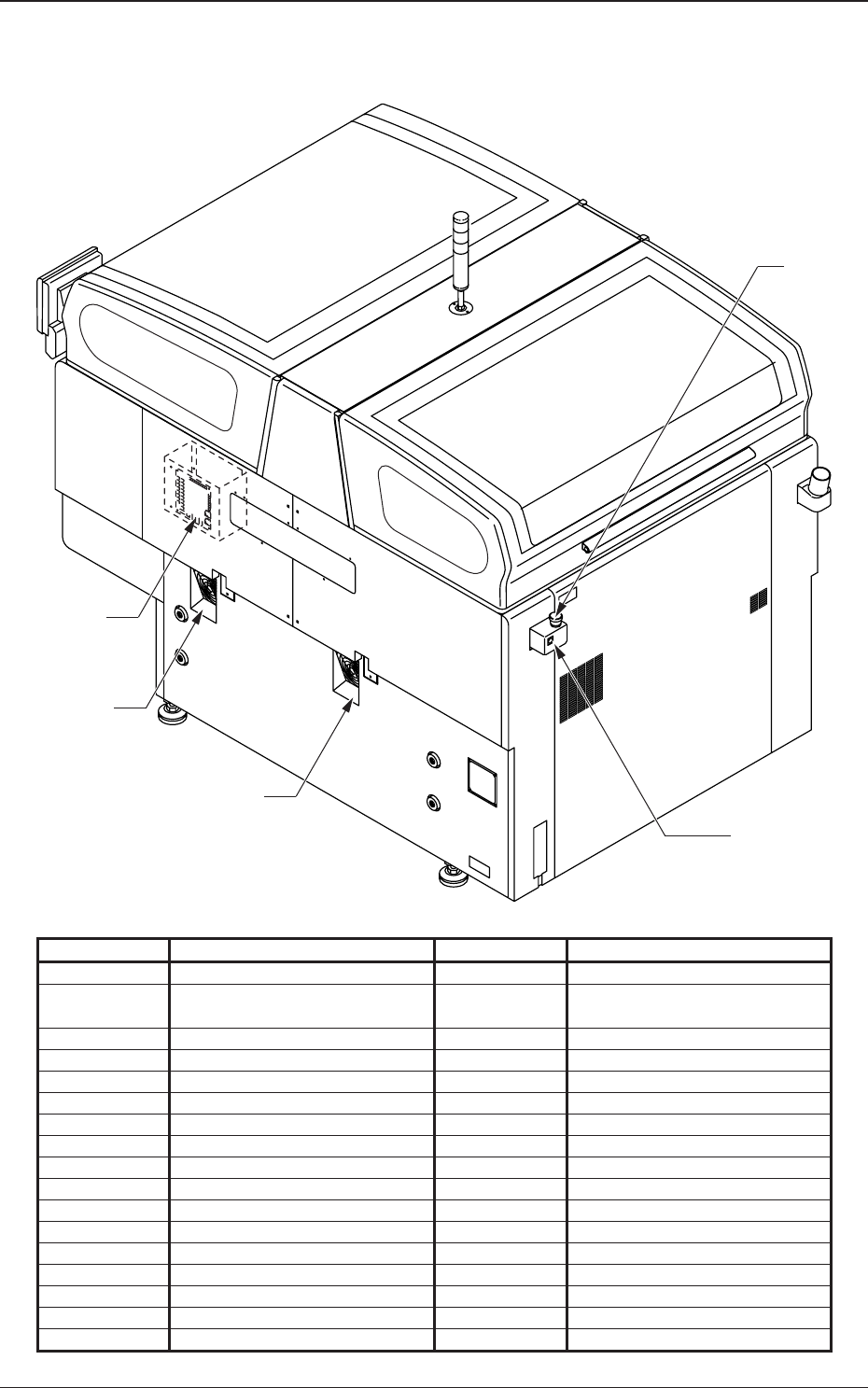

机械周围 ( 正面、左侧面 )
Symbols Name Symbols Name
S05 Safety Door Unlock (Front) Y54 PCB Horizontal Clamp
Forward Side
H05 Safety Door Unlock LED
(Front)
Y55 PCB Horizontal Clamp
Backward Side
S12
Safety Door (Front Side) Y90 Electroneumatic Regulator
S13 Safety Door (Cleaning
Section)
H24
Light Tower (Green)
S14
Safety Door (Rear Side) H25 Light Tower (Yellow)
S15 Air Pressure Detection H26 Light Tower (Red)
B4A
Vacuum Swich H27 Buzzer
U09 I/O PCB
0908-001
N80
S14
Y54
Y55
N82
N81
H26
H25
H24
H27
S12
S05
H05
U09
Y90
S13
B4A
S15
2-13
5OM-1513
机械周围 ( 背面、右侧面 )
Symbols Name Symbols Name
S06
Safety Door Unlock (Rear) M06 Internal Fan 1
H06
Safety Door Unlock LED
(Rear)
M07 Internal Fan 2
S11 Emergency Stop (Rear Side) U07 I/O PCB
0908-001
S06
H06
S11
M07
M06
U07
2-14
5OM-1513

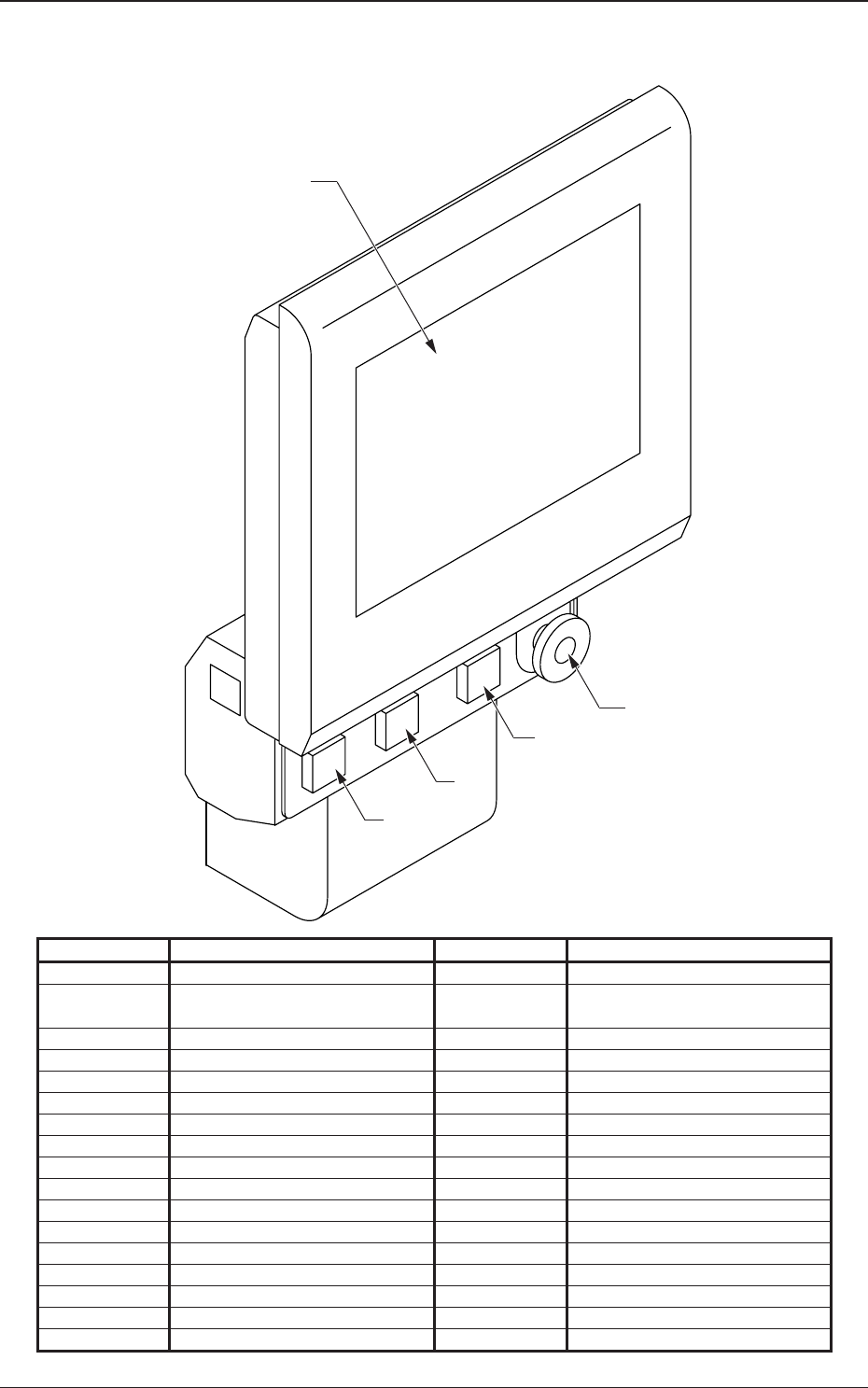

机械周围 ( 操作台 )
Symbols Name Symbols Name
S01 Power ON S04 STOP
H01 Power ON LED S10 Emergency Stop (Operation
Panel)
S03 START H00 Touch Panel Monitor
H03 START LED
0908-001
S10
H00
S01
H01
S03
H03
S04
2-15
5OM-1513
