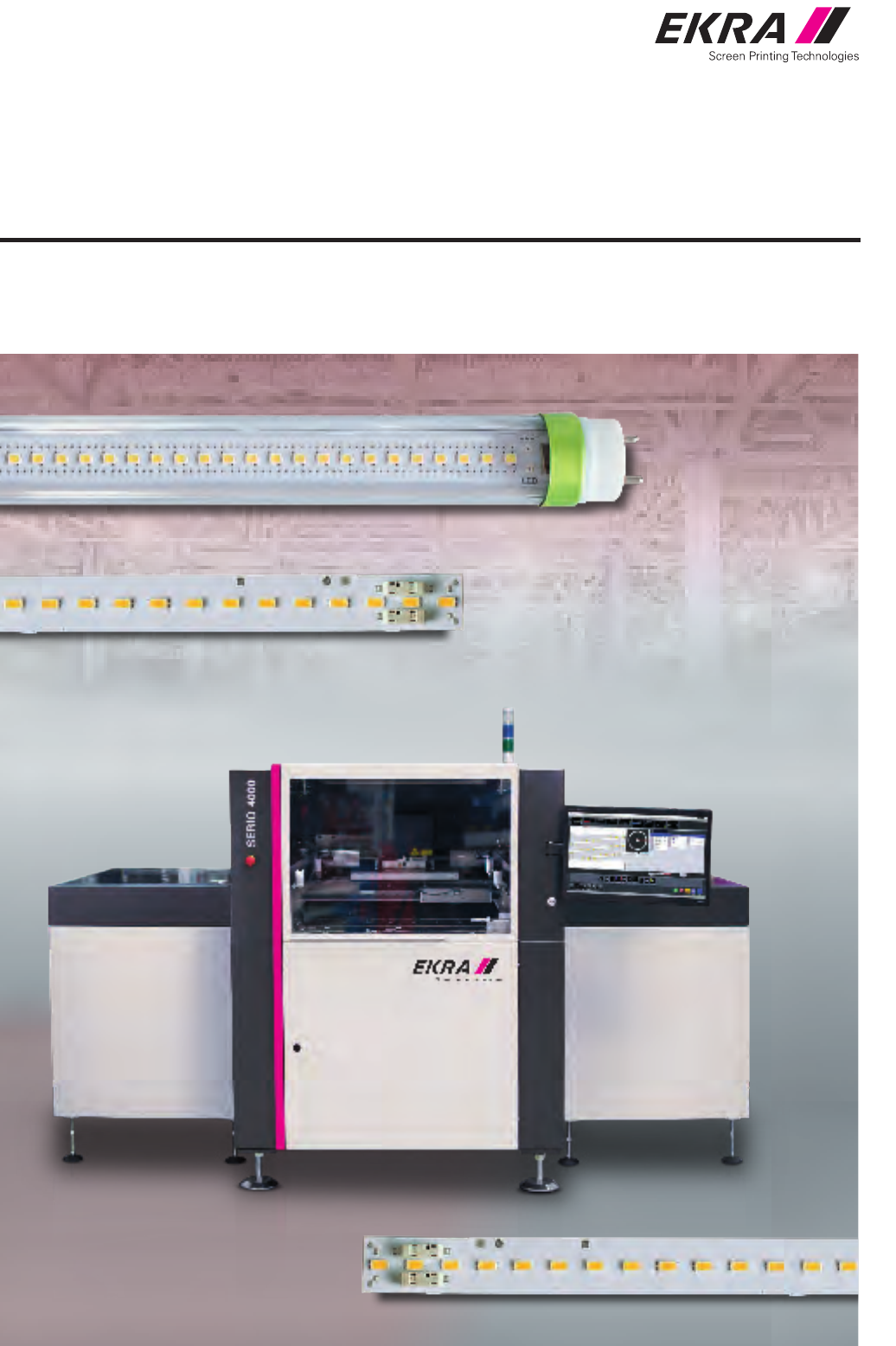

SERIO 4000 Multistep
SPECIALISTS IN
SCREEN & STENCIL PRINTING
Herausforderung:
DruckvonübergroßenLeiterplatten.
Lösungsansatz /
Konzept:
NachderBedruckungvonsehrgroßenLeiterplatten
(LP),sindteilweiseUngenauigkeitenfestzustellen,
welcheüberdiegesamteSubstratlängezunden
sind(Stretch).EKRAhathierzueineinnovativeLö-
sungentwickelt,umdieszureduzierenundeine
hoheGenauigkeitbeiderBedruckungzuerzielen.
Die Basis für dieses Konzept bildet ein Druck
in mehreren Segmenten. Die Segment können
unterschiedlich lang sein und ein eigenes Layout
erhalten.Das2.Segmentmusslängeralsdas1.
und3.sein.
Challenge:
Printing of extremely-long PCBs.
Solution Approach /
Concept:
Inaccuracy issues during manufacturing of very big
PCBs appear as random print offsets, which are
stretched across the overall substrate. EKRA has
developed an innovative solution to minimize this
effect and achieve higher accuracy by printing such
PCBs in segments.
The concept suggests a way for the printing
process to be performed in a cyclic index-manner
operation. The size and layout of the segemnts
can be different. Segment 2 must be longer than
segment 1, 3.
SERIO 4000 Multistep
Printing XXXL PCB´s
Schablone mit drei Segmenten / Stencilwiththreesegments
Patent
Pending
SPECIALISTS IN
SCREEN & STENCIL PRINTING
A south-to-north movement of the squeegee is
necessary
Therstsegmentwillbeprintedwiththe
stencil-layout 1
The second segment with the stencil-layout 2
The third segment with the stencil-layout 3
A second PCB comes into the machine after all
three segments were printed: The following
PCB (i.e. PCB 2) will get in the machine until
segment 3 is oriented in the printing position. This
process is necessary to be performed, in order
to “take back” the solder paste, which after
theprintingoftherstPCBislocatedontheposi-
tion of layout 3.
RakelrichtunginSüd/Nord-Richtungistnötig
ErstesSegmentwirdmitSchablonen-Layout1
bedruckt
DaszweiteSegmentmitSchablonen-Layout2
Das dritte Segment mit Schablonen-Layout 3
Eine zweite LP läuft ein, nachdem alle drei Seg-
mente bedruckt wurden: Die nachfolgende Leiter-
platte (Leiterplatte 2) wird soweit in das Drucksy-
stemtransportiert,bisSegment3inDruckposition
ausgerichtet ist. Dies ist notwendig, um die Lot-
paste,dienachdemBedruckender ersten Leiter-
plattehinterLayout3liegtwiederaufzunehmen.

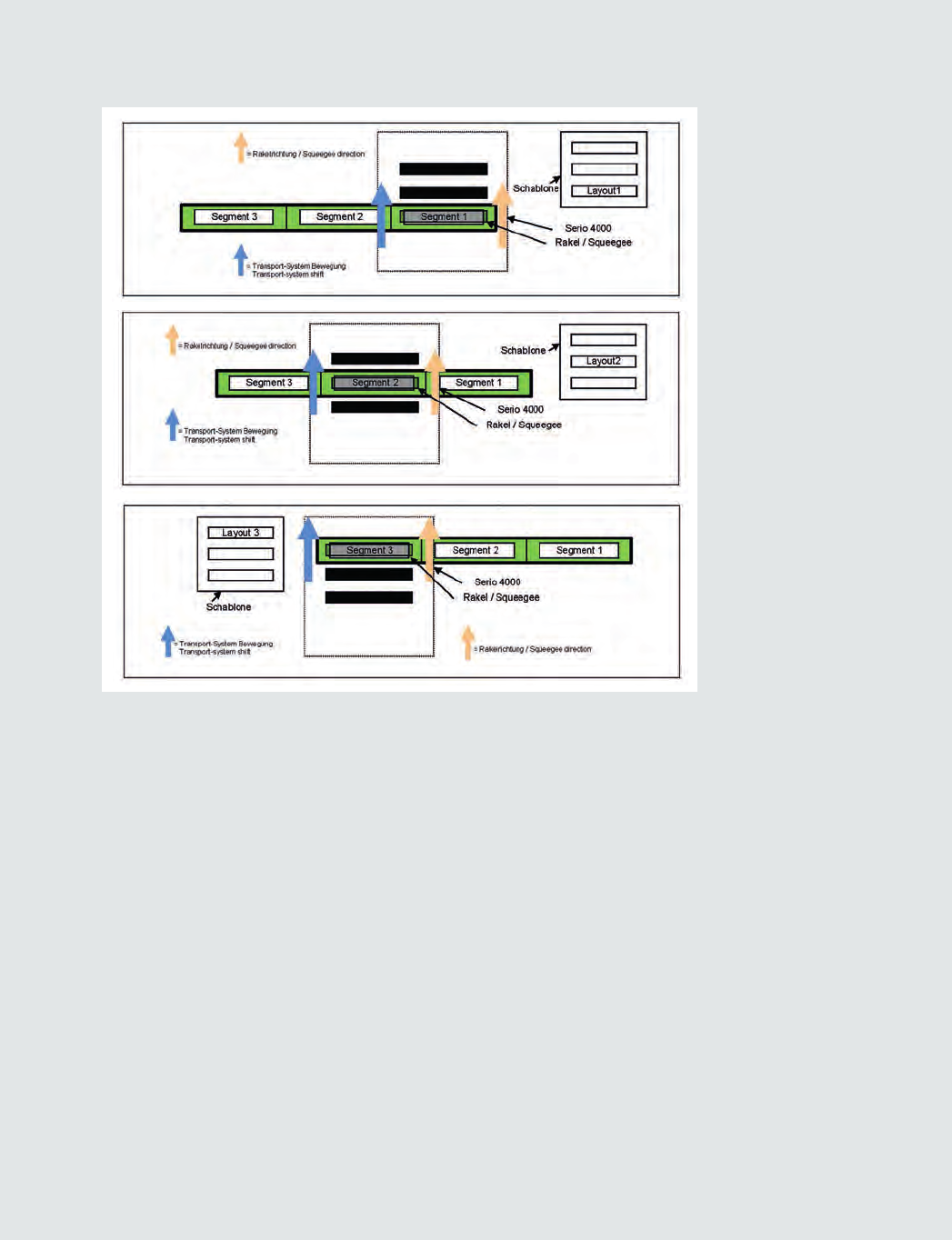

Drei Layouts in
der Schablone
Erste LP, erstes
Segmentbedrucken
Three layouts on
the stencil
FirstPCB,rst
segment print
Drei Layouts in
der Schablone
ErsteLP,zweites
Segmentbedrucken
Three layouts on
the stencil
First PCB, second
segment print
Drei Layouts in
der Schablone
Erste LP, drittes
Segmentbedrucken
Three layouts on
the stencil
First PCB, third
segment print
