12-nozzle nozzle changer DLM 2_20211123_105928 - 第9页
12-nozzle nozzle changer DLM 2 Page 9 / 9 23.11.2021 Pos. Item no. Description Part marking 03020667-04 BOARD / 1-WIRE HUB PPW 03021247-01 CABLE / CONNECTION CABLE 1 WIRE PPW 00371577-01 DISTANCE BOLT UNC 4/40 L5MM I/A 6…
12-nozzle nozzle changer DLM 2
Page 7 / 9 23.11.2021
12-nozzle nozzle changer DLM 2
Page 8 / 9 23.11.2021
Pos. Item no. Description Part marking
00119661-03 NOZZLE CHANGER HF/X/D3 12SEG.
C+P HEAD
03041752-01 BASIC PACKAGE NOZZLE CHANGER
12-NOZZLE RV HF/X
2 03001855S01 NOZZLE CHANGER, 12-NOZZLE
HEAD, HF
SPARE PART
3 03004362-02 SUPPORT
4 00323044-06 NOZZLE MAGAZINE 7/9XX SPARE PART
5 03001884-01 SLIDER (SIPLACE HF)
6 00336134-01 SLIDING BLOCK
7 00337392S01 DRIVE COMPLETE SPARE PART
8 00334206S01 VALVE COMPLETE SPARE PART
9 00310021-01 SILENCER U-M5 NR4645 STANDARD PARTS
10 00341642-01 SLEEVE AS PER DRAWING SPARE PART
11 00336550-02 BRACKET, FRONT SPARE PART
12 00331810-03 SLIDING GUIDE
13 00336549-01 BRACKET, BACK SPARE PART
14 00317840-02 CHECK PLATE
15 00343667-01 DISTANCE BOLT TYPE B I/A-
M3X28-ST CHRO
16 00317353S02 CONTROL UNIT NOZZLE CHANGER SPARE PART
17 00306438-01 DISTANCE BOLT TYPE B I/A-
M3X50-ST ZN
18 00359779-01 DIN 6325 - 3M6 X 10-ST
19 00095614-01 DIN 6325 - 3M5 X 18-ST Spare Part
21 00334212-01 KABEL: STEUERPL.
PIPETTENWECHS. - VENTIL
24 00322558-01 SN 213307-H-M3 X 5-A2 STANDARD PARTS
25 00328251-01 SN 213307-H-M2.5 X 8-A2
27 00095311-01 DIN 965-M4 X 8-8.8,VERCU+NI
28 00313069-01 DIN912-M4 X 10-A2-70
32 03006520-01 COMPRESSED AIR TUBE VALVE -
ROTARY CYL. L=105
33 03006022-01 REJECT BOX NOZZLES COMPLETE

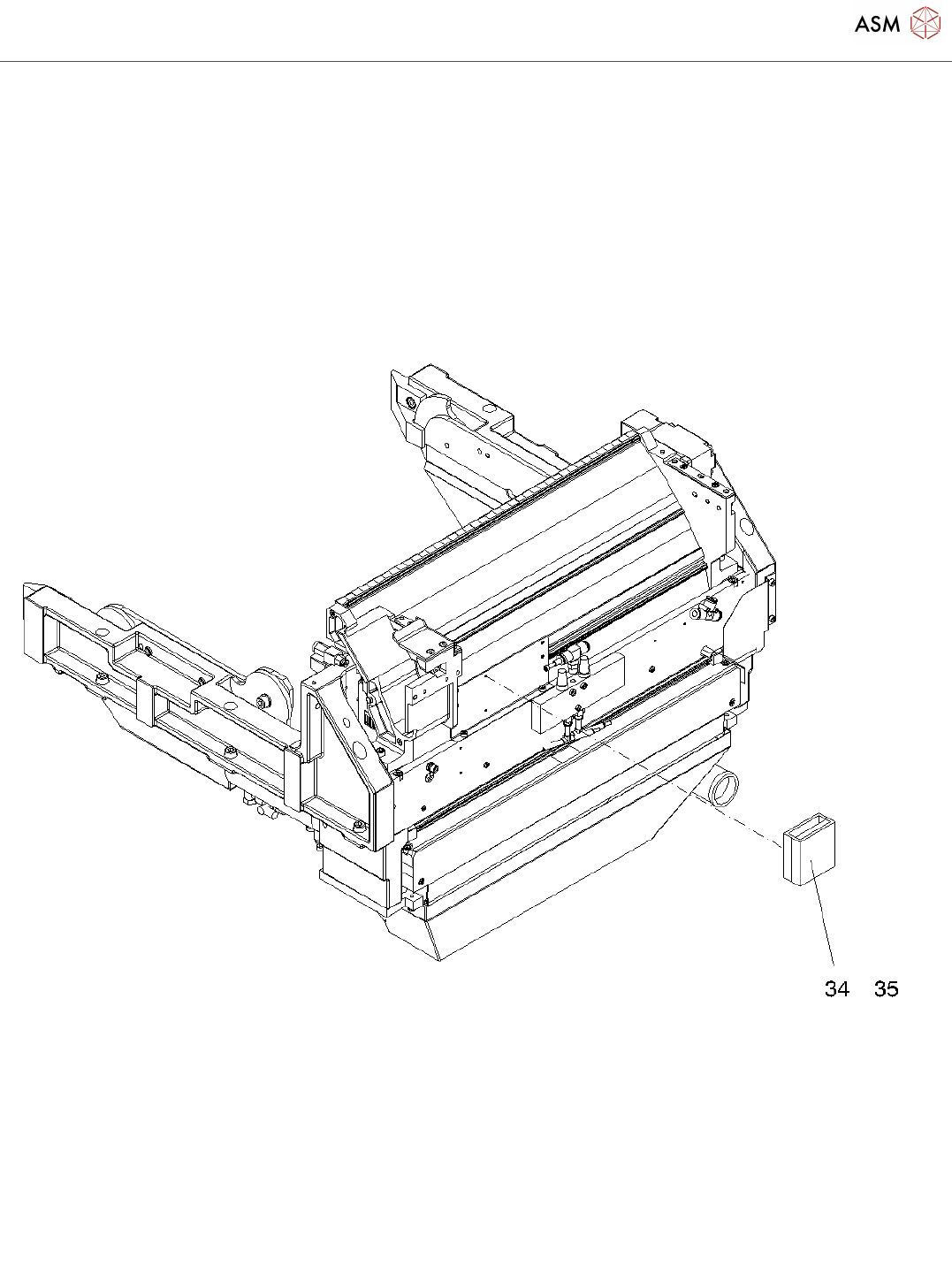

34 03025027S01 RETRFIT KIT / 1-WIRE HUB PPW
35 03020668-01 MODULE / 1-WIRE HUB NC SPARE PART
03021248-01 HOUSING JM-22 OVERWORKED
12-nozzle nozzle changer DLM 2
Page 9 / 9 23.11.2021
Pos. Item no. Description Part marking
03020667-04 BOARD / 1-WIRE HUB PPW
03021247-01 CABLE / CONNECTION CABLE 1
WIRE PPW
00371577-01 DISTANCE BOLT UNC 4/40 L5MM I/A
6KT5,0
00119663-01 NOZZLE CHANGER 2 HF 12 SEG. C
& P HEAD
38 03001855S01 NOZZLE CHANGER, 12-NOZZLE
HEAD, HF
SPARE PART
39 03005337-03 MOUNT, NC OPTION SPARE PART
