MODEL GXH-1JS
1012-004
99
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-10
905 6301314860 ROD 1 829N--010-205 216C0772
913 6301311616 PIN,GUIDE 14 829N--010-113 216F0902
920 6301505206 PULLEY,TIMING 2 829N--010-220 223Q0682
921
4110007805 RING C 20 2 829N--010-221 221K0084
922
6300765731 BEARING,RADIAL 4 829N--010-222 222D0298
923
6301272733 PULLEY,TIMING 6 829N--010-223 223Q0564
924
6301236537 PULLEY,FLAT 2 829N--010-224 223M0050
925
6301236780 BELT,TIMING 2 829N--010-225 223L0261
926
6301337104 BELT,TIMING 1 829N--010-226 223L0282
927
6300882988 BEARING,UNIT 1 829N--010-227 222F0076
928
6300011272 BEARING,RADIAL 1 829N--010-228 222D0006
929
6301236490 PULLEY,TIMING 1 829N--010-229 223Q0545
930
6301236506 PULLEY,TIMING 1 829N--010-230 223Q0546
931
6301241340 MOTOR,AC-SERVO 1 -M44 829N--010-231 4M150196
939 6301358345 PLATE 1 829N--010-269 211DA497
951 6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
952
6300007664 BOLT,HEX-SCT 4 M4X20 221A0021
955
4110512804 SCR TRS 4X8 4 M4X8 TRS 221E0533
956 4111412905 WASHER SPR 4 6 SW4 221H0284
958
4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
962
4111410505 NUT HEX 5 2 M5 221F0085
MEMO
MODEL GXH-1JS
0602-001
101

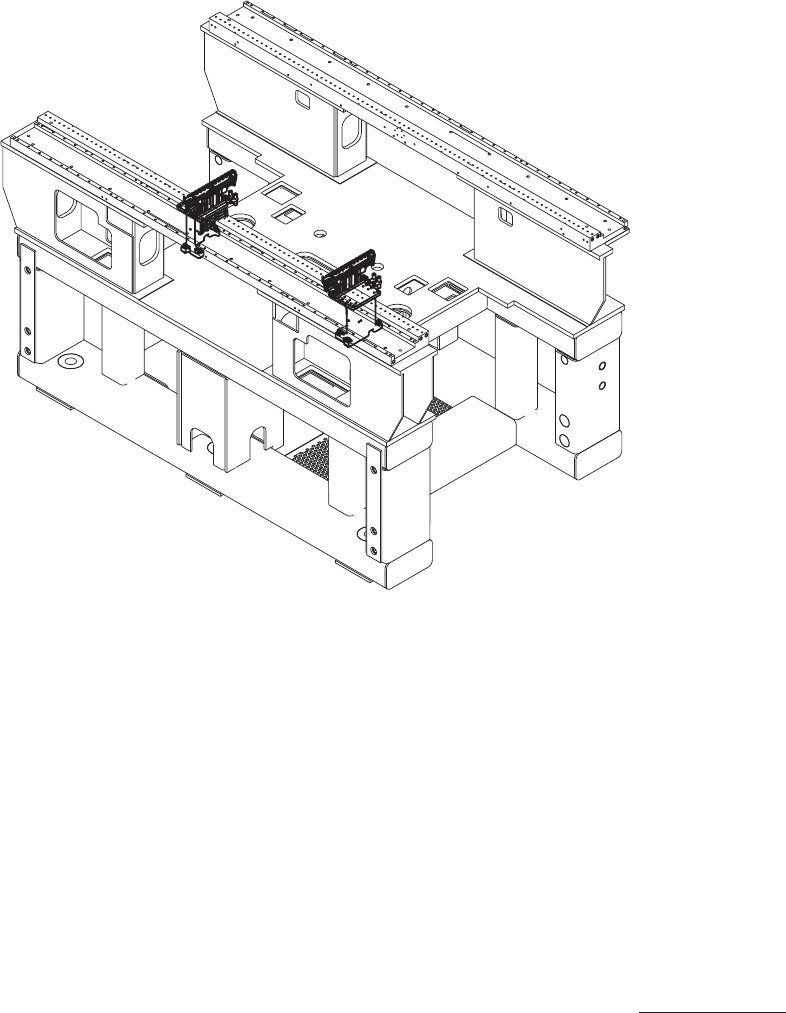

Fig. H
ノズルストッカ
NOZZLE STOCKER
