MODEL GXH-1JS 0710-001 124 フィーダベース部 FEEDER BASE SECTION Fig. QA-1 フィーダベース Feeder Base 1 27 28 89 . 78 . 79 89 . 78 . 79 53 67 . 80 . 81 51 . 76 . 77 5 6 19 87 33 34 35 36 37 6 4 42 66 72 70 72 66 8 3
MODEL GXH-1JS
0710-001
123

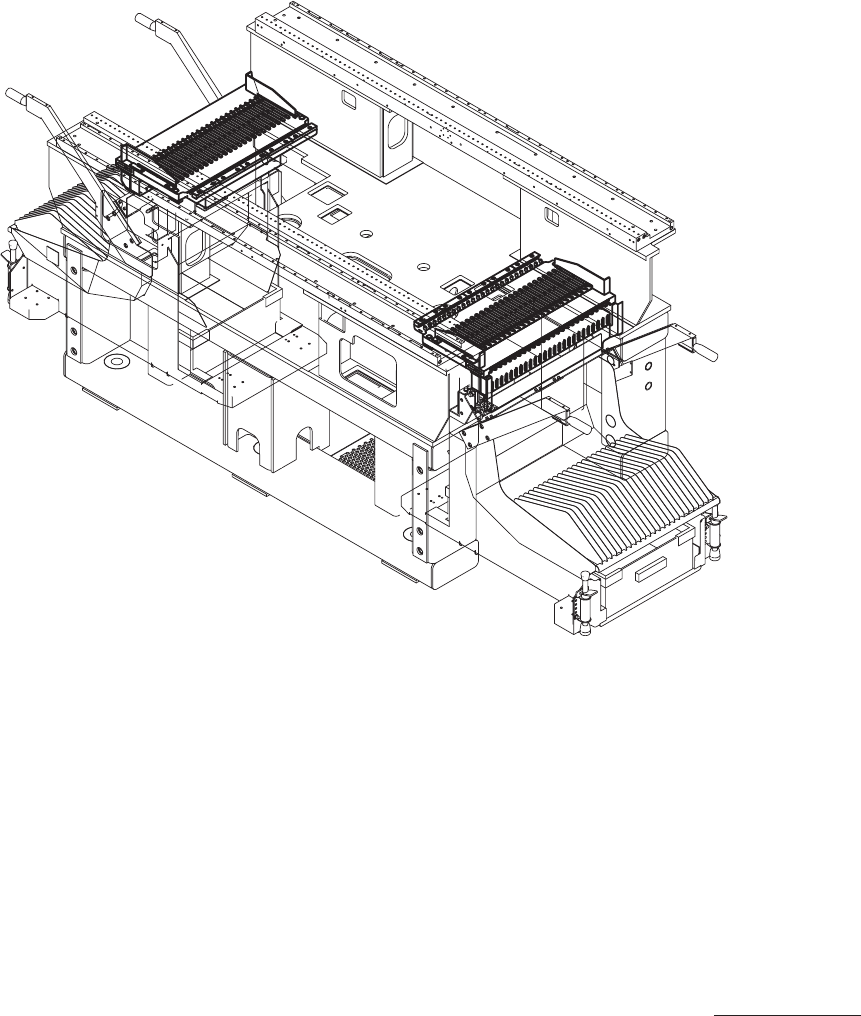

Fig. QA
フィーダベース部
FEEDER BASE SECTION
MODEL GXH-1JS
0710-001
124
フィーダベース部
FEEDER BASE SECTION
Fig. QA-1
フィーダベース
Feeder Base
1
27
28
89
.
78
.
79
89
.
78
.
79
53
67
.
80
.
81
51
.
76
.
77
5
6
19
87
33
34
35
36
37
6
4
42
66
72
70
72
66
8
3
MODEL GXH-1JS
1012-003
125
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301607023 BASE 1 829QA-010-001 210A2941
3 6301573878 BLOCK 5 829QA-010-003 211G5359
4 6301376561 BLOCK 1 829QA-010-004 211G4122
5 6301376578 BLOCK 1 829QA-010-005 211G4123
6 6301560960 MECH PARTS 2 829QA-010-006 226J2369
8
6301474625 PLATE 26 829QA-010-008 211DB81
1
19 6301253541 ROD 1 829QA-010-019 216C0713
27
6301298528 COVER 1 829QA-010-027 211A8958
28 6301298535 COVER 1 829QA-010-028 211A8959
33 6301572819 CYLINDER 1 829QA-010-103 224C0602
34
6301572833 AIR LINE EQPT 2 829QA-010-104 225B0575
35
6301249995 VALVE 1 829QA-010-105 225C0106
36
6301106083 PIPE FITTINGS 1 829QA-010-106 225F0467
37
6300036534 AIR LINE EQPT 2 829QA-010-107 225B0059
42
6301260068 NAME PLATE,INDEX 1 829QA-010-112 6P460124
49 6301268064 PIPE FITTINGS 1 829QA-010-191 225F0577
51
4110418908 SCR PAN 3X6 2 829QA-010-501 221E0497
53
6300007527 BOLT,HEX-SCT 78 829QA-010-503 221A0007
66
6300007756 BOLT,HEX-SCT 4 829QA-010-516 221A0030
67
6300007763 BOLT,HEX-SCT 10 829QA-010-517 221A0031
70
6300933192 BOLT,HEX-SCT 2 829QA-010-520 221A0261
72
6300007763 BOLT,HEX-SCT 2 829QA-010-522 221A0031
76
4111412806 WASHER SPR 3 2 829QA-010-526 221H0281
77
4111413902 WASHER V 3X7X0.5 2 829QA-010-527 221H0312
78
4111412905 WASHER SPR 4 4 829QA-010-528 221H0284
79
4111414008 WASHER V 4X9X0.8 4 829QA-010-529 221H0315
80
4111416705 WASHER SPR 5 10 829QA-010-530 221H0287
81
4111414107 WASHER V 5X10X1 10 829QA-010-531 221H0318
87
4111411007 NUT HEX 8 1 829QA-010-537 221F0135
89
6300007626 BOLT,HEX-SCT 4 829QA-010-539 221A0017
QA-1
2Unit/1Machine
