MODEL GXH-1JS 0701-002 142 カバー部 COVER SECTION Fig. G-4 パネルフレーム Panel Frame See Fig.B-1 Key No.1 354 338 318 326 307 320 336 330 332 331 317 335 319 308 326 337 362 . 372 . 377 362 . 372 . 377 362 . 372 . 377 362 . 372 . …
MODEL GXH-1JS
1012-003
141
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
202 6301317090 COVER 1 829G--010-202 211A9248
203 6301299853 COVER 1 829G--010-203 211A8983
205 6301299877 COVER 1 829G--010-205 211A8985
206 6301299884 COVER 1 829G--010-206 211A8986
208 6301269160 PLATE 1 829G--010-208 211D9603
209 6301360119 COVER 2 829G--010-209 211A9662
210 6301329543 BRACKET 4 829G--010-210 211F9212
219 6301360713 COVER 1 829G--010-609 211A9670
220 6301360843 COVER 1 829G--010-610 211A9674
221 6301337319 COVER 1 829G--010-611 21
1A9460
222 6301337326 COVER 1 829G--010-612 211A9461
229 6301369549 PLATE 1 829G--010-629 211DA579
232 6300000986 ACCESSORY,MOT-M 1 829BL-010-172 23M00007
242
6300000986 ACCESSORY,MOT-M 1 829BS-010-172 23M00007
253
6301241616 SWITCH,BUTTON 2 -S121 829G--010-153 4S1B0151
261 6300007732 BOLT,HEX-SCT 8 M5X8 221A0028
263
6300007756 BOLT,HEX-SCT 12 M5X12 221A0030
264
4110423001 SCR PAN 4X10 8 M4X10 PAN 221E0500
265 4111139109 SCR TRS 5X10 28 M5X10 TRS 221E0534
267 4111416705 WASHER SPR 5 20 SW5 221H0287
268
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
269
4111414107 WASHER V 5X10X1 20 FW5 221H0318
G-3
MODEL GXH-1JS
0701-002
142

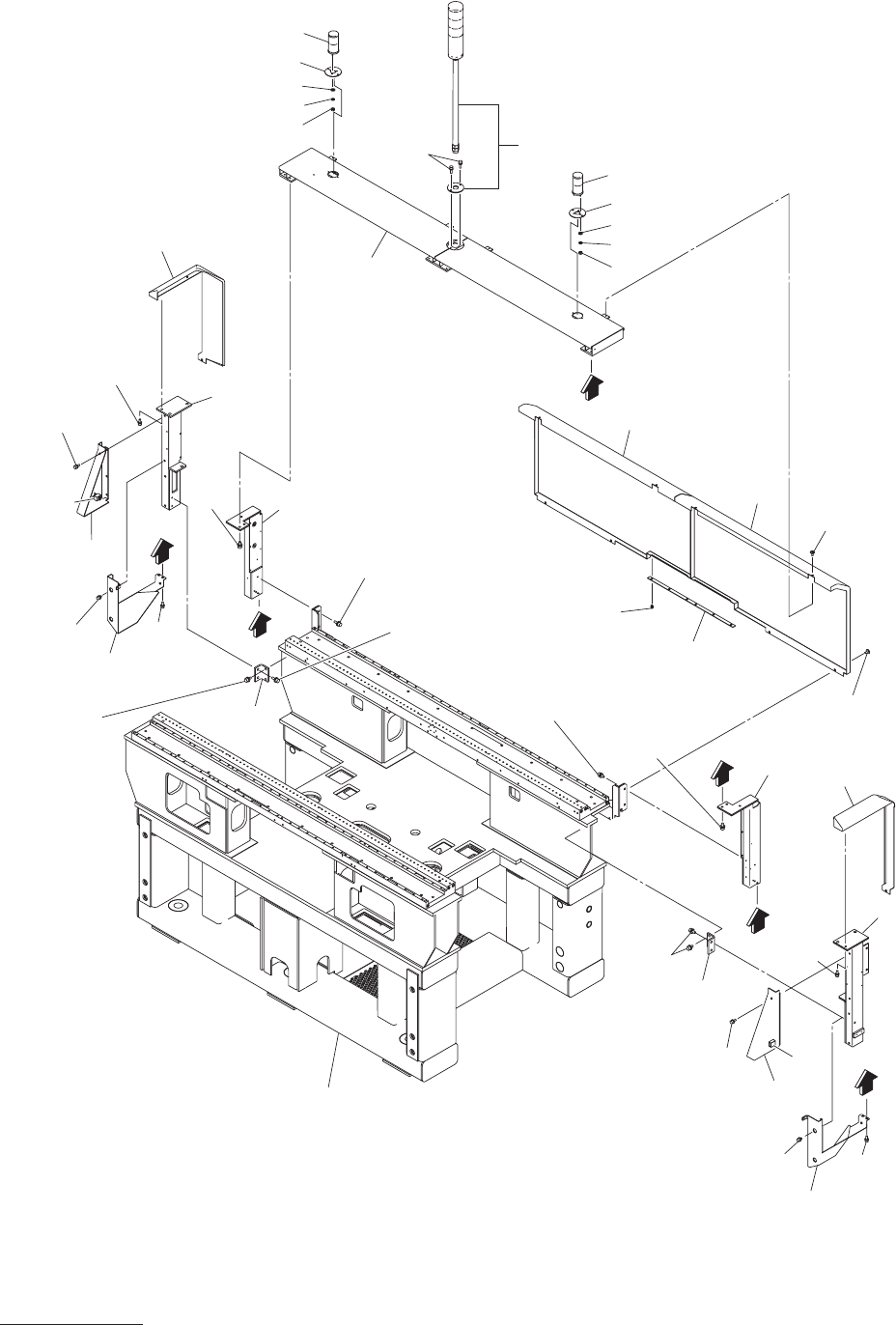

カバー部
COVER SECTION
Fig. G-4
パネルフレーム
Panel Frame
See Fig.B-1
Key No.1
354
338
318
326
307
320
336
330
332
331
317
335
319
308
326
337
362
.
372
.
377
362
.
372
.
377
362
.
372
.
377
362
.
372
.
377
362
.
372
.
377
362
.
372
.
377
363
.
372
.
377
363
.
372
.
377
364
.
373
.
378
365
.
373
.
378
365
.
373
.
378
364
.
373
.
378
364
.
373
.
378
364
.
373
.
378
364
.
373
.
378
366
366
376
371
367
363
.
372
.
377
356
339
356
339
C
C
B
B
A
A
343
361
.
371
.
376
351
.
352
351
.
352
376
371
367
MODEL GXH-1JS
1012-005
143
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
307 6301360126 COVER 1 829G--010-007 211A9663
308 6301360133 COVER 1 829G--010-008 211A9664
317 6301472881 STAY 1 829G--010-617 211J1401
318 6301473185 STAY 1 829G--010-618 211J1404
319 6301368023 STAY 1 829G--010-619 211J1297
320 6301369532 STAY 1 829G--010-620 211J1300
326 6301336909 BRACKET 2 829G--010-626 211F9331
330 6301382470 FRAME 1 829G--010-600 210B3910
331
6301363776 COVER 1 829G--010-601 211A9701
332 6301363783 COVER 1 829G--010-602 211A9702
335 6301364131 COVER 1 829G--010-605 211A9717
336 6301364148 COVER 1 829G--010-606 211A9718
337 6301458649 COVER 1 829G--010-607 211AA751
338 6301458656 COVER 1 829G--010-608 211AA752
339 6301336824 PLATE 2 829G--010-039 211DA241
343 6301364414 PLATE 1 829G--010-643 211DA535
351 6300002713 SWITCH,BUTTON 2 -S111
829G--010-151 4S1B0032
352 6300000382 ACCESSORY,SW 2 829G--010-152 23H20003
354
6301251752 PILOT LAMP 1 H1 829G--010-154 4T3A0205
356 6301231341 PILOT LAMP 2 829G--010-156 4T3A0201
361
6300007619 BOLT,HEX-SCT 10 M4X8 221A0016
362
6300007732 BOLT,HEX-SCT 12 M5X8 221A0028
363
6300007756 BOLT,HEX-SCT 8 M5X12 221A0030
364
6300007879 BOLT,HEX-SCT 12 M6X12 221A0042
365
6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
366
4111139109 SCR TRS 5X10 10 M5X10 TRS 221E0534
367 4111410307 NUT HEX 4 6 M4 221E0533
371
4111412905 WASHER SPR 4 12 SW4 221H0284
372
4111416705 WASHER SPR 5 20 SW5 221H0287
373
4111413001 WASHER SPR 6 16 SW6 221H0289
376
4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
377
4111414107 WASHER V 5X10X1 20 FW5 221H0318
378
4111414305 WASHER V 6X12.5X1.6 16 FW6 221H0320
G-4
