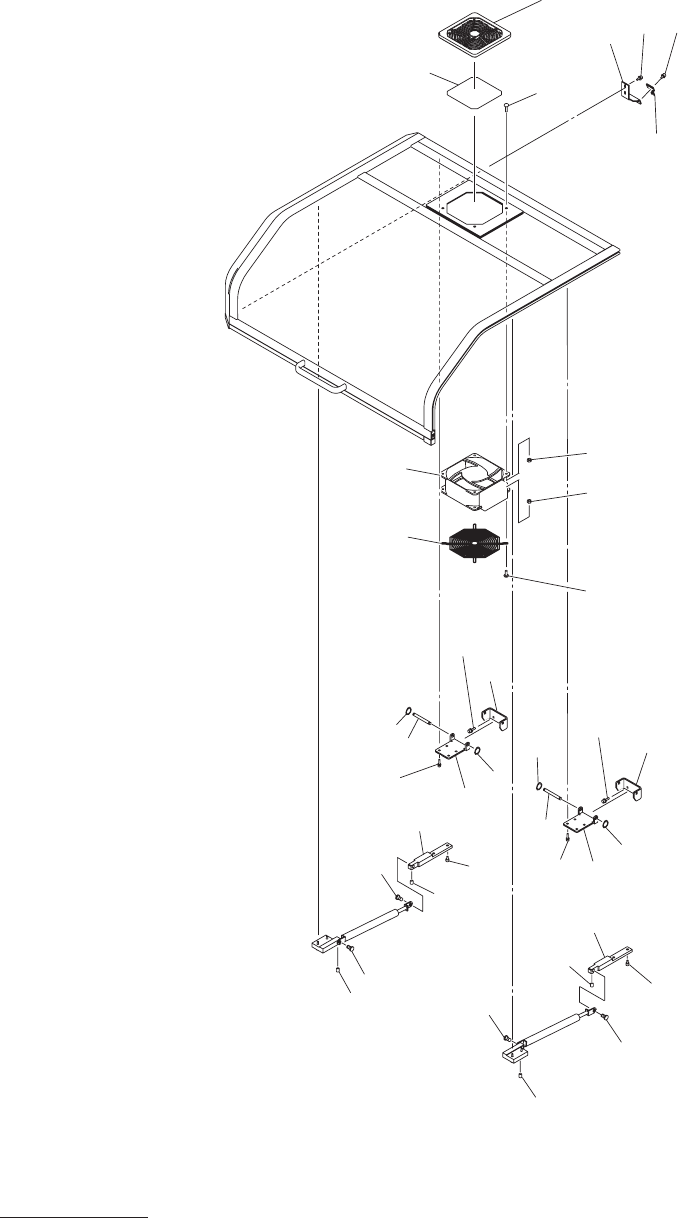

MODEL GXH-1JS 0710-003 146 カバー部 COVER SECTION Fig. G-7 カバー部（奥） Cover Section-Rear 659 657 658 651 664 . 673 . 678 664 . 673 . 678 663 . 672 . 677 678 . 673 . 665 663 . 672 . 677 678 . 673 . 665 616 617 619 620 619 670 62…
MODEL GXH-1JS
1012-005
145
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
505 6300885361 ACCESSORY,SW (KEY) 1 829G--010-405 23H20053
516 6301491226 BRACKET 2 829G--010-016 211FB239
517 6301491240 PIN,HINGE 2 829G--010-017 216D0546
519
6301491233 BRACKET 2 829G--010-019 211DB240
520 6301265346 BLOCK 2 829G--010-020 211G3493
521 6301508740 PIN,HINGE 4 829G--010-021 216D0550
522
4110010409 RING E 6 4 829G--010-062 221K0099
528
6301273136 PLATE 1 829G--010-028 211D9630
551 6300764932 ACCESSORY,MOT-M 1 829G--010-161 23M00038
557
6300684278 MOTOR,INDUCTION 1 M102 829G--010-157 4M100029
558 6300684292 ACCESSORY,MOT-M 1 829G--010-158 23M00033
559
6300746853 ACCESSORY,MOT-M (FILTER) 1 829G--010-159 23M00037
561
6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
562
6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
563
6300007770 BOLT,HEX-SCT 8 M5X20 221A0032
564
6300007862 BOLT,HEX-SCT 4 M6X10 221A0041
565
6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
566
4110436803 SCR PAN 5X12 4 M5X12 PAN 221E051
1
567 4111406409 SCR PAN 5X16 4 M5X16 PAN 221E0512
568 4111410505 NUT HEX 5 8 M5 221F0085
569
6300008883 SET SCREW 4 M3X4 SET 221C0001
570 6300082296 SET SCREW 4 M4X4 SET 221C0027
571 4111412905 WASHER SPR 4 4 SW4 221H0284
572
4111416705 WASHER SPR 5 8 SW5 221H0287
573
4111413001 WASHER SPR 6 8 SW6 221H0289
576
4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
577
4111414107 WASHER V 5X10X1 20 FW5 221H0318
578
4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
G-6
MODEL GXH-1JS
0710-003
146
カバー部
COVER SECTION
Fig. G-7
カバー部（奥）
Cover Section-Rear
659
657
658
651
664
.
673
.
678
664
.
673
.
678
663
.
672
.
677
678
.
673
.
665
663
.
672
.
677
678
.
673
.
665
616
617
619
620
619
670
621
621
670
621
670
620
621
670
616
617
622
622
622
622
661
.
671
.
676
662
.
671
.
676
667
.
672
.
677
667
.
672
.
668
.
672
668
.
672
677
628
605
MODEL GXH-1JS
1012-005
147
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
605 6300885361 ACCESSORY,SW (KEY) 1 829G--010-405 23H20053
616 6301491226 BRACKET 2 829G--010-016 211FB239
617 6301491240 PIN,HINGE 2 829G--010-017 216D0546
619
6301491233 BRACKET 2 829G--010-019 211DB240
620 6301265346 BLOCK 2 829G--010-020 211G3493
621 6301508740 PIN,HINGE 4 829G--010-021 216D0550
622
4110010409 RING E 6 4 829G--010-062 221K0099
627
6301273129 PLATE 1 829G--010-027 211D9629
651 6300764932 ACCESSORY,MOT-M 1 829G--010-161 23M00038
657
6300684278 MOTOR,INDUCTION 1 M101 829G--010-157 4M100029
658 6300684292 ACCESSORY,MOT-M 1 829G--010-158 23M00033
659
6300746853 ACCESSORY,MOT-M (FILTER) 1 829G--010-159 23M00037
661
6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
662
6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
663
6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
664
6300007862 BOLT,HEX-SCT 8 M6X10 221A0041
665
6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
666
4110436803 SCR PAN 5X12 4 M5X12 PAN 221E051
1
667 4111406409 SCR PAN 5X16 4 M5X16 PAN 221E0512
668 4111410505 NUT HEX 5 8 M5 221F0085
669
6300008883 SET SCREW 4 M3X4 SET 221C0001
670 6300082296 SET SCREW 4 M4X4 SET 221C0027
671 4111412905 WASHER SPR 4 4 SW4 221H0284
672
4111416705 WASHER SPR 5 8 SW5 221H0287
673
4111413001 WASHER SPR 6 8 SW6 221H0289
676
4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
677
4111414107 WASHER V 5X10X1 20 FW5 221H0318
678
4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
G-7
