MODEL GXH-1JS 1012-004 13 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE B-2 107 6301062846 V ACUUM P ARTS 1 829B--010-007 225D0089 109 6301244709 AIR LINE EQPT 1 829B--010-009 225B0500 1 10 6300037364 PIPE FI…
MODEL GXH-1JS
0804-002
12
本体部
MAIN BODY SECTION

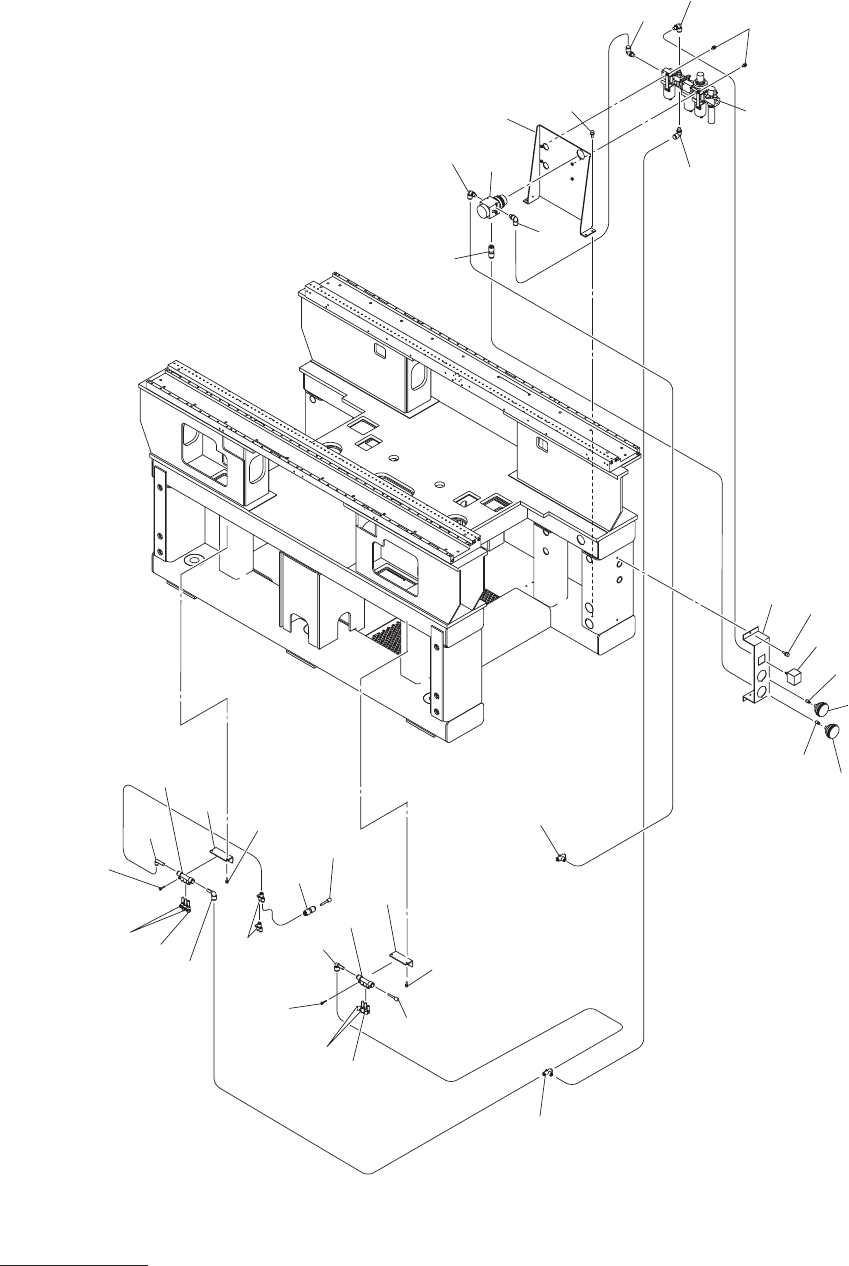

Fig. B-2
エアポート配管
Air Port Piping
137
168
163
.
155
.
110
147
131
136
135
134
135
133
1
12
133
146
145
148
144
131
132
167
162
.
154
.
151
161
.
166
.
167
162
.
154
.
134
151
161
.
166
.
132
109
167
162
.
153
.
142
140
110
167
162
.
152
.
143
141
138
107
138
126
137
110
139
MODEL GXH-1JS
1012-004
13
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
B-2
107 6301062846 VACUUM PARTS 1 829B--010-007 225D0089
109 6301244709 AIR LINE EQPT 1 829B--010-009 225B0500
1
10 6300037364 PIPE FITTINGS 3 225F0030
1
12 6300037708 PIPE FITTINGS 2 829B--010-012 225F0059
126
6301244716 AIR LINE EQPT 1 829B--010-026 225B0501
131
6301268866 BRACKET 2 829B--010-031 211F8359
132 6301268897 PIPE FITTINGS 2 829B--010-032 225F0578
133
6301268903 PIPE FITTINGS 2 829B--010-033 225F0579
134
6300135497 PIPE FITTINGS 4 829B--010-034 225F0204
135
6301268910 PIPE FITTINGS 2 829B--010-035 225F0580
136
6301268927 PIPE FITTINGS 1 829B--010-036 225F0581
137
6300037340 PIPE FITTINGS 2 225F0028
138
6300036923 PIPE FITTINGS 2 225F0002
139
6300036985 PIPE FITTINGS 1 225F0004
140
6301339375 AIR LINE EQPT 1 829B--010-300 225B0528
141
6301339405 AIR LINE EQPT 1 829B--010-301 225B0529
142
6301382487 BRACKET 1 829B--010-302 211F9846
143 6301338613 BRACKET 1 829B--010-303 211F9363
144 6300037791 PIPE FITTINGS 2 225F0064
145
6300037661 PIPE FITTINGS 1 225F0055
146
6300037685 PIPE FITTINGS 1 225F0057
147
6300037814 PIPE FITTINGS 1 225F0066
148
6300037180 PIPE FITTINGS 1 225F0019
151
6300007671 BOLT,HEX-SCT 4 M4X25 221A0022
152
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
153
6300007756 BOLT,HEX-SCT 4 M5X12 221A0030
154
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
155
6300007879 BOLT,HEX-SCT 4 M6X12 221A0042
161
4111412905 WASHER SPR 4 4 SW4 221H0284
162
4111416705 WASHER SPR 5 10 SW5 221H0287
163
4111413001 WASHER SPR 6 4 SW6 221H0289
166
4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
167
4111414107 WASHER V 5X10X1 10 FW5 221H0318
168
4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
MODEL GXH-1JS
0909-003
14
本体部
MAIN BODY SECTION

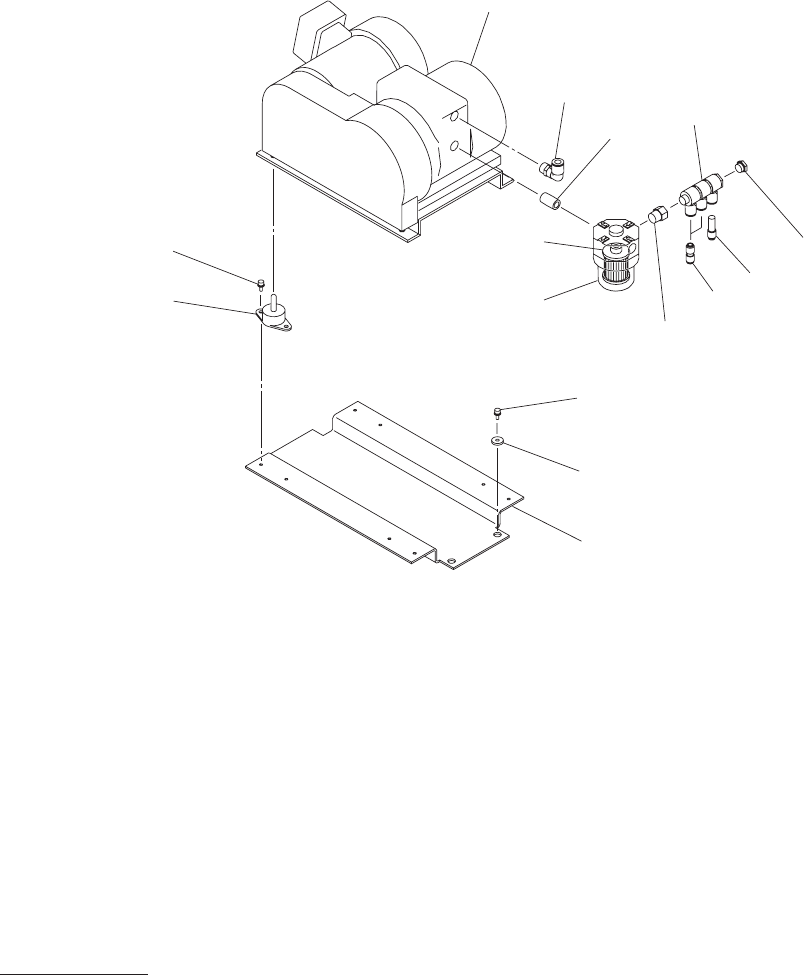

Fig. B-3
真空ポンプ
Vacuum Pump
202
214
213
202-10
202-11
205
2 1 1
204
206
254
217
203
253
252
.
251
.
252
251
.
210
