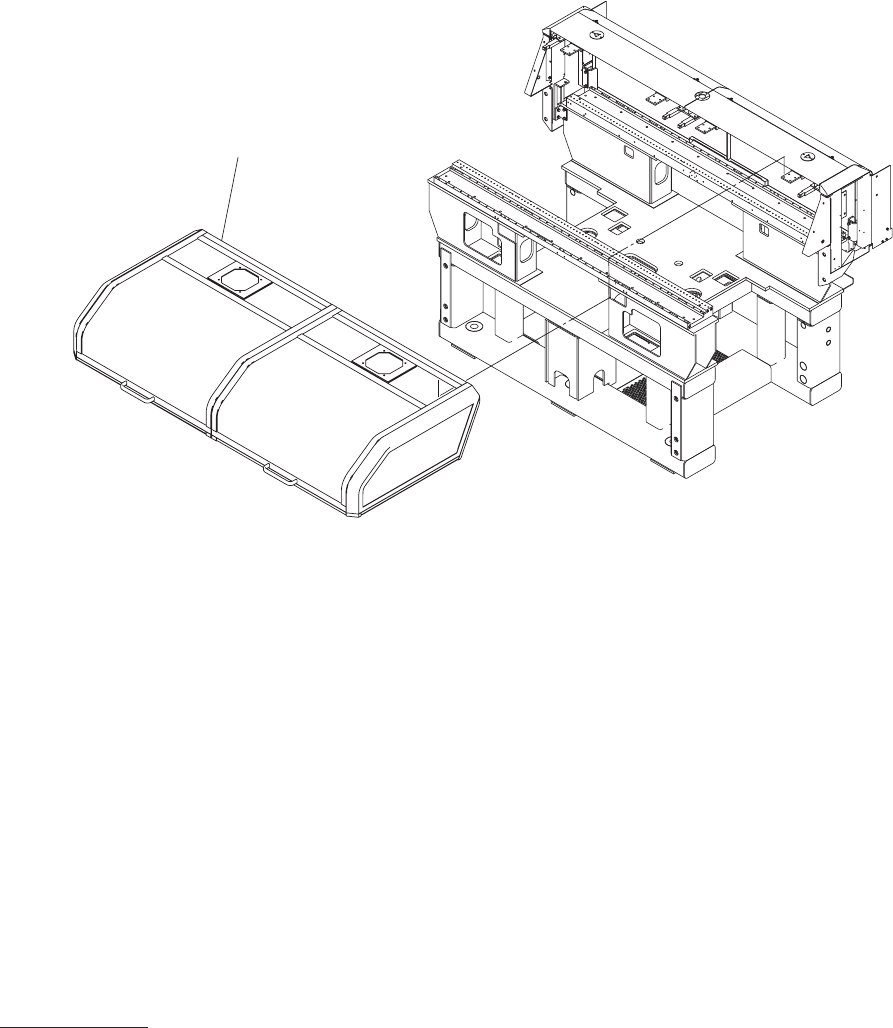

MODEL GXH-1JS 0602-001 148 カバー部 COVER SECTION Fig. G-8 開閉扉 Door(located over the beam) 701
MODEL GXH-1JS
1012-005
147
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
605 6300885361 ACCESSORY,SW (KEY) 1 829G--010-405 23H20053
616 6301491226 BRACKET 2 829G--010-016 211FB239
617 6301491240 PIN,HINGE 2 829G--010-017 216D0546
619
6301491233 BRACKET 2 829G--010-019 211DB240
620 6301265346 BLOCK 2 829G--010-020 211G3493
621 6301508740 PIN,HINGE 4 829G--010-021 216D0550
622
4110010409 RING E 6 4 829G--010-062 221K0099
627
6301273129 PLATE 1 829G--010-027 211D9629
651 6300764932 ACCESSORY,MOT-M 1 829G--010-161 23M00038
657
6300684278 MOTOR,INDUCTION 1 M101 829G--010-157 4M100029
658 6300684292 ACCESSORY,MOT-M 1 829G--010-158 23M00033
659
6300746853 ACCESSORY,MOT-M (FILTER) 1 829G--010-159 23M00037
661
6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
662
6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
663
6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
664
6300007862 BOLT,HEX-SCT 8 M6X10 221A0041
665
6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
666
4110436803 SCR PAN 5X12 4 M5X12 PAN 221E051
1
667 4111406409 SCR PAN 5X16 4 M5X16 PAN 221E0512
668 4111410505 NUT HEX 5 8 M5 221F0085
669
6300008883 SET SCREW 4 M3X4 SET 221C0001
670 6300082296 SET SCREW 4 M4X4 SET 221C0027
671 4111412905 WASHER SPR 4 4 SW4 221H0284
672
4111416705 WASHER SPR 5 8 SW5 221H0287
673
4111413001 WASHER SPR 6 8 SW6 221H0289
676
4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
677
4111414107 WASHER V 5X10X1 20 FW5 221H0318
678
4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
G-7
MODEL GXH-1JS
0602-001
148
カバー部
COVER SECTION
Fig. G-8
開閉扉
Door(located over the beam)
701
MODEL GXH-1JS
1012-004
149
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
701 6301547534 MECH PARTS(COVER) 1 829G--010-616 226J2351
