MODEL GXH-1JS 1012-004 155 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 1 6301301518 MECH P ARTS 1 226J1984 2 6301301525 MECH P ARTS 1 226J1985 3 6301301556 MECH P ARTS 1 226J1988 4 6301301563 MECH P ARTS 1 …
MODEL GXH-1JS
0602-001
154
開閉扉
Door(located over the beam)

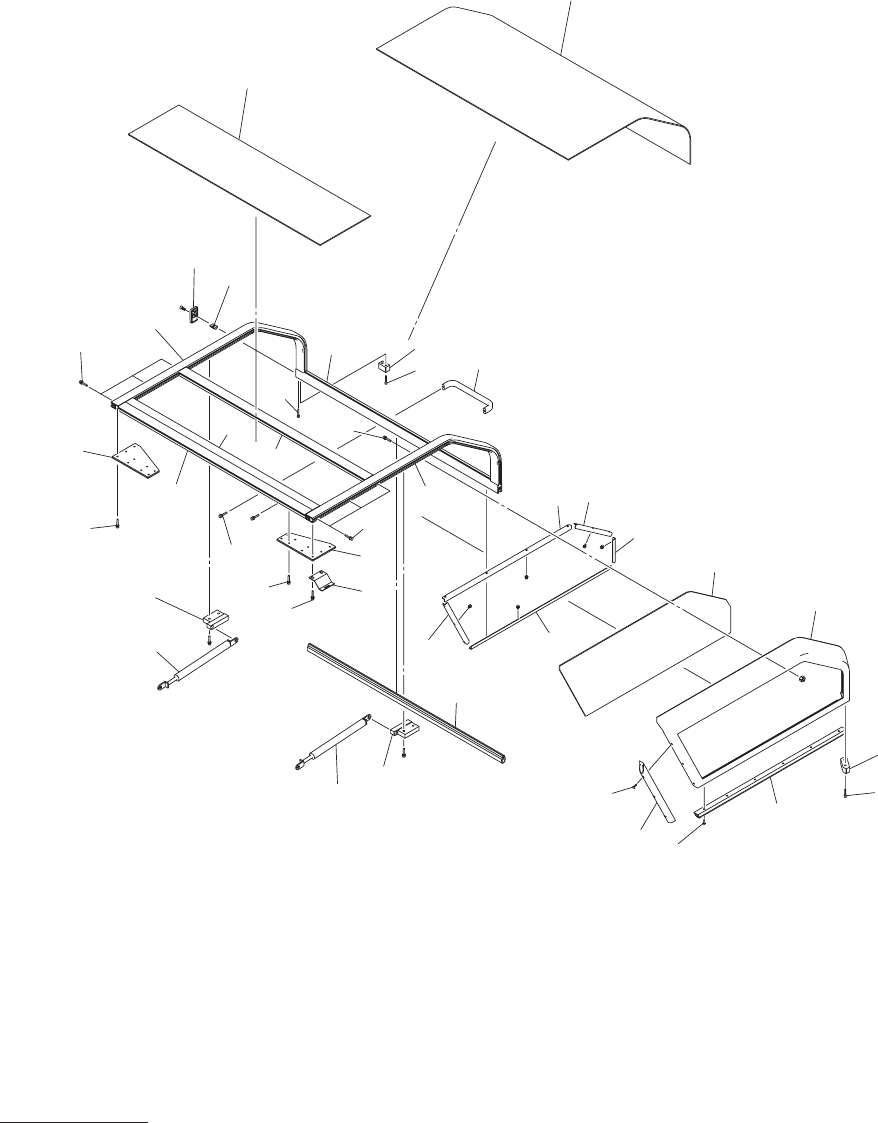

Fig. GB-1
カバー（奥）
Cover-Rear
19
51
4
1
16
52
1
5
6
3
2
52
16
17
15
14
1
1
13
12
24
10
20
66
26
27
28
18
63
.
64
63
.
64
7
58
22
8
21
25
23
59
58
29
29
53
53
53
MODEL GXH-1JS
1012-004
155
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301301518 MECH PARTS 1 226J1984
2 6301301525 MECH PARTS 1 226J1985
3
6301301556 MECH PARTS 1 226J1988
4
6301301563 MECH PARTS 1 226J1989
5
6301301570 MECH PARTS 1 226J1990
6
6301301587 MECH PARTS 1 226J1991
7
6301034195 GRIP 1 226D0082
8
6301034256 NUT 1 221G0131
10
6301301594 COVER 1 211A9008
11 6301301617 SUPPORT 1 211K2974
12 6301301624 SUPPORT 1 211K2975
13 6301301631 SUPPORT 1 211K2976
14 6301301648 SUPPORT 1 211K2977
15 6301301655 SUPPORT 1 211K2978
16 6301351278 BRACKET 2 211F9520
17 6301301679 BRACKET 1 211F881
1
18 6301301686 BLOCK 1 211G3699
19 6301301693 BLOCK 1 211G3700
20 6301301709 BLOCK 1 211G3701
21 6300981926 MECH PARTS(CAP) 1 226J1205
22
6301238104 MECH PARTS(STOPPER) 1 226J1848
23
6301301723 COVER 1 211A9010
24 6301301730 COVER 1 211A901
1
25 6301301747 PLATE 1 211DB834
26 6301623245 MECH PARTS 1 226J2452
27
6301623252 MECH PARTS 1 226J2453
28
6301623269 MECH PARTS 1 226J2454
29
6301256177 SHOCK ABSORBER 2 222S0057
51
6300007817 BOLT,HEX-SCT 2 221A0036
52
6300007794 BOLT,HEX-SCT 6 221A0034
53
6301034324 BOLT,HEX-SCT(BUTTON HEAD) 8 221A0285
58
6301034690 MACHINE SCREW 3 221D0148
59
6301034553 MACHINE SCREW 7 221D0147
63
6300007633 BOLT,HEX-SCT 9 221A0018
64
4111414008 WASHER V 4X9X0.8 9 221H0315
66
6300007664 BOLT,HEX-SCT 2 221A0021
GB-1
MODEL GXH-1JS
0602-001
156
開閉扉
Door(located over the beam)
Fig. GB-2
カバー（手前）
Cover-Front
119
118
158
122
128
116
103
107
158
108
121
102
159
112
113
1
14
115
111
124
110
117
120
166
126
127
152
151
104
152
101
123
125
153
153
116
163
.
164
163
.
164
129
129
105
106
