MODEL GXH-1JS 1012-004 171 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 353 6301480923 BRACKET 1 829BL-010-053 21 1FB107 354 6301326313 BRACKET 1 829BL-010-054 21 1F9151 362 6301242293 UNIT ,POWER 1 -G02 829…
MODEL GXH-1JS
0701-002
170
電装ボックス
L ELECTRICAL BOX L
Fig. BL-4 DC
電源２
DC Power Supply 2
354
363
362
See Fig.BL-1
Key No.55
367
.
373
.
378
368
353
368
MODEL GXH-1JS
1012-004
171
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
353 6301480923 BRACKET 1 829BL-010-053 211FB107
354 6301326313 BRACKET 1 829BL-010-054 211F9151
362 6301242293 UNIT,POWER 1 -G02 829BL-010-162 4U200255
363 6301335889 UNIT,POWER 1 -G04 829BL-010-163 4U200267
367 6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
368
4110435004 SCR PAN 4X8 8 M4X8 PAN 221E0510
373 4111416705 WASHER SPR 5 2 SW5 221H0287
378
4111414107 WASHER V 5X10X1 2 FW5 221H0318
BL-4
MODEL GXH-1JS
1012-004
172
電装ボックス
L ELECTRICAL BOX L

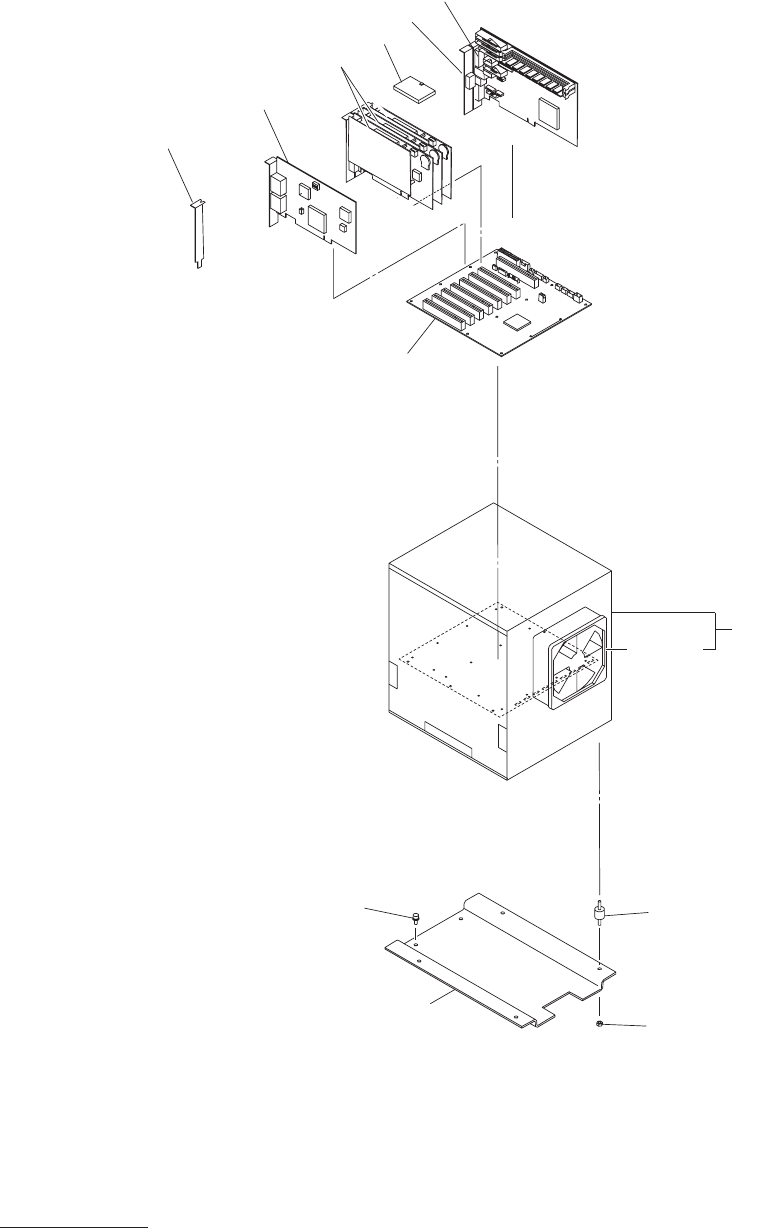

Fig. BL-5 CPU
２
CPU 2
462
466
464
465
463
451
473
457
469
472
471
.
470
.
456
461
461-01
