MODEL GXH-1JS 0701-002 186 162 171 181 . 180 181 . 180 181 . 180 182 182 185 184 183 153 152 168 165 173 170 172 161 160 170 159 158 167 166 157 170 170 170 151 167 163 164 182 185 184 183 185 184 183 架台下 XY サーボ電源部 B UND…
MODEL GXH-1JS
1012-003
185
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
52 6301337180 BRACKET 1 829BN-010-052 211F9346
53 6301268453 BRACKET 1 829BN-020-053 211F8353
55 6300863857 BREAKER 1 Q200 829BN-010-175 4S230067
56 6300835441 HANDLE 1 829BN-010-176 226C0141
57
6301187839 FILTER,NOISE 1 Z01 829BN-010-177 4F300073
58 6301168821 FILTER,NOISE 1 Z02 829BN-010-178 4F300071
61 4080310004 VARISTOR R.A.V-781BXZ-4 1 F200 829BN-010-251 4V360007
62 6301231303 FUSE,SPECIAL 3 F201,F202,F203
829BN-010-252 4S300006
63
6301231310 FUSE HOLDER 3 829BN-010-253 4J200032
70
6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
71
4111416705 WASHER SPR 5 2 SW5 221H0287
72
4111414107 WASHER V 5X10X1 2 FW5 221H0318
73
4111131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
74 4110423001 SCR PAN 4X10 1 M4X10 PAN 221E0500
75 4111132407 SCR PAN 4X30 2 M4X30 PAN 221E0506
76 4110081706 WASHER SPR 4 13 SW4 F 221H0283
77
4111192104 WASHER V 4X9X0.8 13 FW4 F 221H0314
BN-1
MODEL GXH-1JS
0701-002
186
162
171
181
.
180
181
.
180
181
.
180
182
182
185
184
183
153
152
168
165
173
170
172
161
160
170
159
158
167
166
157
170
170
170
151
167
163
164
182
185
184
183
185
184
183

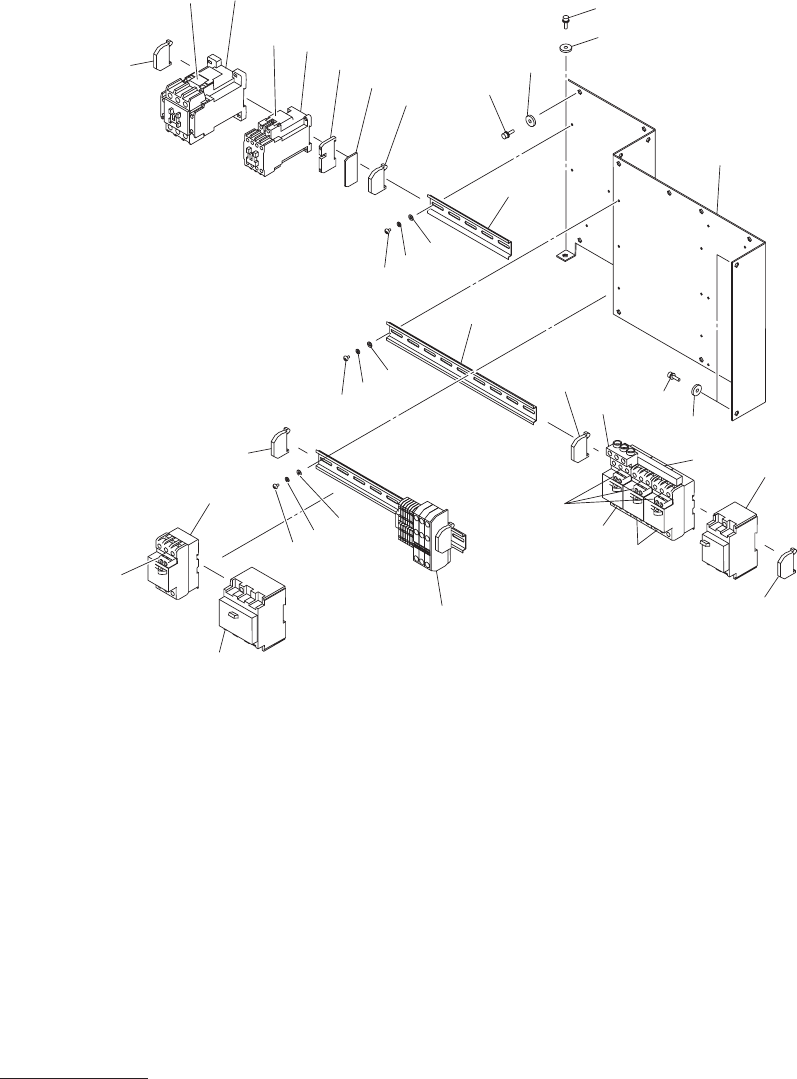

架台下
XY
サーボ電源部
B UNDERFRAME XY SERVO
POWER SUPPLY SECTION B
Fig. BN-2
200V
電源２
200V Power Supply 2
MODEL GXH-1JS
1012-003
187
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301340012 BREAKER 1 -Q201 829BN-010-151 4S230093
152 6301340029 EM-CONTACTOR 1 -K33 829BN-010-152 4S2101
17
153 6301241586 COMP,CR 1 829BN-010-153 4F400025
157
6301705309 CIRCUIT PROTECTOR 1 -Q221 829BN-010-157 4S250388
158 6301340074 ACCESSORY,WIRING 1 829BN-010-158 23N30652
159
6301340081 ACCESSORY,WIRING 1 829BN-010-159 23N30653
160
6301340005 RAIL,WIRING 1 829BN-010-160 23N00101
161
6300911725 ACCESSORY,WIRING 1 829BN-010-161 23N30499
162
6301354026 TERMINAL 1 829BN-010-162 4J320229
163
6301340036 CIRCUIT PROTECTOR 1 -Q205 829BN-010-163 4S250321
164 6301340159 BREAKER 1 -Q206 829BN-010-164 4S230094
165 6301340166 EM-CONTACTOR 1 -K29 829BN-010-165 4S2101
18
166 6301705316 CIRCUIT PROTECTOR 2 -Q222,-Q223
829BN-010-166 4S250389
167
6301340067 ACCESSORY,WIRING 4 829BN-010-167 23N30651
168
6300769166 COMP,CR 1 829BN-010-168 4F400008
170
6300911749 BRACKET,WIRING 6 829BN-010-170 23N10027
171
6301337159 BRACKET 1 829BN-010-051 211F9343
172 6301268712 TERMINAL 1 829BN-010-172 4J320186
173
6301339993 ACCESSORY,WIRING 1 829BN-010-173 23N30650
180
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
181
4111416705 WASHER SPR 5 4 SW5 221H0287
182
6300010220 WASHER 4 BW5 221H0005
183
4111131400 SCR PAN 4X6 8 M4X6 PAN 221E0509
184 4110081706 WASHER SPR 4 8 SW4 F 221H0283
185
4111192104 WASHER V 4X9X0.8 8 FW4 F 221H0314
BN-2
