MODEL GXH-1JS 1012-003 191 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 151 6301337425 BRACKET 1 829BP-010-051 21 1F9355 156 6300857498 RELA Y 2 -K36,-K38 829BP-010-156 4S2001 14 157 6300492422 BRACKET ,WIRI…
MODEL GXH-1JS
0602-001
190
151
170
182
183
184
184
183
181
184
183
181
184
183
181
178
157
156
166
.
171
176
.
177
176
.
177
178
架台下
XY
サーボ電源部

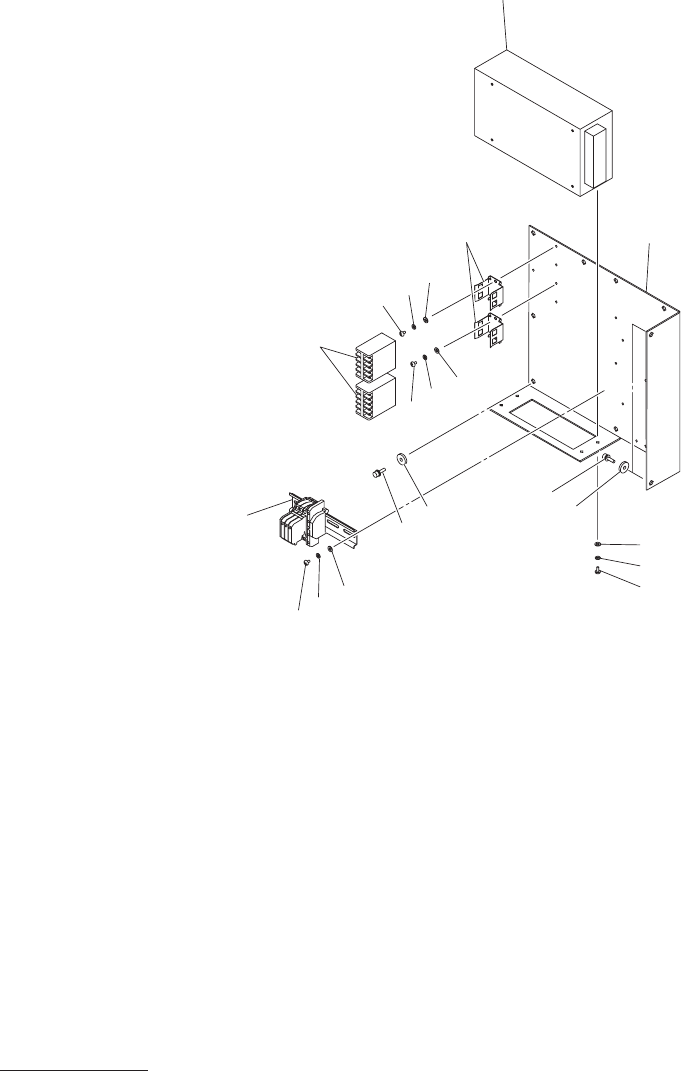

C UNDERFRAME XY SERVO
POWER SUPPLY SECTION C
Fig. BP-2
DC48V
電源
DC48V Power Supply
MODEL GXH-1JS
1012-003
191
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301337425 BRACKET 1 829BP-010-051 211F9355
156 6300857498 RELAY 2 -K36,-K38 829BP-010-156 4S2001
14
157 6300492422 BRACKET,WIRING 2 829BP-010-157 23N10019
166
6301354040 TERMINAL 1 829BP-010-166 4J320231
170
6301242293 UNIT,POWER 1 G03 829BP-010-170 4U200255
171 4230228302 FUSE 250V 5A 3 F033,F034,F037
829BP-010-171 4S300024
176
6300007763 BOLT,HEX-SCT 3 M5X16 221A0031
177
4111416705 WASHER SPR 5 3 SW5 221H0287
178
6300010220 WASHER 3 BW5 221H0005
181
4111131400 SCR PAN 4X6 6 M4X6 PAN 221E0509
182 4110435004 SCR PAN 4X8 4 M4X8 PAN 221E0510
183 4110081706 WASHER SPR 4 10 SW4 F 221H0283
184
4111192104 WASHER V 4X9X0.8 10 FW4 F 221H0314
BP-2
