P-255-006e - 第196页
MODEL GXH-1JS 0804-002 194 電装ボックス R ELECTRICAL BOX R Fig. BS-1 電装ボックス Electrical Box 84 88 80 56 80 88 83 89 86 . 81 . 79 84 88 80 79 89 86 . 81 . 56 80 88 83 89 86 . 81 . 83 88 71 57 70 71 88 84 89 86 . 81 . 58 90 87 82…
MODEL GXH-1JS
0602-001
193
Fig. BS
電装ボックス
R ELECTRICAL BOX R
MODEL GXH-1JS
0804-002
194
電装ボックス
R ELECTRICAL BOX R

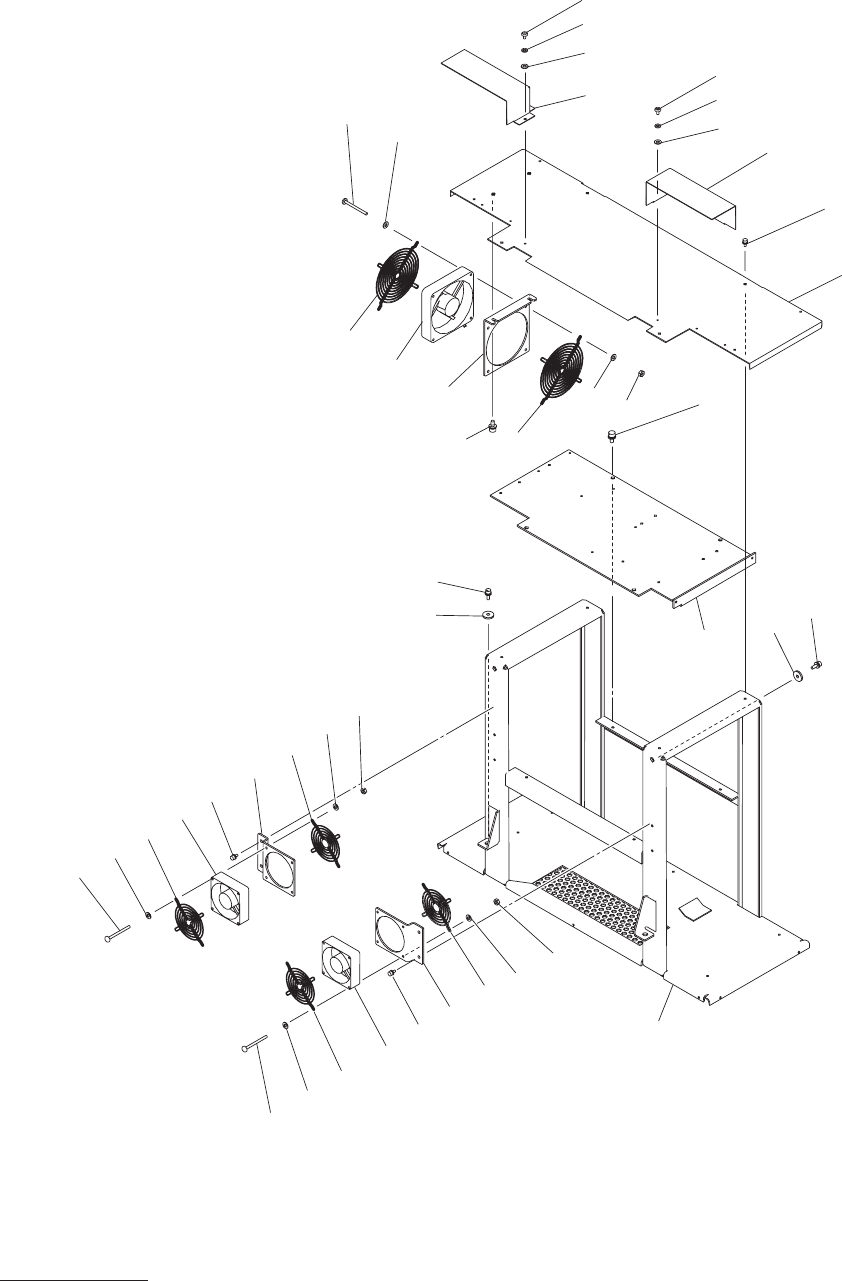

Fig. BS-1
電装ボックス
Electrical Box
84
88
80
56
80
88
83
89
86
.
81
.
79
84
88
80
79
89
86
.
81
.
56
80
88
83
89
86
.
81
.
83
88
71
57
70
71
88
84
89
86
.
81
.
58
90
87
82
.
55
90
87
82
.
91
92
93
76
91
92
93
75
89
86
.
81
.
74
MODEL GXH-1JS
1012-004
195
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
55 6301360201 BRACKET 1 829BS-010-055 211F9595
56 6301295480 BRACKET 2 829BS-010-056 211F8718
57 6301335995 BRACKET 1 829BS-010-057 211F9316
58 6301360218 BRACKET 1 829BS-010-058 211F9596
70 6301405506 MOTOR,DC 1 M118 829BS-010-170
4M130026
71 6301399805 ACCESSORY,MOT-M 2 829BS-010-171 23M00062
74
6301336053 PLATE 1 829BS-010-074 211DA234
75 6301340371 COVER 1 829BS-010-075 211A9480
76 6301340388 COVER 1 829BS-010-076 211A9481
79 6301405490 MOTOR,DC 2 M116,M117
829BS-010-179 23M1U025
80 6301399799 ACCESSORY,MOT-M 4 829BS-010-180 23M00061
81
6300007749 BOLT,HEX-SCT 14 M5X10 221A0029
82
6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
83
4111410307 NUT HEX 4 12 M4 221F0104
84
4111132506 SCR PAN 4X40 12 M4X40 PAN 221E0508
86 4111416705 WASHER SPR 5 14 SW5 221H0287
87
4111413001 WASHER SPR 6 4 SW6 221H0289
88
4111414008 WASHER V 4X9X0.8 24 FW4 221H0318
89
4111414107 WASHER V 5X10X1 14 FW5 221H0320
90
6300010237 WASHER 4 BW6 221H0006
91
4111131400 SCR PAN 4X6 6 M4X6 PAN 221E0509
92 4110081706 WASHER SPR 4 6 SW4 F 221H0283
93
4111192104 WASHER V 4X9X0.8 6 FW4 F 221H0314
BS-1
