MODEL GXH-1JS 0602-001 196 電装ボックス R ELECTRICAL BOX R Fig. BS-2 DC 電源、リレー１ DC Power Supply ,Relay 1 151 157 156 181 180 . 171 . 167 157 181 180 . 172 . 170 162 163 155 152 164 174 177 176 173 176 175 177
MODEL GXH-1JS
1012-004
195
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
55 6301360201 BRACKET 1 829BS-010-055 211F9595
56 6301295480 BRACKET 2 829BS-010-056 211F8718
57 6301335995 BRACKET 1 829BS-010-057 211F9316
58 6301360218 BRACKET 1 829BS-010-058 211F9596
70 6301405506 MOTOR,DC 1 M118 829BS-010-170
4M130026
71 6301399805 ACCESSORY,MOT-M 2 829BS-010-171 23M00062
74
6301336053 PLATE 1 829BS-010-074 211DA234
75 6301340371 COVER 1 829BS-010-075 211A9480
76 6301340388 COVER 1 829BS-010-076 211A9481
79 6301405490 MOTOR,DC 2 M116,M117
829BS-010-179 23M1U025
80 6301399799 ACCESSORY,MOT-M 4 829BS-010-180 23M00061
81
6300007749 BOLT,HEX-SCT 14 M5X10 221A0029
82
6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
83
4111410307 NUT HEX 4 12 M4 221F0104
84
4111132506 SCR PAN 4X40 12 M4X40 PAN 221E0508
86 4111416705 WASHER SPR 5 14 SW5 221H0287
87
4111413001 WASHER SPR 6 4 SW6 221H0289
88
4111414008 WASHER V 4X9X0.8 24 FW4 221H0318
89
4111414107 WASHER V 5X10X1 14 FW5 221H0320
90
6300010237 WASHER 4 BW6 221H0006
91
4111131400 SCR PAN 4X6 6 M4X6 PAN 221E0509
92 4110081706 WASHER SPR 4 6 SW4 F 221H0283
93
4111192104 WASHER V 4X9X0.8 6 FW4 F 221H0314
BS-1
MODEL GXH-1JS
0602-001
196

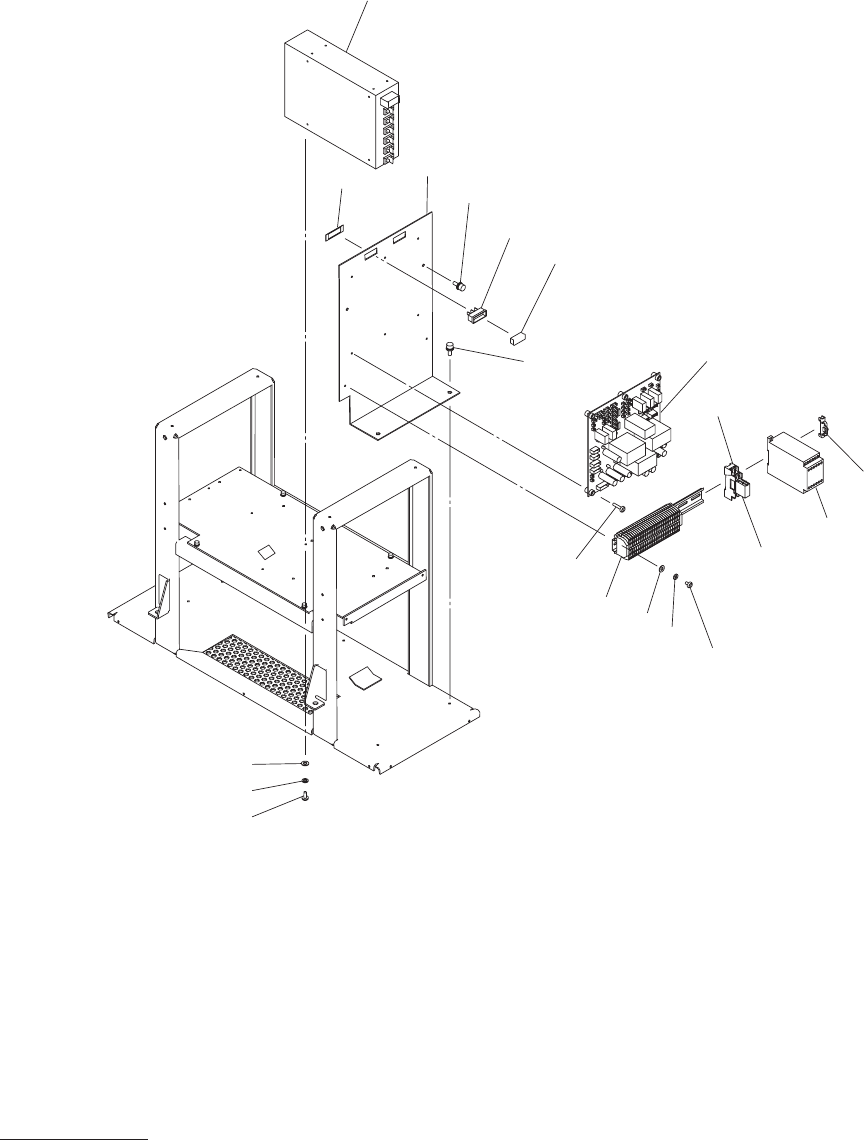

電装ボックス
R ELECTRICAL BOX R
Fig. BS-2 DC
電源、リレー１
DC Power Supply,Relay 1
151
157
156
181
180
.
171
.
167
157
181
180
.
172
.
170
162
163
155
152
164
174
177
176
173
176
175
177
MODEL GXH-1JS
1012-003
197
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301241593 UNIT,POWER 1 G01 829BS-010-151 4U200254
152 6300952704 RELAY 1 K3 829BS-010-152 4S200121
155 6301354057 TERMINAL 1 829BS-010-155 4J320232
156
6301231303 FUSE,SPECIAL 1 F031 829BS-010-156 4S300006
157 6301231310 FUSE HOLDER 1 829BS-010-157 4J200032
162
6300635423 RELAY 1 K51 829BS-010-162 4S200086
163 6300635430 SOCKET 1 829BS-010-163 4J120099
164
6300911749 BRACKET,WIRING 1 829BS-010-164 23N10027
167
6301360195 BRACKET 1 829BS-010-052 211F9594
170 6301242514 P.C.B,MOUNT 1 U26 829BS-010-060 4B1
11465
171 6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
172
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
173
4111131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
174 4111132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
175 4110423001 SCR PAN 4X10 4 M4X10 PAN 221E0500
176 4110081706 WASHER SPR 4 6 SW4 F 221H0283
177
4111192104 WASHER V 4X9X0.8 6 FW4 F 221H0314
180
4111416705 WASHER SPR 5 4 SW5 221H0289
181
4111414107 WASHER V 5X10X1 4 FW5 221H0320
BS-2
