P-255-006e - 第200页
MODEL GXH-1JS 1012-003 198 電装ボックス R ELECTRICAL BOX R Fig. BS-3 CPU 1 CPU 1 251 255 273 274 275 273 274 275 261 262 271 . 276 . 277 271 . 276 . 277 271 . 276 . 277 253 292-01 292 292-02 291
MODEL GXH-1JS
1012-003
197
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301241593 UNIT,POWER 1 G01 829BS-010-151 4U200254
152 6300952704 RELAY 1 K3 829BS-010-152 4S200121
155 6301354057 TERMINAL 1 829BS-010-155 4J320232
156
6301231303 FUSE,SPECIAL 1 F031 829BS-010-156 4S300006
157 6301231310 FUSE HOLDER 1 829BS-010-157 4J200032
162
6300635423 RELAY 1 K51 829BS-010-162 4S200086
163 6300635430 SOCKET 1 829BS-010-163 4J120099
164
6300911749 BRACKET,WIRING 1 829BS-010-164 23N10027
167
6301360195 BRACKET 1 829BS-010-052 211F9594
170 6301242514 P.C.B,MOUNT 1 U26 829BS-010-060 4B1
11465
171 6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
172
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
173
4111131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
174 4111132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
175 4110423001 SCR PAN 4X10 4 M4X10 PAN 221E0500
176 4110081706 WASHER SPR 4 6 SW4 F 221H0283
177
4111192104 WASHER V 4X9X0.8 6 FW4 F 221H0314
180
4111416705 WASHER SPR 5 4 SW5 221H0289
181
4111414107 WASHER V 5X10X1 4 FW5 221H0320
BS-2
MODEL GXH-1JS
1012-003
198

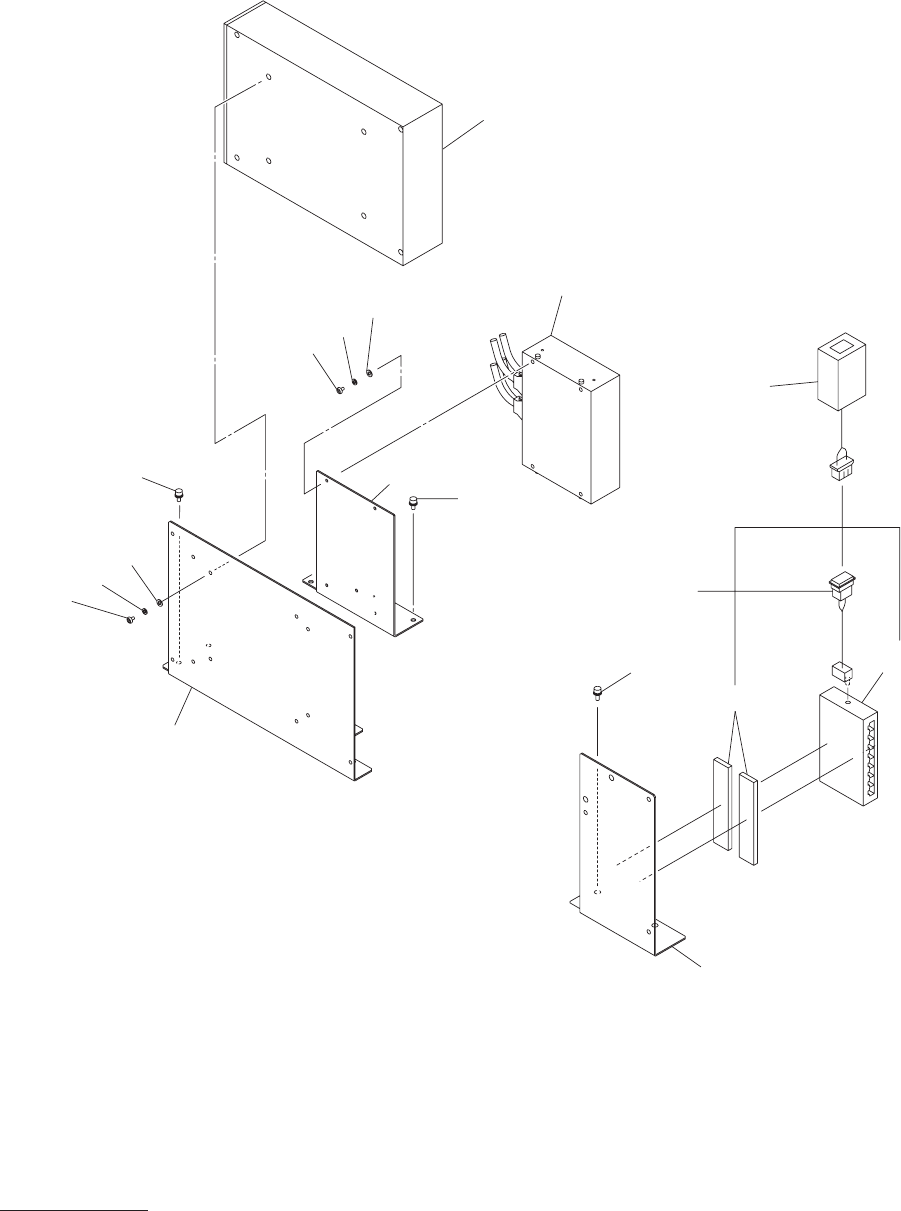

電装ボックス
R ELECTRICAL BOX R
Fig. BS-3 CPU 1 CPU 1
251
255
273
274
275
273
274
275
261
262
271
.
276
.
277
271
.
276
.
277
271
.
276
.
277
253
292-01
292
292-02
291
MODEL GXH-1JS
1012-005
199
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
251 6301461472 BRACKET 1 829BS-010-079 211FA897
253 6301461687 BRACKET 1 829BS-010-081 211F
A898
255 6301336039 BRACKET 1 829BS-010-082 211F9320
261 6301678870 EQUIPMENT(ASSEMBLED PC) 1 U71 829BS-010-165 4U260355
271 6300007749 BOLT,HEX-SCT 6 M5X10 221A0029
273
4111131400 SCR PAN 4X6 8 M4X6 PAN 221E0509
274 4110081706 WASHER SPR 4 8 SW4 F 221H0283
275
4111192104 WASHER V 4X9X0.8 8 FW4 F 221H0314
276
4111416705 WASHER SPR 5 6 SW5 221H0289
277
4111414107 WASHER V 5X10X1 6 FW5 221H0320
281
6301469126 UNIT,I/O 1 U72 829BS-010-174 4U250209
291 080300AF ASSY_ADAPTOR 1 080300AF
292
080300AG ASSY_HUB 1 080300AG
292
-01 6301237152 UNIT,I/O 1 U73 829BS-010-166 4U250154
292 -02 6301300078 MECH PARTS(RUBBER MAGNET) 1 829BS-010-190 226J1971
BS-3
