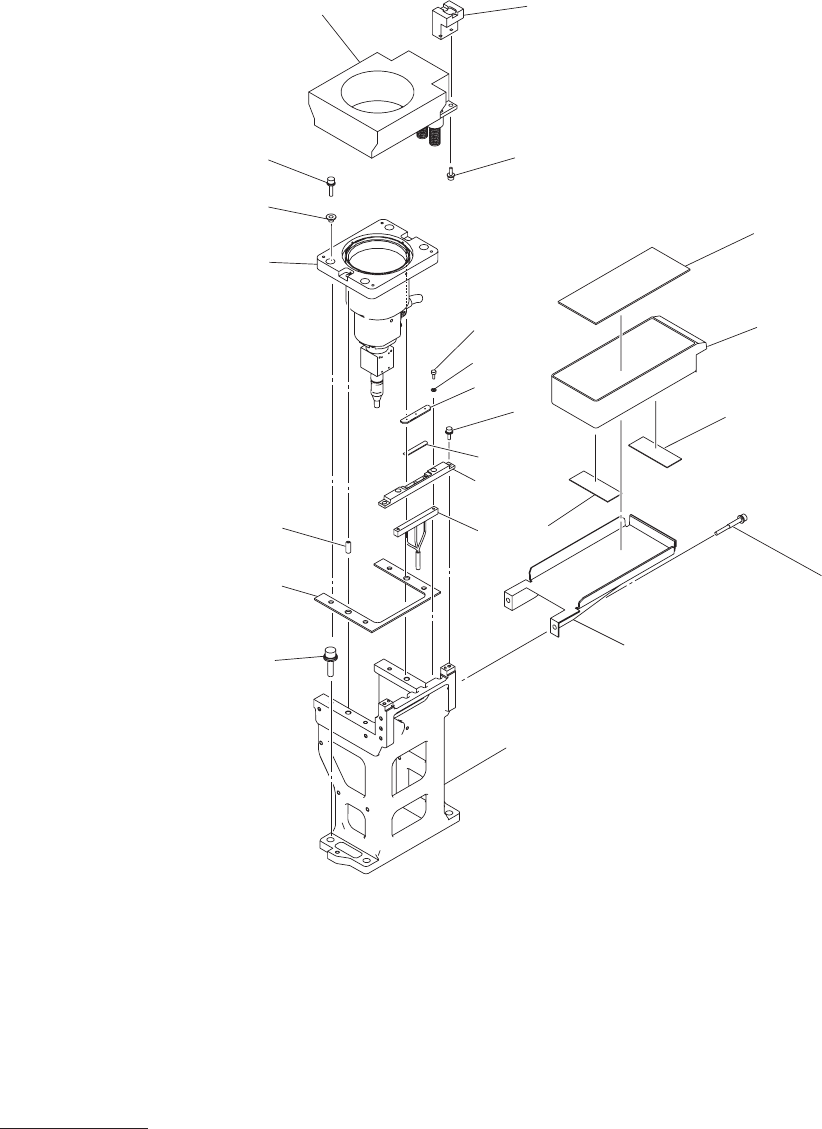

MODEL GXH-1JS 0710-002 218 部品認識部 RECOGNITION SECTION Fig. D-1 部品認識カメラ Recognition Camera 1 2 3 8 7 13 6 10 55 59 . 63 . 53 58 . 62 . 54 58 . 62 . 51 56 5 4 21 23 14 22 9 52 57 . 61 . 52 57 . 61 . 7
MODEL GXH-1JS
0602-001
217
Fig. D
部品認識部
RECOGNITION SECTION
MODEL GXH-1JS
0710-002
218
部品認識部
RECOGNITION SECTION
Fig. D-1
部品認識カメラ
Recognition Camera
1
2
3
8
7
13
6
10
55
59
.
63
.
53
58
.
62
.
54
58
.
62
.
51
56
5
4
21
23
14
22
9
52
57
.
61
.
52
57
.
61
.
7
MODEL GXH-1JS
1012-004
219
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-1
1 6301487199 BASE 2 829D--010-101 210A2629
2 6301242378 SPACER 2 829D--010-102 211E0862
3 6300842708 PIN,LOCATE 4 829D--010-103 216E0832
4
6301281650 PLATE 2 829D--010-104 211D9700
5 6301360652 PLATE 2 829D--010-105 211DA514
6 6301382753 BRACKET 2 829D--010-106 211F9858
7 6301242484 MECH PARTS(MAGNETIC TAPE) 4 829D--010-107 226J1873
8
6301242538 BOX 2 829D--010-108 211B0951
9 6300703665 ACCESSORY,P.C.B 8 829D--010-109 23L10051
10
6301354217 BLOCK 2 829D--010-110 21
1G3979
13 6301271989 SHEET 2 829D--010-113 21
1H0308
14 6301272078 BLOCK 2 829D--010-114 21
1G3532
21 6301558127 ASSY,SCOPE UNIT 2 DA-B61,DB-B61
829D--010-201 0Z100028
22
6301246598 LIGHTING UNIT 2 829D--010-202 4Z110137
23 6301427331 LIGHTING UNIT 2 829D--010-203 4Z110184
51 6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
52
6300007633 BOLT,HEX-SCT 8 M4X12 221A0018
53
6300007770 BOLT,HEX-SCT 8 M5X20 221A0032
54
6300007824 BOLT,HEX-SCT 4 M5X45 221A0037
55
6300008036 BOLT,HEX-SCT 8 M8X30 221A0058
56
4111412806 WASHER SPR 3 4 SW3 221H0281
57
4111412905 WASHER SPR 4 8 SW4 221H0284
58
4111416705 WASHER SPR 5 12 SW5 221H0289
59
4111413100 WASHER SPR 8 8 SW8 221H0291
61
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
62
4111414107 WASHER V 5X10X1 12 FW5 221H0320
63
4111414503 WASHER V 8X17X1.6 8 FW8 221H0323
