MODEL GXH-1JS 1012-004 223 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE D-3 201 6301592510 ASSY ,LIGHTING UNIT 2 -A67,-A68 829B--010-201 0Z1 1001 1 202 6301416304 PLA TE(LG2MM) 8 829B--010-202 21 1DB184 251 …
MODEL GXH-1JS
0602-001
222
部品認識部
RECOGNITION SECTION
Fig. D-3
照明ユニット
Lighting Unit
283
282
.
281
.
201
251
276
255
202
MODEL GXH-1JS
1012-004
223
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-3
201 6301592510 ASSY,LIGHTING UNIT 2 -A67,-A68 829B--010-201 0Z110011
202 6301416304 PLATE(LG2MM) 8 829B--010-202 211DB184
251 6301258980 MECH PARTS(RUBBER LEGS) 4 829F--010-251 226J1897
255
6301340258 BRACKET 2 829F--010-055 211F9381
276 4110418908 SCR PAN 3X6 4 M3X6 PAN 221E0497
281 6300007756 BOLT,HEX-SCT 4 M5X12 221A0030
282
4111416705 WASHER SPR 5 4 SW5 221H0289
283
4111414107 WASHER V 5X10X1 4 FW5 221H0320
MODEL GXH-1JS
0804-002
224
部品認識部
RECOGNITION SECTION
Fig. D-4

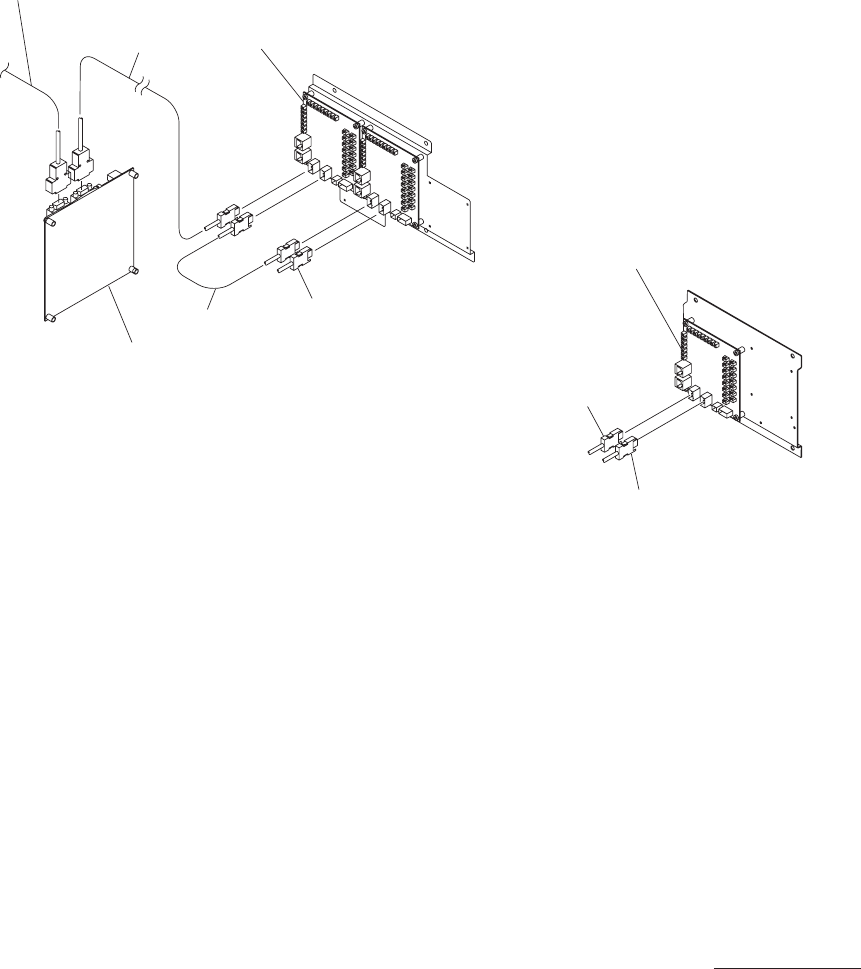

ケーブル
Cable
363
364
See Fig.B-1
Key No.70
See Fig.D-2
Key No.161
See Fig.D-2
Key No.161
371
372
See Fig.BL-6
Key No.589
See Fig.BL-6
Key No.587
X0710
X0711
X0801
X0802
X0901
X0902
X0901
X0902
