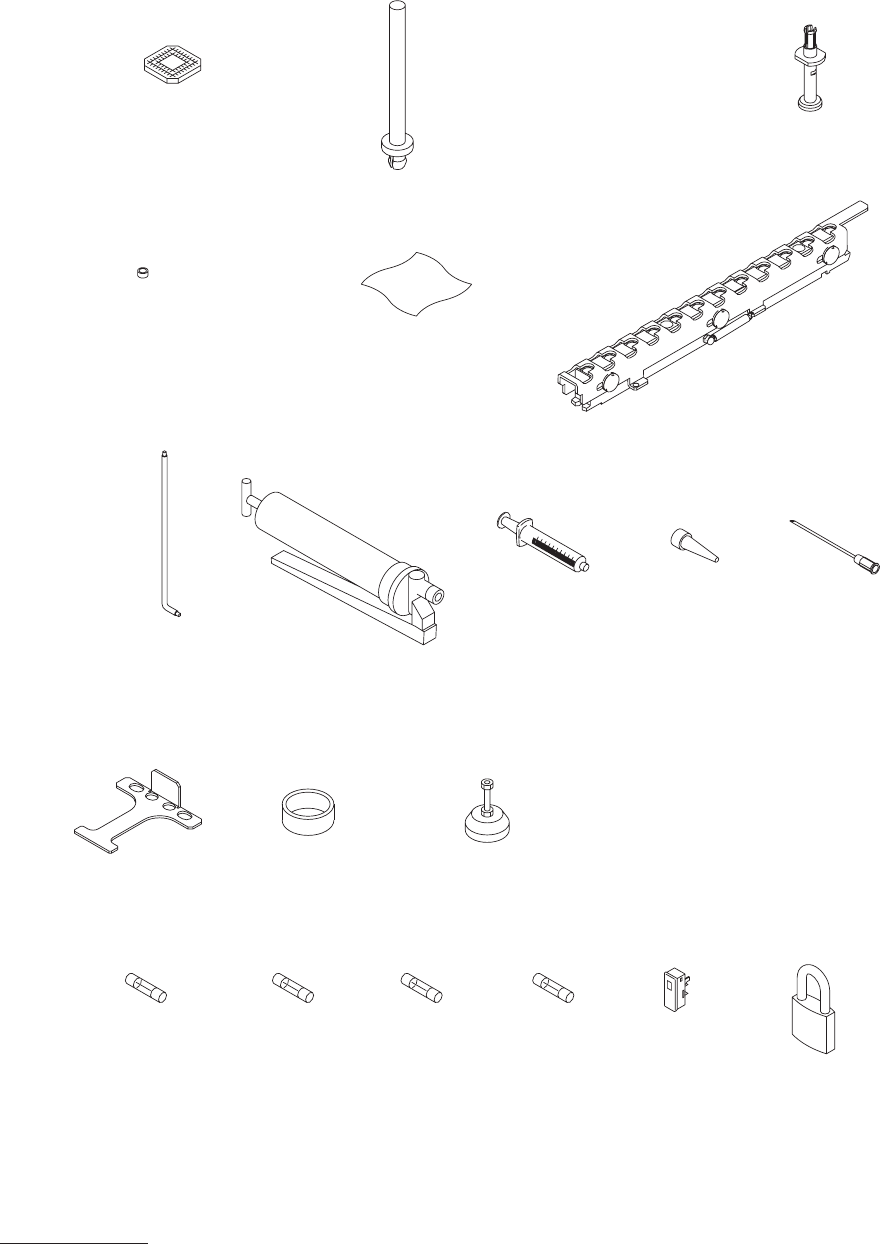

MODEL GXH-1JS 0602-001 238 標準付属品 ST ANDARD ACCESSORIES Fig. SA-1 治具及びスペアパーツ Jig and Spare Parts 6 7 15 52 53 54 51 56 55 5 1 2 4 16 21 22 20 17 18 19
MODEL GXH-1JS
1012-005
237
461 6301464664 CORD 1 829FF-010-361 4W203589
462 6301244242 CORD 1 829FF-010-170 4W202726
470
6301494104 CORD 1 829F--010-170 4W203685
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FF-5
MODEL GXH-1JS
0602-001
238
標準付属品
STANDARD ACCESSORIES
Fig. SA-1
治具及びスペアパーツ
Jig and Spare Parts
6
7
15
52
53 5451 5655
5
1 2 4
16
21 22
20
17 18 19
MODEL GXH-1JS
1012-004
239
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301274454 PLATE 2 829SA-010-001 211D9639
2 6301266015 ROD 10 829SA-010-002 216C0722
4
6301292946 ASSY,NOZZLE(HA09) 2 829SA-010-004 HA09----
5
6301269252 AIR LINE EQPT 144 829SA-010-005 225B0508
6
6301094243 MECH PARTS 5 829SA-010-006 226J1560
7
6301620381 ASSY,BLOCK 2 829SA-010-007 011G0064
15 6301332529 ROD 1 829SA-010-015 216C0787
16
6300622577 TOOL,HAND(HAND GREESEGUN) 1 829SA-010-016 228A0022
17
6301333793 TOOL,HAND(SYRINGE) 4 829SA-010-017 228A0171
18
6300622607 NOZZLE 2 829SA-010-018 216M0451
19
6300622621 NOZZLE 2 829SA-010-019 216M0453
20
6301373669 BRACKET 1 829SA-010-020 211F9768
21 6301376028 SEAL 6 829SA-010-021 226A0256
22
6301381541 ASSY,BLOCK(JIG) 1 829SA-010-022 011G0041
51 4230252109 FUSE 250V 6.3A 1 829SA-010-151 4S300023
52
4230228302 FUSE 250V 5A 1 829SA-010-152 4S300024
53
4230228005 FUSE 250V 1A 1 829SA-010-153 4V320007
54
4230228104 FUSE 250V 2A 1 829SA-010-154 4S300025
55
6301231303 FUSE,SPECIAL 1 829SA-010-155 4S300006
56
6300619737 MECH PARTS (PADLOCK) 2 829SA-010-156 226J0574
SA-1
