MODEL GXH-1JS
0909-004
240
標準付属品
STANDARD ACCESSORIES
Fig. SA-2
選択部品
Optional Parts
Fig.ZS-2
4797L
TCM-X300
TCM-X200
4797A
101
󰨖

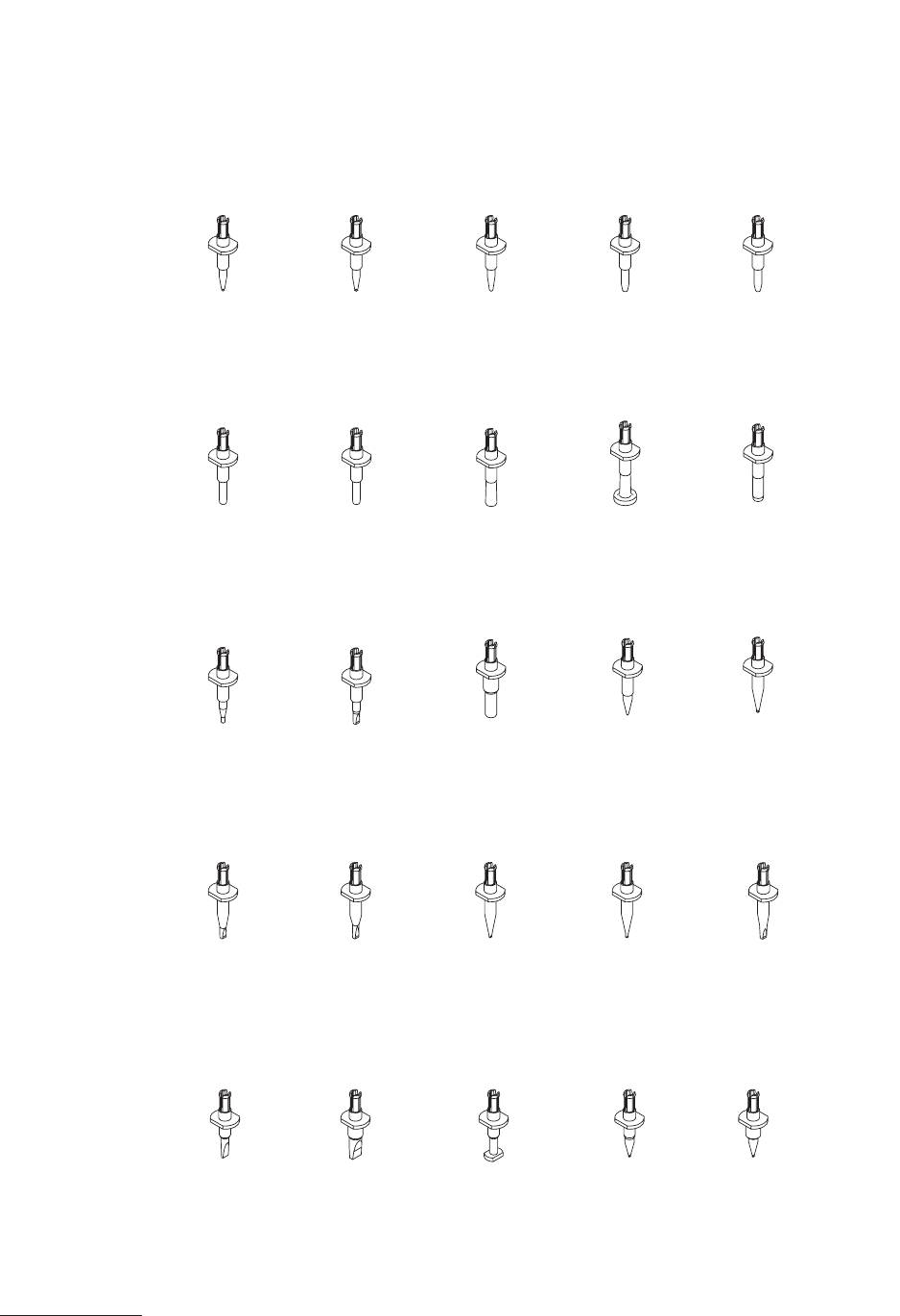

VACUUM NOZZLE (Work Corresponding)
102 103 104 105
109
114 115
1
13
110
111
116
1
12
120 121
1191
17
106 107 108
122 123 125 126124
MODEL GXH-1JS
1012-005
241
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
101 6301284842 ASSY,NOZZLE(HA10) 1 803UN-01R-001 HA10----
102 6301292878 ASSY,NOZZLE(HV01) 1 803UN-02R-001 HV01----
103
6301292885 ASSY,NOZZLE(HV02) 1 803UN-03R-001 HV02----
104
6301292892 ASSY,NOZZLE(HV03) 1 803UN-04R-001 HV03----
105
6301292908 ASSY,NOZZLE(HB03) 1 803UN-05R-001 HB03----
106
6301292915 ASSY,NOZZLE(HB04) 1 803UN-06R-001 HB04----
107
6301292922 ASSY,NOZZLE(HA04) 1 803UN-07R-001 HA04----
108
6301292939 ASSY,NOZZLE(HA05) 1 803UN-08R-001 HA05----
109
6301292946 ASSY,NOZZLE(HA09) 1 803UN-09R-001 HA09----
1
10 6301335407 ASSY,NOZZLE(PA05) 1 803UN-10R-001 PA05----
111 6301322322 ASSY,NOZZLE(PV01) 1 803UN-11R-001 PV01----
112 6301329857 ASSY,NOZZLE(PV02) 1 803UN-12R-001 PV02----
1
13 6301350295 NOZZLE(PA07) 1 803UN-13R-001 PA07----
114 6301375472 ASSY,NOZZLE(HA11) 1 803UN-14R-001 HA11----
115 6301528267 ASSY,NOZZLE(HV31) 1 803UN-15R-001 HV31----
1
16 6301528472 ASSY,NOZZLE(HV51) 1 803UN-16R-001 HV51----
1
17 6301589084 ASSY,NOZZLE(HV81) 1 803UN-17R-001 HV81----
1
19 6301586571 ASSY,NOZZLE(HG31) 1 803UN-19R-001 HG31----
120
6301599632 ASSY,NOZZLE(HG51) 1 803UN-20R-001 HG51----
121
6301613505 ASSY,NOZZLE(HG81) 1 803UN-21R-001 HG81----
122
6301665757 NOZZLE(PA19) 1 803UN-22R-001 PA19----
123 6301665764 NOZZLE(PA20) 1 803UN-23R-001 PA20----
124 6301665771 NOZZLE(PA21) 1 803UN-24R-001 PA21----
125 6301759043 ASSY,NOZZLE(HV32) 1 803UN-25R-001 HV32----
126
6301759050 ASSY,NOZZLE(HG32) 1 803UN-26R-001 HG32----
SA-2
MODEL GXH-1JS
0701-002
242
銘板
NAME PLATE
Fig. SD-1
装置銘板
Name Plate for Machime
53
54
56
57
52
55
58
59
60
51
71
