MODEL GXH-1JS 0710-002 52 カッタ部 B CUTTER SECTION B Fig. DD-1 ベースフレーム Base Frame 59 36 6 42 5 37 15 49 14 53 22 28 21 67 63 . 55 . 58 17 58 66 62 . 54 . 32 66 62 . 54 . 59 1 65 61 . 52 . 2 31 57 25 59 8 32 57 66 62 . 54 . …
MODEL GXH-1JS
0602-001
51

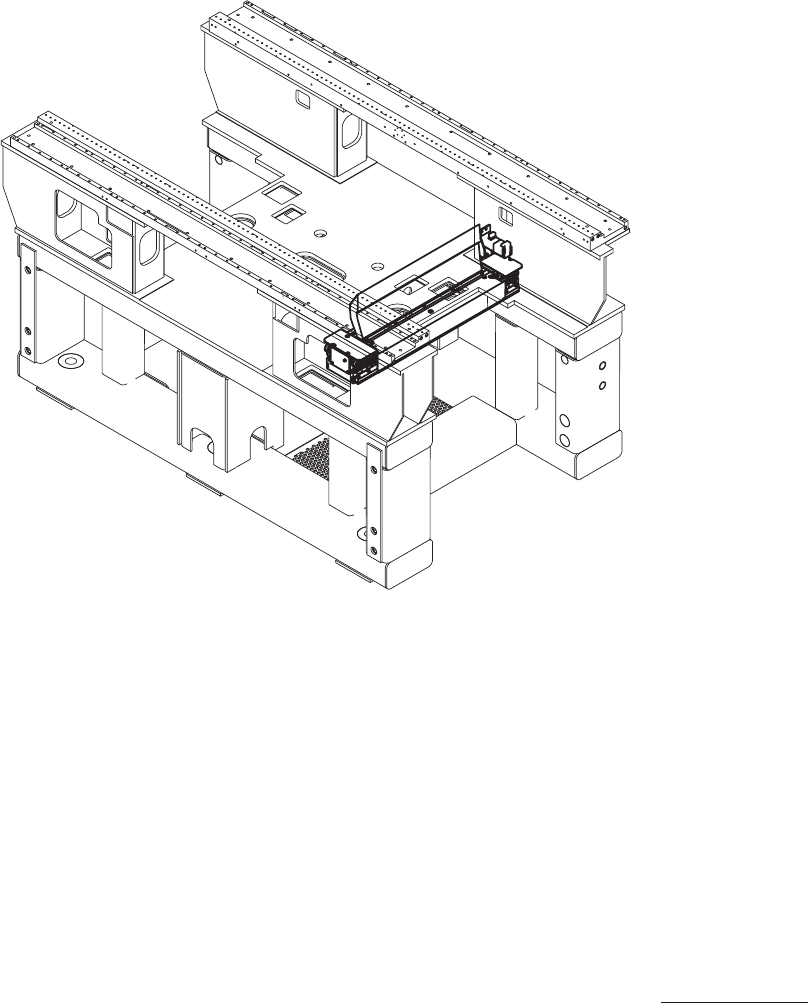

Fig. DD
カッタ部
B CUTTER SECTION B
MODEL GXH-1JS
0710-002
52
カッタ部
B CUTTER SECTION B

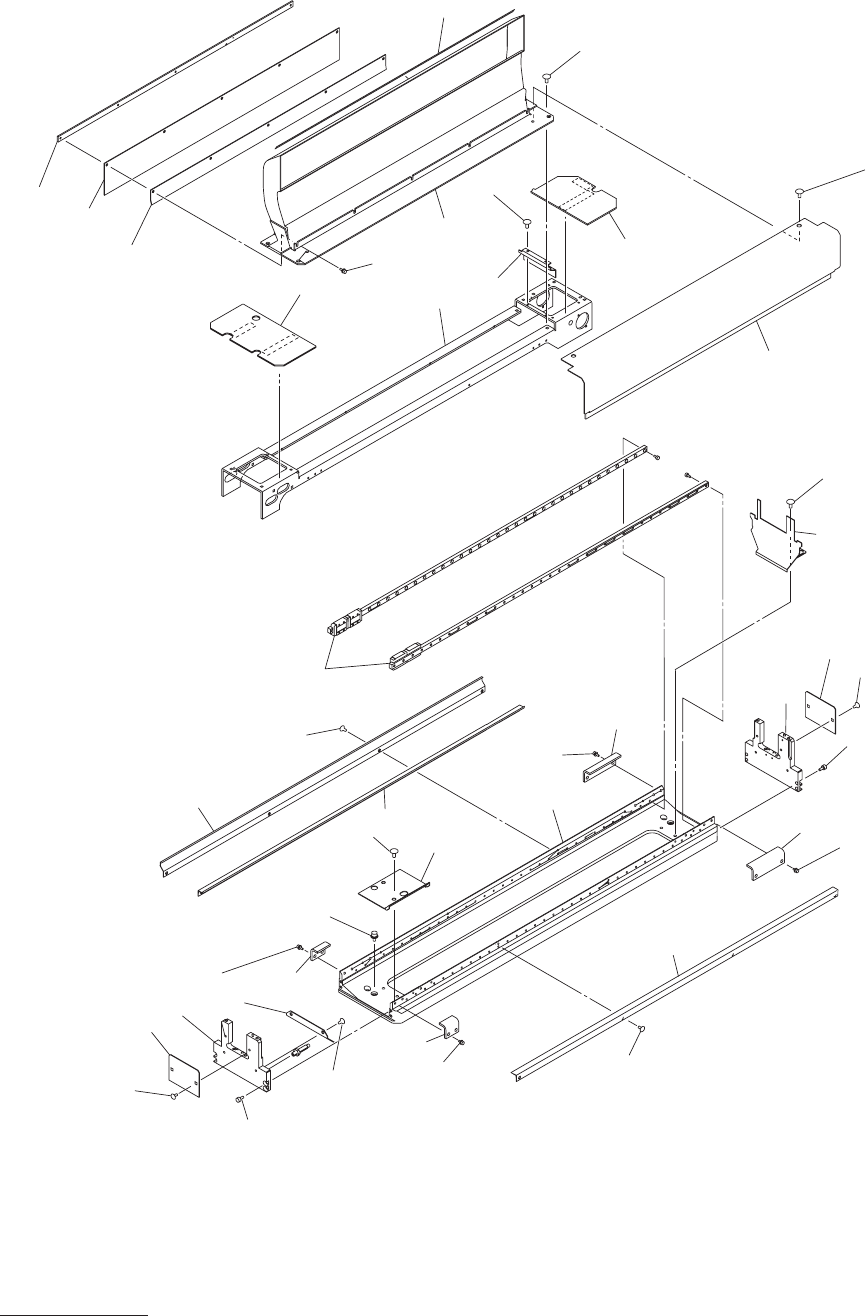

Fig. DD-1
ベースフレーム
Base Frame
59
36
6
42
5
37
15
49
14
53
22
28
21
67
63
.
55
.
58
17
58
66
62
.
54
.
32
66
62
.
54
.
59
1
65
61
.
52
.
2
31
57
25
59
8
32
57
66
62
.
54
.
33
33
57
3
66
62
.
54
.
58
17
53
27
59
26
注 1）
Notice 1)
注 1）リニアガイドは交換できませんので、受注対象外になります。
Notice 1) Because the linear guide can not be replaced, it is not included
in the available items to be ordered.
MODEL GXH-1JS
1012-005
53
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301370385 COVER 1 829DD-010-001 211A9793
2 6301370392 COVER 1 829DD-010-002 211A9794
3 6301605814 COVER 1 829DD-010-003 211AC456
5 6301370514 COVER 1 829DD-010-005 211A9803
6 6301375731 COVER 1 829DD-010-006 211A9871
8 6301403618 COVER 1 829DD-010-008 211AA158
14 6301433363 PLATE 1 829DD-010-014 211DB394
15 6301370309 PLATE 1 829DD-010-015 211DA584
17 6301370378 PLATE 2 829DD-010-017 211DA586
21 6301365596 BRACKET 1 829DD-010-021 211F9662
22 6301380407 BRACKET 1 829DD-010-022 211F9818
25 6301372648 BRACKET 1 829DD-010-025 211F9758
26 6301380421 BRACKET 1 829DD-010-026 211F9820
27 6301403649 BLOCK 1 829DD-010-027 211G4318
28 6301403656 BLOCK 1 829DD-010-028 211G4319
31 6301260068 NAME PLATE,INDEX 1 829DD-010-231 6P460124
32
6301370217 BLOCK 2 829DD-010-032 211G4069
33 6301370224 BLOCK 2 829DD-010-033 211G4070
36 6301380384 BASE 1 829DD-010-056 210A2400
37
6301371917 FRAME 1 829DD-010-057 210B3900
42
6301538662 SUPPORT 1 829DD-010-072 211K3356
49 6301366906 GUIDE 1 829DD-010-049 212A2219
52
6300007527 BOLT,HEX-SCT 5 M3X10 221A0007
53
6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
54
6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
55
6300007725 BOLT,HEX-SCT 4 M5X6 221A0027
57
4110505004 SCR TRS 3X6 10 M3X6 TRS 221E0529
58 4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
59 4111408007 SCR TRS 5X6 10 M5X6 TRS 221E0536
61 4111412806 WASHER SPR 3 5 SW3 221H0281
62
4111412905 WASHER SPR 4 8 SW4 221H0284
63
4111416705 WASHER SPR 5 4 SW5 221H0287
65
4111413902 WASHER V 3X7X0.5 5 FW3 221H0312
66
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
67
4111414107 WASHER V 5X10X1 4 FW5 221H0318
DD-1
