00198051-02_IM_SetupCenter_8.1_EN.pdf - 第22页

Setup Center Application Installation Individual Setup Types and Next Steps 5.2.1 Setup T ype – SIPLACE Setup Center Complete 22 Installation Manual SIPLACE Setup Center 8.1 ► Click Next . Step 6 ► The Setup Type dialog …

Setup Center Application Installation

General Settings

Installation Manual SIPLACE Setup Center 8.1 21

Step 4

► Enter your User Name and Company Name in the Customer Information dialog box. Both boxes

must be filled in before the installation process can be continued.

"Customer Information" dialog box

► Click Next.

Step 5

► The Choose Destination Location dialog box prompts you to enter the name of the folder in which

SIPLACE Setup Center should be installed. The system suggests a default destination folder for you.

► However, you can click the Browse button to open a dialog box in which you can enter or select the

path you want to use. If the folder you specify does not exist, it is created after having accepted a

confirmation dialog.

"Choose Destination Location" dialog box

Setup Center Application Installation

Individual Setup Types and Next Steps 5.2.1 Setup Type – SIPLACE Setup Center Complete

22 Installation Manual SIPLACE Setup Center 8.1

► Click Next.

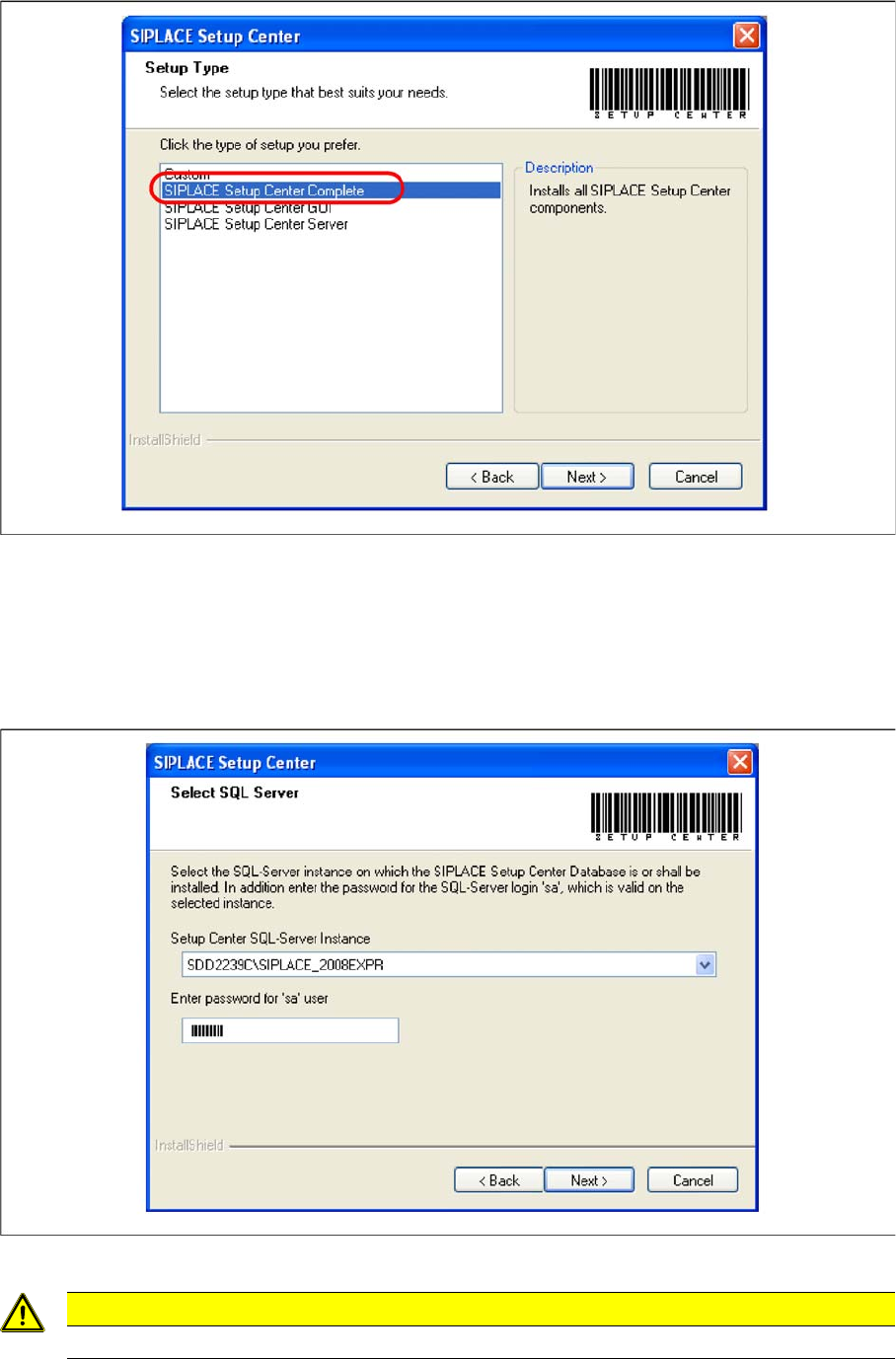

Step 6

► The Setup Type dialog box displays the SIPLACE Setup Center components you could choose for

installation.

"Setup Type" dialog box

► Select the setup type you want to install in the Setup Type dialog box.

► Click Next.

► If you select a type, a short description of the setup type in question appears in the Description box.

5.2

5.2 Individual Setup Types and Next Steps

Individual Setup Types and Next Steps

5.2.1

5.2.1 Setup Type – SIPLACE Setup Center Complete

Setup Type – SIPLACE Setup Center Complete

This setup type contains all SIPLACE Setup Center components for operating the system on a single

computer. It is used to install a Setup Center stand alone system.

The Setup detects weather SQL Server has already been installed.

Select this type to install all SIPLACE Setup Center system components (GUI, Database) on one com

pute. However, it is possible to integrate further clients on other computers.

Step 1

Run through the steps in chapter "General Settings".

NOTICE

After choosing a setup type which includes a database installation, the setup program immedi

ately checks if SQL server is installed on the computer.

Setup Center Application Installation

5.2.1 Setup Type – SIPLACE Setup Center Complete Individual Setup Types and Next Steps

Installation Manual SIPLACE Setup Center 8.1 23

► Select the SIPLACE Setup Center complete system setup type.

► Click Next.

Step 2

► Enter the information required to be connected with the SQL Server and database in the Select SQL-

Server dialog box.

► Choose your SQL Server Instance from the pull-down menu.

CAUTION

Only the SQL Server Instances on the local computer are selectable
