Setup Center Application Installation

5.2.3 Setup Type – SIPLACE Setup Center Server Individual Setup Types and Next Steps

Installation Manual SIPLACE Setup Center 8.1 31

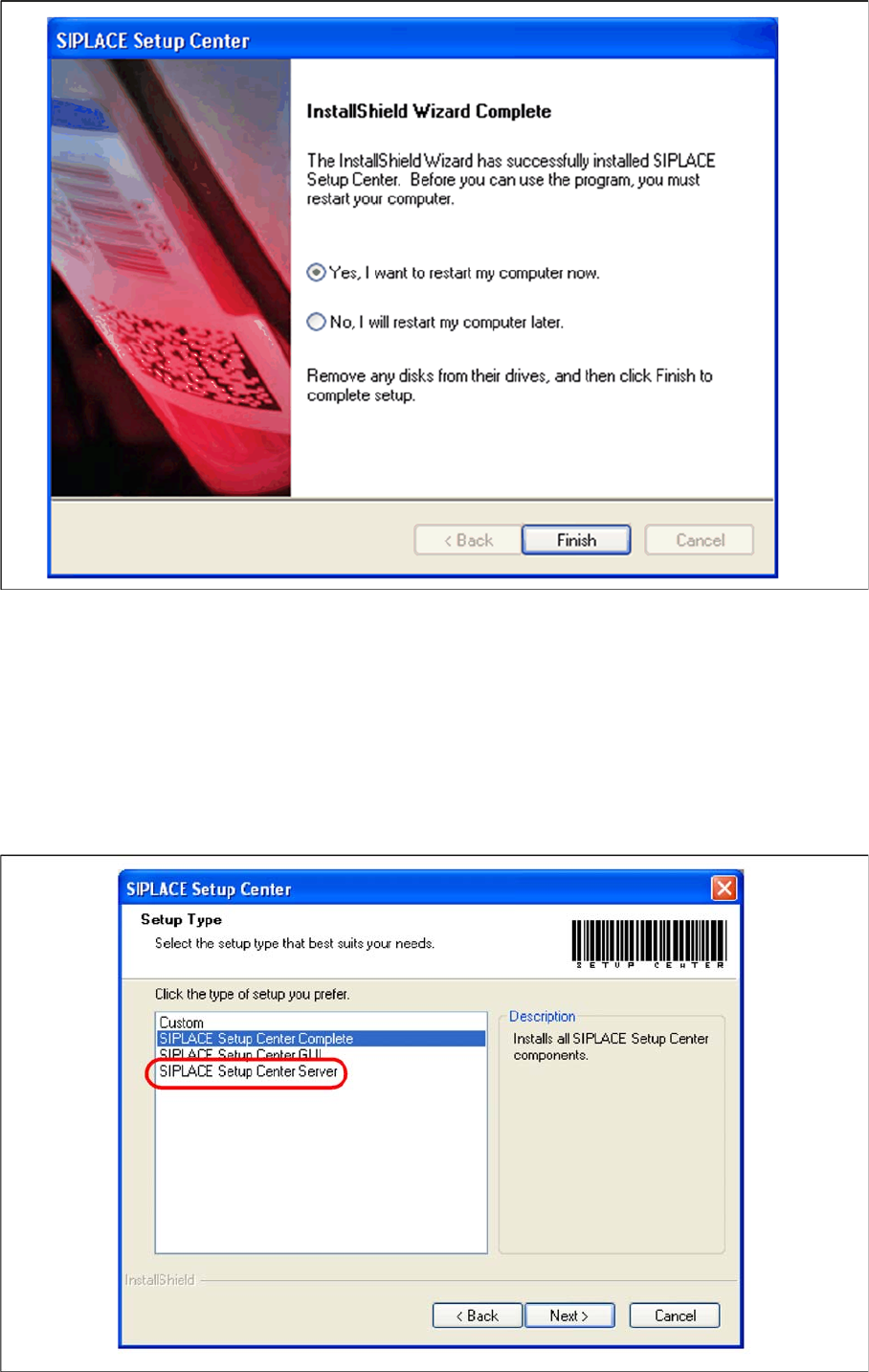

► Click Finish.

5.2.3

5.2.3 Setup Type – SIPLACE Setup Center Server

Setup Type – SIPLACE Setup Center Server

This setup type contains the database components of the SIPLACE Setup Center. Setup detects if SQL

Server has already been installed. Select this type to install the SIPLACE Setup Center database to a

SQL Server.

Step 1

► Run through the steps in chapter "General Settings".

Setup Center Application Installation

Individual Setup Types and Next Steps 5.2.3 Setup Type – SIPLACE Setup Center Server

32 Installation Manual SIPLACE Setup Center 8.1

► Select the SIPLACE Setup Center Database setup type.

► Click Next.

Step 2

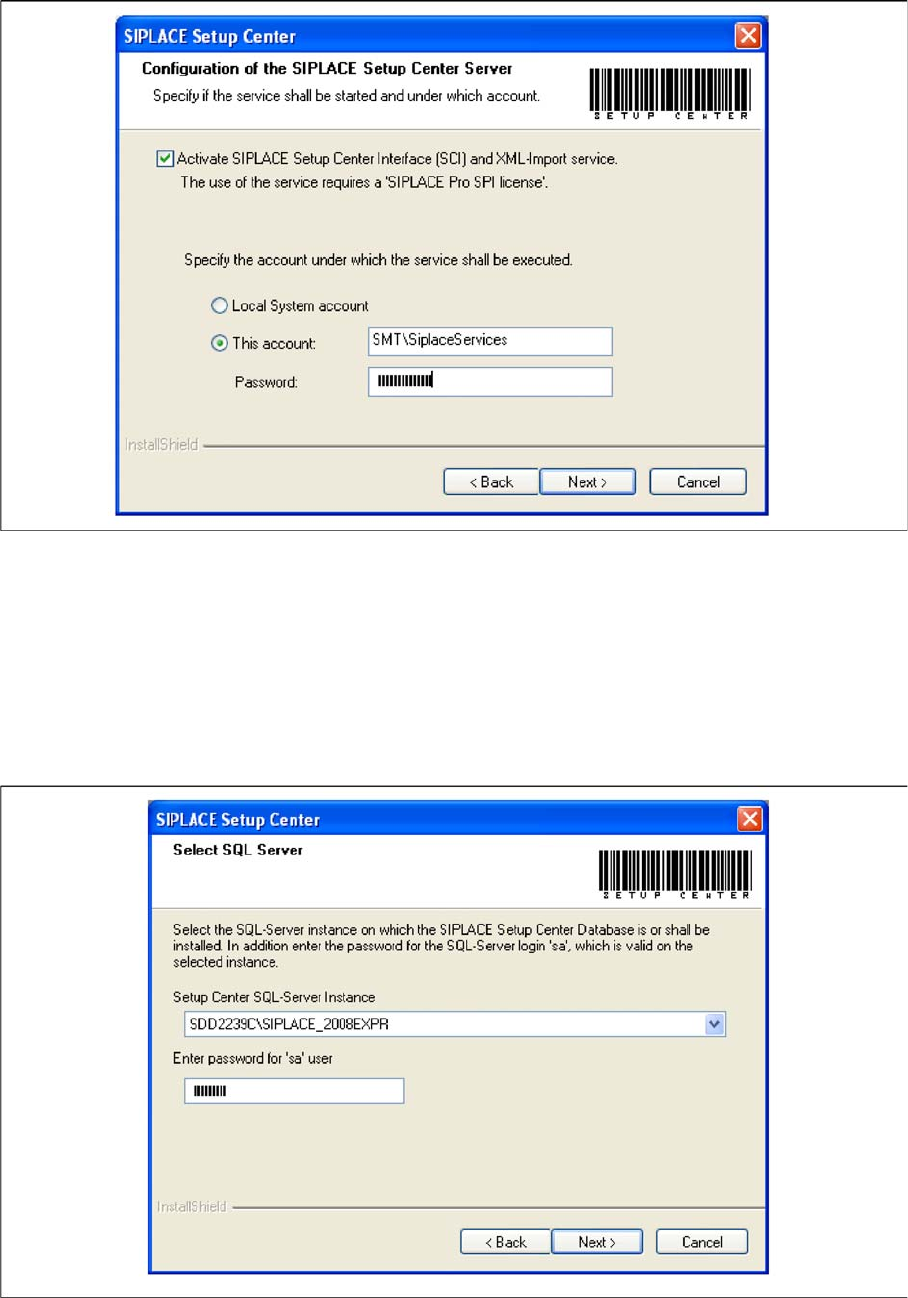

► Tick the checkbox if the SIPLACE Setup Center Service is to be started.

► Select the account from which the Service is to be started (local system or a customer-specific ac

count).

► Click Next.

Step 3

► Enter the information required to be connected with the SQL Server and database in the Select SQL-

Server dialog box.

Setup Center Application Installation

5.2.3 Setup Type – SIPLACE Setup Center Server Individual Setup Types and Next Steps

Installation Manual SIPLACE Setup Center 8.1 33

► Choose your SQL Server Instance from the pull-down menu.

► Enter the Password for the SQL Server user "sa", i.e. the SQL server system administrator.

► Click Next.

Step 3a

The following dialog appears, in case no database with the name SiplaceSetupCenter exists:

► Choose Select another SQL Server you return to the previous dialog.

► Click Next to create a new database.

Step 4

► The figure you enter in the MB text box defines the initial size of the SIPLACE Setup Center database

files (default: 50) which are to be created during the installation.

► Confirm the default value or enter the size you want in the MB text box.

CAUTION

Only the SQL Server Instances on the local computer are selectable.

NOTICE

This password is empty if SQL Server has been freshly installed. In this case, erase the dis

played default password. Subsequently, a window will open, prompting you to change this

password. You may accept the SIPLACE Service default password or choose one of your own.
