Barcode-Scanner Installation
6.3.3 Mobile Scanner Prerequisites Setup Motorola Scanner
Installation Manual SIPLACE Setup Center 8.1 63

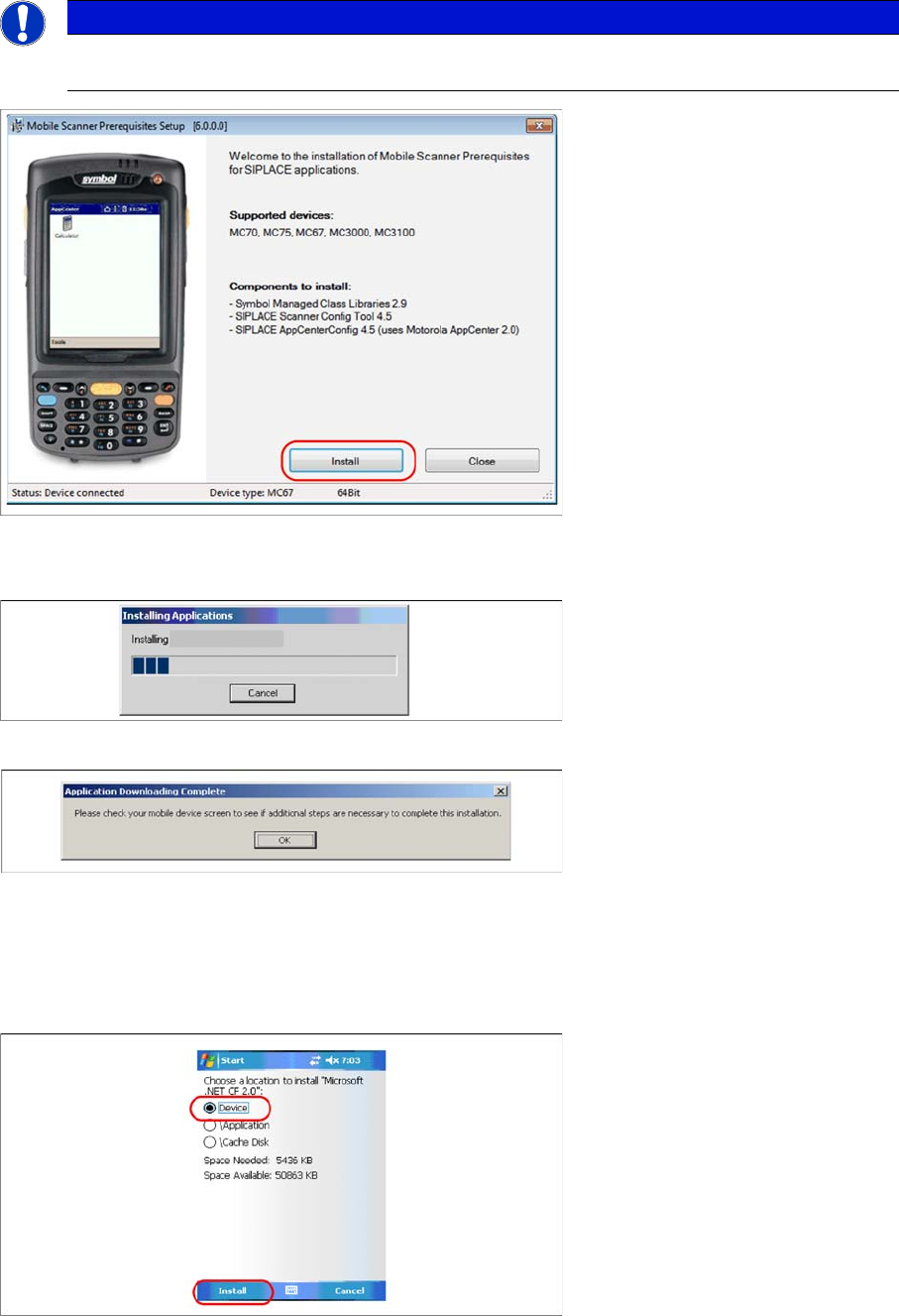

Place the scanner in its cradle if this has not already been done. The installation program automatically
detects the scanner type (Device type) and lists the necessary software packages for the installation.
► Click on Install to start the installation of the software packages.
► Please put the scanner into cradle, and press Continue to start the installation of Symbol AppCenter.
The transfer of the components to the scanner is beginning.
► After completion of the data transfer to the device click on OK to close the window.
Steps on Mobile Scanner Screen
The following steps must be carried out on the scanner to complete the installation. If all components
were successfully transferred to the scanner the installation of the components will start automatically.
► Press Install to continue with Microsoft Compact Framework 2.0 installation.
NOTICE
The installation program checks if the firmware version of the scanner complies with the mini
-
mum requirement. If this is not the case, update your scanner firmware first.
Barcode-Scanner Installation
Motorola Scanner 6.3.4 Setup Center Client Installation
64 Installation Manual SIPLACE Setup Center 8.1

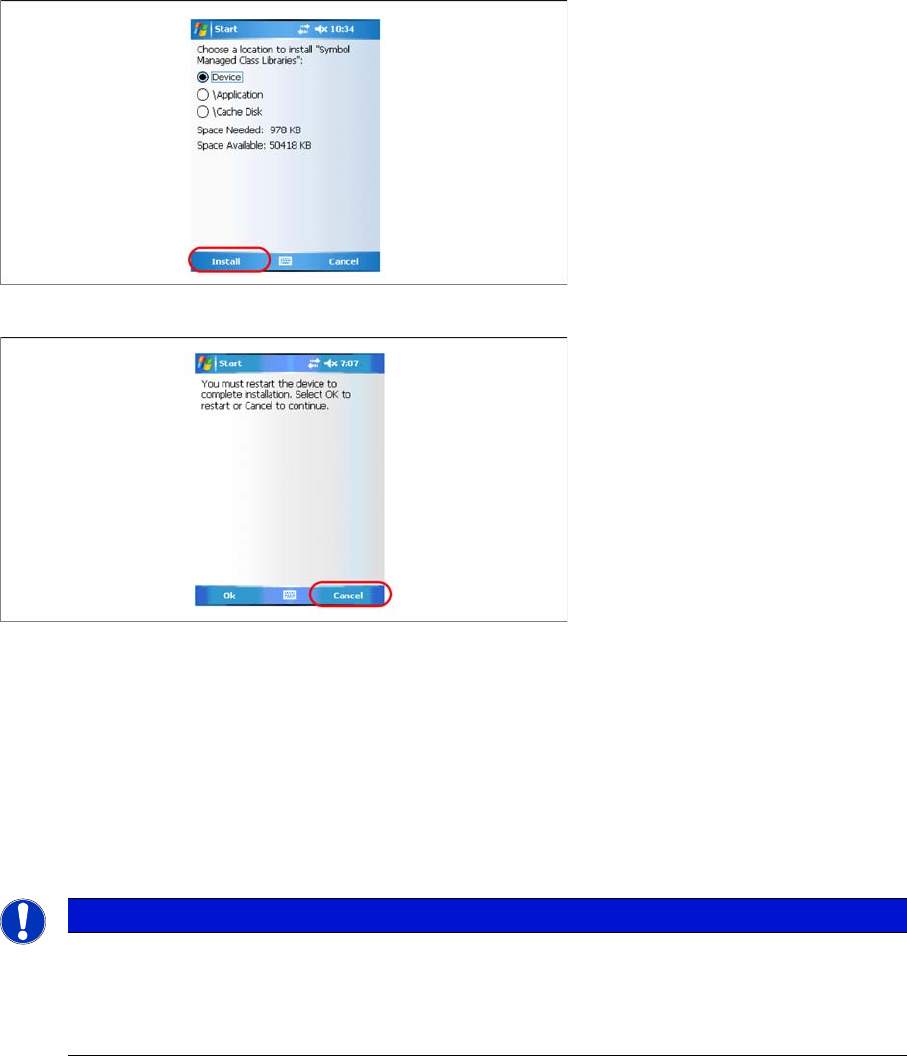

► Press Install to continue with Symbol Managed Class Libraries installation.
► The installation of Symbol AppCenter has finished. Press Cancel to continue with Setup Center Mo
-
bileScanner installation.
See also
6.3.4 Setup Center Client Installation [ ➙ 64]
6.3.4
6.3.4 Setup Center Client Installation
Setup Center Client Installation
The installation for Setup Center – MobileScanner is located in the directory "\MobileScanner\" of the
CD. Execute the file "TransferToPDA.exe" to start the installation.
NOTICE
In case of an upgrade installation exit the Setup Center Client before you start with the instal
-
lation procedure.
► Exit Setup Center Client with "File → Exit".
► Confirm any upcoming message which refers to an upgrade installation with "Yes" or "OK".
Barcode-Scanner Installation
6.3.4 Setup Center Client Installation Motorola Scanner
Installation Manual SIPLACE Setup Center 8.1 65

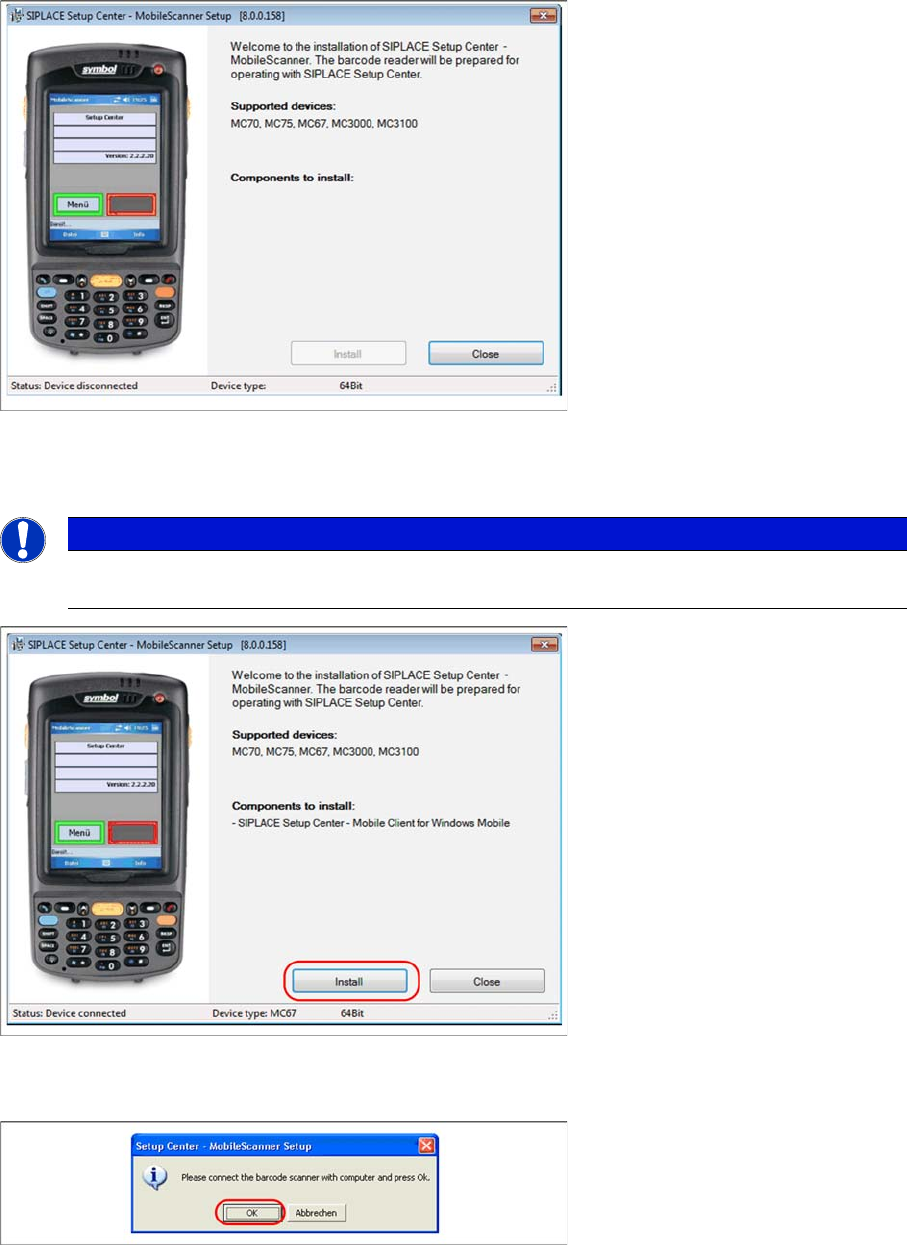

► Place the scanner in its cradle if this has not already been done. The installation program automat
-
ically detects the scanner type (Device type) and lists the necessary software packages for the in
-
stallation.
► Click on Install to start the installation of the software packages.
► Select "Continue" to proceed with the installation.
► Make sure that the scanner is placed in the basic station and connected to Setup Center.
► Select "OK" start the transfer of the software components to the scanner.
NOTICE
The installation program checks if the firmware version of the scanner complies with the mini
-
mum requirement. If this is not the case, update your scanner firmware first.
