User Manual 4022 591 98247
156 PPS-Pro v8.2 05.07
Guidelines for using PPS-Pro
TABLE 22 Feeder Name / Feederbar relation
A.5 Machine Configurations
This chapter describes the possible head configurations for the various
machine types.
A.5.1 FCM-II – FCM-IIM – FCM-IIXM
A.5.1.1 Head Configuration
The FCM-II machines can have all 1 to 16 heads (Placement Modules) defined.
Two (2) different PM Types exist for the FCM-II machines: PM/LASER and
WPM/VISION. The WPM/VISION module occupies 2 PM/LASER positions and
can only be placed on the odd (1, 3, 5, etc.) positions. A WPM head has always
one camera for package alignment.
MQ32X32 - - X X X X - - - -
MQ40X40 - - X X X X - - - -
PB23X23 - - X X X X - - - -
PB27X27 - - X X X X - - - -
PB35X35 - - X X X X - - - -
PQ100 - - X X X X - - - -
PQ132 - - X X X X - - - -
PQ164 - - X X X X - - - -
PQ196 - - X X X X - - - -
PQ244 - - X X X X - - - -
PQ52 - - X X X X - - - -
PQ68 - - X X X X - - - -
PQ84 - - X X X X - - - -
TQ05X05 - - X X X X - - - -
TQ07X07 - - X X X X - - - -
TQ10X10 - - X X X X - - - -
TQ12X12 - - X X X X - - - -
TQ14X14 - - X X X X - - - -
TQ14X20 - - X X X X - - - -
TQ20X20 - - X X X X - - - -
TS06X16 - - X X X X - - - -
TS08X20 - - X X X X - - - -
TS10X20 - - X X X X - - - -
WP203X03 X X X X X X - - X X
WP205X05 X X X X X X - - X X
WP206X06 X X X X X X - - X X
WP207X06 X X X X X X - - X X
WP207X07 X X X X X X - - X X
WP213X10 X X X X X X - - X X
WP405X05 X X X X X X - - X X
4022 591 98247 User Manual
05.07 PPS-Pro v8.2 157
Guidelines for using PPS-Pro
TABLE 23 Placement Head / Feeder Position Relation
A.5.1.2 Feederbar Configuration
For FCM-II type machines, each PM/Laser Head has access to ONE
Feederbar_ITF. A WPM/Vision Head has access to TWO Feederbar_ITF.
A.5.1.3 Head Versus Feederbar Positions
The Feederbar_ITF has 11 slots on which a maximum of 6 8mm tapes fit
(TTF2_08, ITF2_08). These are then placed in slot: 1, 3, 5, 7, 9 and 11. Thus, it
is not possible to place an 8mm feeder in slot 1 and 2!

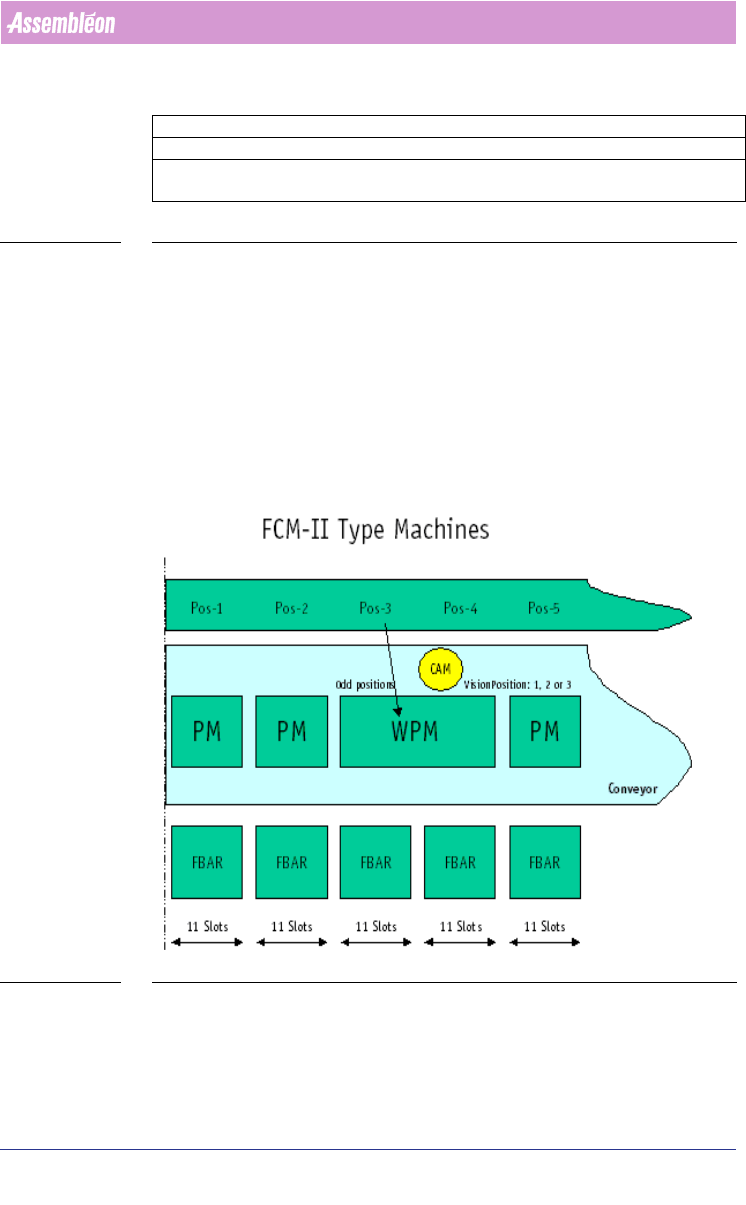

Following picture gives an overview of FCM-II type machines:
FIGURE 14 FCM-II machine diagram Top view
PM Type/Head Desc. Positions
PM/LASER Head with Laser Module 1, 2, 3, …. 16 (all positions)
WPM/VISION Head with camera: Occupies 2
PM/LASER positions
1, 3, 5, … 15 (odd positions)
User Manual 4022 591 98247
158 PPS-Pro v8.2 05.07
Guidelines for using PPS-Pro
A.5.2 AX
A.5.2.1 Head Configuration
There are two (2) types of AX machines:
■ AX Base-3 (3 sections)
■ AX Base-5 (5 sections)
For each type two (2) different PM Types (heads) exist: CompactPlacemen-
tRobot and StandardPlacementRobot. The SPR occupies 2 CPR positions and
can only be placed on the odd (1, 3, 5, etc.) positions. The Base-3 has a total
of 12 Head positions and the Base-5 has a total of 20 Head positions. Each of
the heads (PM Types) has one TEU (Toolbit Exchange Unit).
TABLE 24 AX machine head relation to Feederposition
A.5.2.2 Feederbar Configuration
For AX machine types, a ‘group’ of CompactPlacement Robot Heads and Stand-
ardPlacementRobot Heads have access to ONE feederbar: FCMII_upgrade (also
named section). A ‘group’ exists of 4 head positions.
A.5.2.3 Head Versus Feederbar Positions
This Feederbar has 44 slots on which a maximum of 24 8mm tapes fit
(TTF_08, ITF2_08). These are placed in slot: 1, 3, 5, 7, 9 and 11 in every ‘head
position bank’. Thus, it is not possible to place a 8mm feeder in slot 1 and 2 at
the same time!
A Compact Placement Robot has access to 11 slots on the FCMII_upgrade
feederbar. A Standard Placement Robot has access to 2 times 11 slots on the
FCMII_upgrade feederbar.
A base-3 machine has 3 FCMII_upgrade feederbars (3 sections). Head
positions 1-4 are section 1, head positions 5-8 are section 2 and head
positions 9-12 are section 3. The same applies to a base-5 machine, where
head positions 13-16 are section 4 and head positions 17-20 are section 5.
PM Type/Head Desc. Base-3 Base-5
CompactPlacement Robot Head with
Laser Module
1, 2, 3, …. 12
(all positions)
1, 2, 3, …. 20
(all positions)
StandardPlacement Robot Head with
Laser Module
1, 3, 5, … 11
(odd positions)
1, 3, 5, … 19
(odd positions)
