User Manual 4022 591 98247 160 PPS-Pro v8.2 05.07 Guidelines for using PPS-Pro A.5.3.2 Feederbar Configuration The maxim um amoun t of feed erbars these ma chines can hav e is 4 (doubl e sided A CM; Feed erbar 1-4). An A…
4022 591 98247 User Manual
05.07 PPS-Pro v8.2 159
Guidelines for using PPS-Pro
Following picture gives an overview of AX machine types:
FIGURE 15 AX machine diagram Top view
A.5.3 ACM, AQ-1 and D9
A.5.3.1 Head Configuration
An ACM machine can have 2 heads (Single Sided) or 4 heads (Double Sided).
An AQ-1-module and D9 machine are always Single Sided meaning they have 2
heads on the front side of the machine. A Double Sided ACM has also 2 heads
on the rear side of the machine. The heads are just numbered 1 and 2 for a
Single Sided machine and 1, 2, 3, and 4 for a Double Sided Machine.
TABLE 25 Number of heads for ACM, AQ-1 and D-9
Head ACM AQ-1 D9
1, 2 (Single Sided) X X X
1, 2, 3, 4 (Double Sided) X - -
User Manual 4022 591 98247
160 PPS-Pro v8.2 05.07
Guidelines for using PPS-Pro
A.5.3.2 Feederbar Configuration
The maximum amount of feederbars these machines can have is 4 (double
sided ACM; Feederbar 1-4). An AQ-1-module and D9 machine are always single
sided, thus have 2 feederbars (1 and 2).
For the ACM and D9 machine this feederbar can either be a:
FeederTrolley - A moveable feederbar with 25 slots on which a maximum of
25 8mm tapes fit (ITF2_08).
FeederBank1 - A fixed feederbar with 25 slots on which a maximum of 25
8mm tapes fit (ITF2_08).
TrayTrolley1 - A moveable feederbar which has 50 pallets. In each pallet a
maximum of 2 trays can be defined.
TrayPallet1 - A fixed feederbar which has 1 pallet. In this pallet a maximum of
2 trays can be defined.
For the AQ-1 this can either be an ACM_Feeder_Bank, ACM_Feeder_Trolley,
ACM_Tray_Pallet or ACM_Tray_ Trolley.
ACM_Feeder_Trolley - A moveable feederbar with 25 slots on which a
maximum of 25 8mm tapes fit (ITF2_08).
ACM_Feeder_Bank - A fixed feederbar with 25 slots on which a maximum of
25 8mm tapes fit (ITF2_08).
ACM_Tray_Trolley - A tray trolley which has 48 pallets. In PPS on each pallet a
maximum of 2 trays can be defined.
ACM_Tray_Pallet - A fixed pallet. In PPS a maximum of 2 trays can be defined
on it.
4022 591 98247 User Manual
05.07 PPS-Pro v8.2 161
Guidelines for using PPS-Pro
Following picture gives an overview of these machines types:

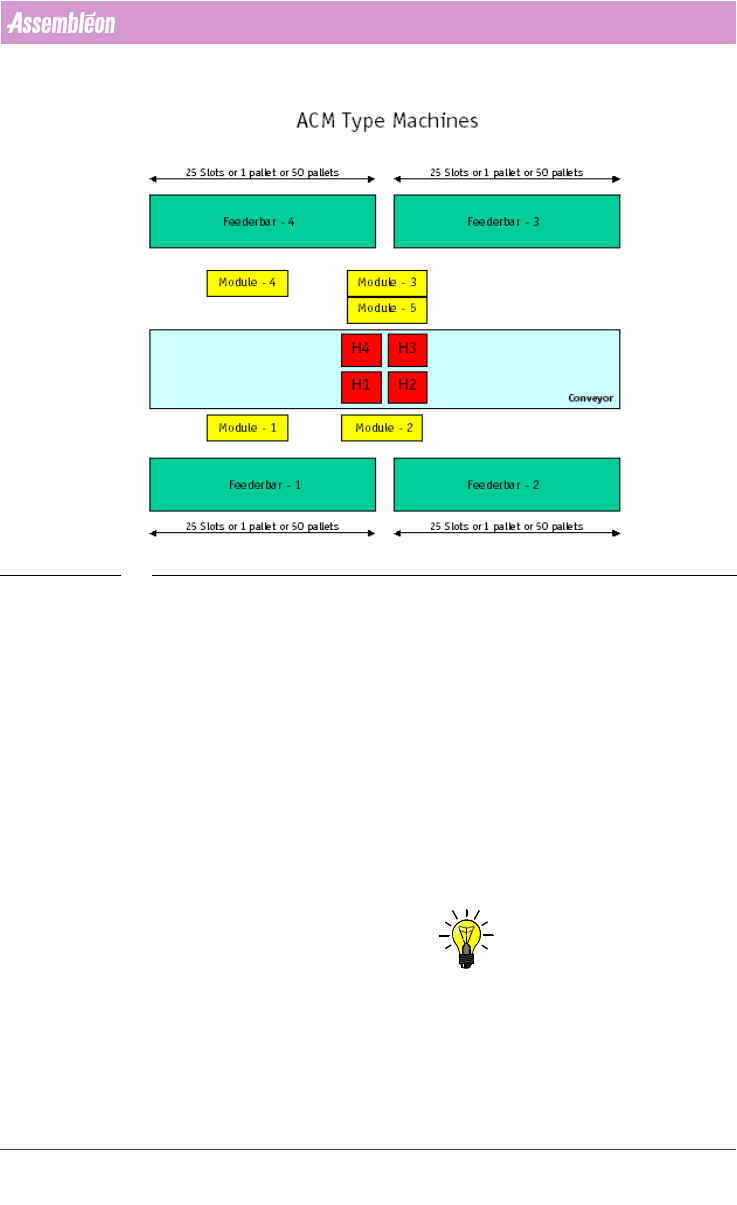

FIGURE 16 ACM machine diagram Top view
A.5.3.3 Module Positions
The machines have 5 Module positions. In these modules the following units
can be placed:
■ Module-1: Flux Unit or Toolbit Exchange Unit
■ Module-2: Chip Scale Package Camera or Fine Pitch Package Camera
■ Module-3: Chip Scale Package Camera or Fine Pitch Package Camera
■ Module-4: Toolbit Exchange Unit
■ Module-5: Flux Unit
Following restrictions apply to these modules:
■ When on Module-5 a Flux Unit is defined, then Module-3 MUST contain a
Chip Scale Package Camera!
NOTE: Refer to the OFI parameters for these modules (see A.6 "Machine OFI
Parameters" on page 162) .
