4022 591 98247 User Manual
05.07 PPS-Pro v8.2 63
PPS-Pro GUI
2.25.1.1 Optimizer Machine Specific Control for Powerline &
A-series
SCREEN 40 Philips Optimizer Machine-Specific Controls Powerline and A-Series
Function of the different fields:
■ Max. Run Time: Means the maximum allowed time to calculate a specific
cell. This includes the time to find the “first” solution if “difficult” calcu
-
lations are performed. If this time is passed the optimizer will stop. Either
all machine programs and listings are created or the optimizer will fail
with an error if no solution is found in that specified set time.
■ Desired Cycle Time: Means the desired time that the machines in a cell
should reach. If the desired time has been achieved the optimizer will
stop.
■ Quality: Fast means ‘stop at first feasible solution’. Good means the time
that the optimizer can calculate taking in to account the “Max. Run Time”
and “Desired Cycle Time”.
■ Limitations Constraint File: This file contains limitations that can be set
on Feeders, and Part Numbers.
(see 2.31 on page 77)
User Manual 4022 591 98247
64 PPS-Pro v8.2 05.07
PPS-Pro GUI
■ FCM Transport Settings: This is only relevant for cells that contain FCM
machines. This is used is for setting the transport settings of these
machines.
(see 3.2.11 on page 100)
NOTE: If not default settings are made but FCM Transport Settings are used as in
screen 40. The FCM Transport settings will overwrite the settings that are
made via the ALE file.
2.25.1.2 Optimizer Machine Specific Control for Gemline

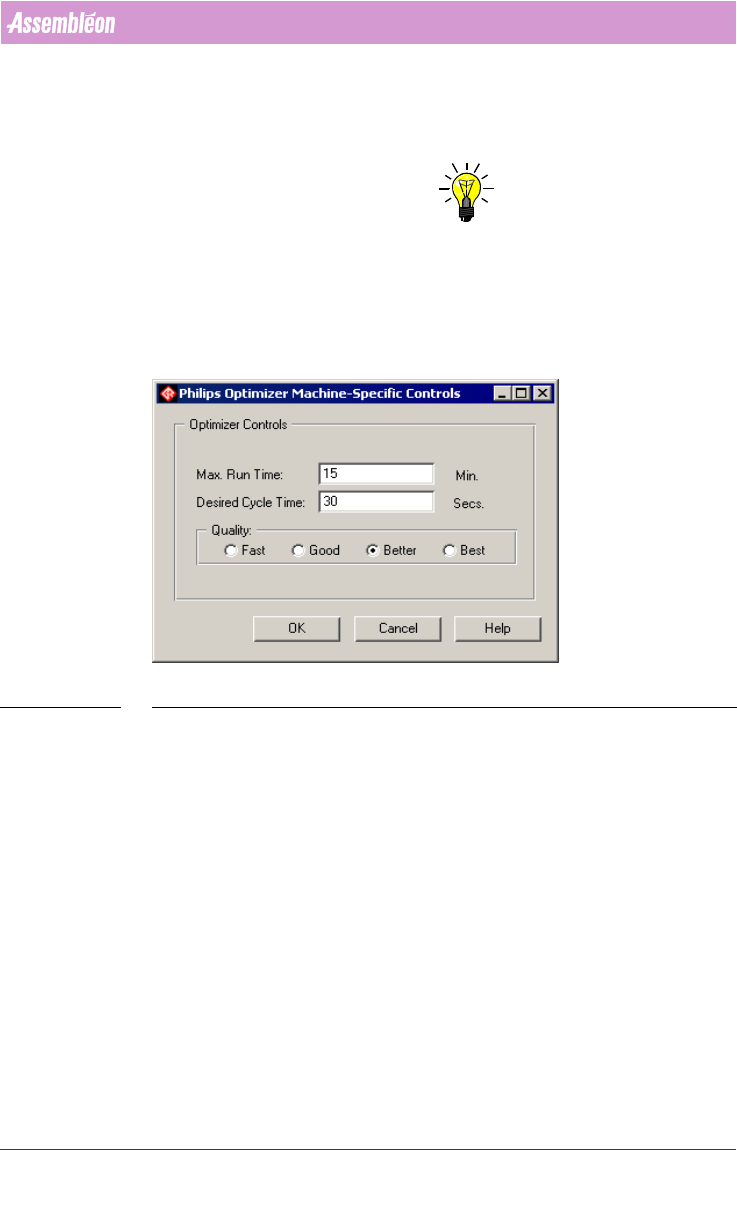

SCREEN 41 Philips Optimizer Machine-Specific Controls Gemline
Max. Run Time and Desired Cycle Time are not used.
■ Fast: Provides a parts placement optimization in the shortest time to
produce. The Gemline optimizer will make 1 run.
■ Good: Provides more efficient optimization, but takes a longer time to
produce. The Gemline optimizer will make 4 runs.
■ Better: Provides more efficient optimization, but takes even longer to
calculate. The Gemline optimizer will make 7 runs.
■ Best: Provides the most efficient optimization, but takes the longest time
to calculate. The Gemline optimizer will make 10 runs.
4022 591 98247 User Manual
05.07 PPS-Pro v8.2 65
PPS-Pro GUI
2.25.1.3 Generate the production program
SCREEN 42 Program All
Press the Program All or Program button in the Program Machines tab.
If family or combined Product calculation is needed the Program All button
must be used.
