User Manual 4022 591 98247 74 PPS-Pro v8.2 05.07 PPS-Pr o GUI 2.29.2 Pre-assignment of Nozzles 2.29.2.1 For FCM Pre-assignmen ts of n ozzles f or FCMs can be done in .con fil es. The n ozzle specification s in the .con f…
4022 591 98247 User Manual
05.07 PPS-Pro v8.2 73
PPS-Pro GUI

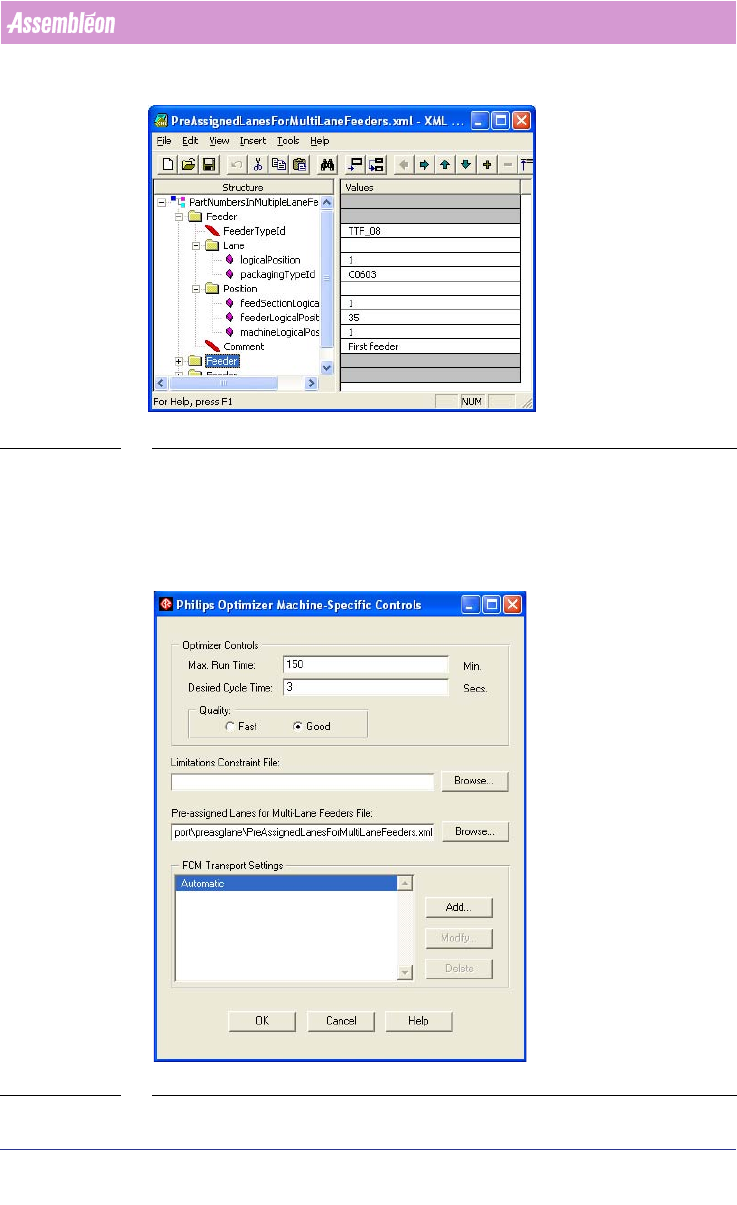

SCREEN 49 Lane pre-assignments in TTF feeders
Note that the name packagingTypeId means Partnumber.
It some situations it can be convenient to pre-assign parts which occur often
on the PCB to lane 1 of the TTF feeders, and leave the other lane open for the
optimizer to fill in with other parts.
The XML file can be entered in the machine specific controls:
SCREEN 50 Adding TTF lane pre-assignments in Machine specific controls
User Manual 4022 591 98247
74 PPS-Pro v8.2 05.07
PPS-Pro GUI
2.29.2 Pre-assignment of Nozzles
2.29.2.1 For FCM
Pre-assignments of nozzles for FCMs can be done in .con files. The nozzle
specifications in the .con file override the specifications in the ALE file
(see
2.30 "Use the Setup editor" on page 76).
SCREEN 51 example FCM nozzle pre-assignment
2.29.2.2 Nozzle Pre-assignment in TEU of AX
This feature is only allowed if the AX machine has machine software version
1.21 or later. With older AX machine software it is advised to keep the current
toolbit assignments which have been specified as defaults in older ALE files.
With machine software 1.21 and onwards it is allowed to leave the TEU empty.
In the CON file it is possible to pre-assign toolbits to the TEU, it is also allowed
to assign more than one special toolbit to a TEU. For AX machines with
component vision it is not allowed to have nozzle pre-assignments in the ALE
file, otherwise the RTB cannot be used anymore.
example:
Version: CIMBridge 3.4 Setup File
Configuration: "M_AX_5_20" {
Nest: {
Position: "1"
Tool: "L5"
Tool: "L4"
4022 591 98247 User Manual
05.07 PPS-Pro v8.2 75
PPS-Pro GUI
}
Nest: {
Position: "2"
Tool: "L5"
Tool: "L4"
}
Nest: {
Position: "3"
Tool: "L3"
Tool: "L2"
Tool: "L3"
Tool: "L4"
Tool: "L5"
Tool: "L6"
Tool: "L7"
Tool: "SL001"
}....
AX Toolbits that are pre-assigned are always copied to the output. Customers
with machine software 1.21 Note: each TEU should at least contain one of: L2,
L3, L4 or L5 for calibration purposes, this will seldom be a point of extra
attention.
2.29.2.3 Pre assignment limitations on Powerline
It is possible to force the Powerline optimizer/generator to do no duplication
of feeders which are already pre-assigned. Only parts which are not yet
assigned may be added to the setup during optimization. To be able to use
this option, an environment variable must be specified. To specify this
variable take these steps: Go to Start >
Settings > Control Panel > System
and choose the Environment tab. Enter the following name in the
Variable
textfield: ‘LINE_PREASSIGNED_PICK_LIM’. The value of this variable must be
set to “YES” to use the above described functionality. Else specify “NO”.
NOTE: After changing this variable setting, PPS-Pro must be restarted.
2.29.2.4 Pre assignment limitations on A-Series
It is possible to force the A-Series optimizer/generator to do no duplication of
feeders which are already pre-assigned. Only parts which are not yet assigned
to may be added to the setup during optimization. To be able to use this
option, an ALE setting must be done for A-Series machines. The attribute
