0108-002 12mm ᏷࠹࡯ࡊࡈࠖ࡯࠳ 12mm TAPE FEEDER Fig. 2-3 ዊ࡝࡯࡞ࡎ࡞࠳ Small Reel Holder RL-1251S RL-1251S

MEMO

0108-002

12mm ᏷࠹࡯ࡊࡈࠖ࡯࠳ 12mm TAPE FEEDER

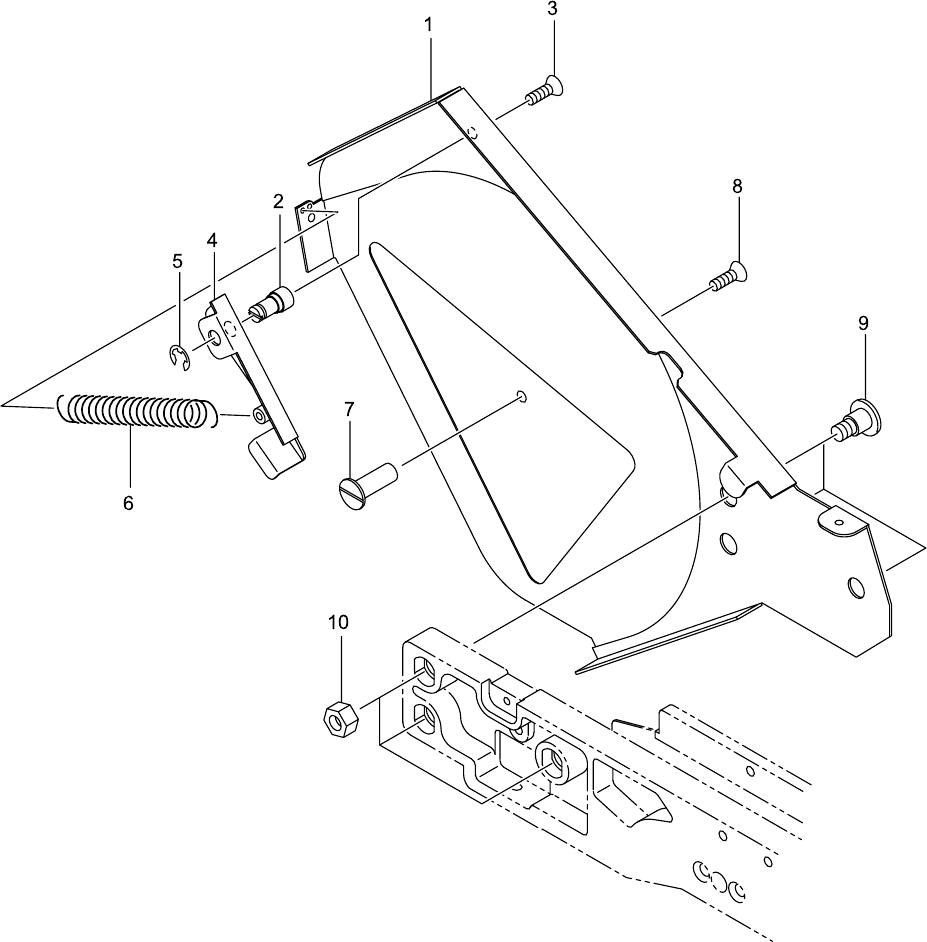

Fig. 2-3 ዊ࡝࡯࡞ࡎ࡞࠳ Small Reel Holder

RL-1251S RL-1251S

0003-001

2-3

ㇱຠ⇟ภ ㇱ ຠ ฬ ஻ ⠨

PART No. PART NAME REMARKS

CT-1290S

CT-1291S

CT-1292S

CT-1290TS

CT-1291TS

CT-1292TS

1 630 039 3613 FRAME 582GS-01B-001

2 630 039 3637 PIN,LOCATE 582GS-01B-004

3 630 036 0974 BOLT(FLT HEX-SCT) 582GS-01H-001

4 630 050 6235 LEVER(ASSY BRAKE)

5 411 001 0201 RING E 5 582GS-01H-002

6 630 039 3453 SPRING,TENSION 582GS-01B-005

7 630 040 4012 PIN,LOCATE 582GS-01B-006

8 630 036 0974 BOLT(FLT HEX-SCT) 582GS-01H-001

9 630 010 6534 BOLT(REEL HOLDER) 582GS-01B-007

10 411 004 6903 NUT HEX 6 M6-3 F

⷗಴⇟

ภ

Key No.

ᵈᗧ

NOTE

ᢙ㊂

Q'ty
