MEMO

0108-002

4-2

ㇱຠ⇟ภ ㇱ ຠ ฬ ஻ ⠨

PART No. PART NAME REMARKS

CT-2490L-08,12,16

CT-2491L-20,24

CT-2490TL-08,12,16

CT-2491TL-20,24

111 -1 630 039 4733 SPACER 1111 749P--01B-081

111 -2 630 037 2519 BOLT(BIND TAPPING) 4444 749P--01H-013

112 630 010 6046 PIN,LOCATE 1111 749P--01B-050

113 411 002 2600 SCR FLT 3X6 1111 M3X6 FLT

114 630 098 4477 ASSY,DISK 1111

114 -1 630 050 7294 DISK(ASSY REEL SOCKET) 1111

114 -2 630 039 3309 SPRING,FLAT 1111 749P--01B-068

114 -3 630 037 3042 MACHINE SCREW 2222 749P--01H-006

ᢙ㊂

Q'ty

ᵈᗧ

NOTE

⷗಴⇟

ภ

Key No.

MEMO

0108-002

24mm ᏷࠹࡯ࡊࡈࠖ࡯࠳ 24mm TAPE FEEDER

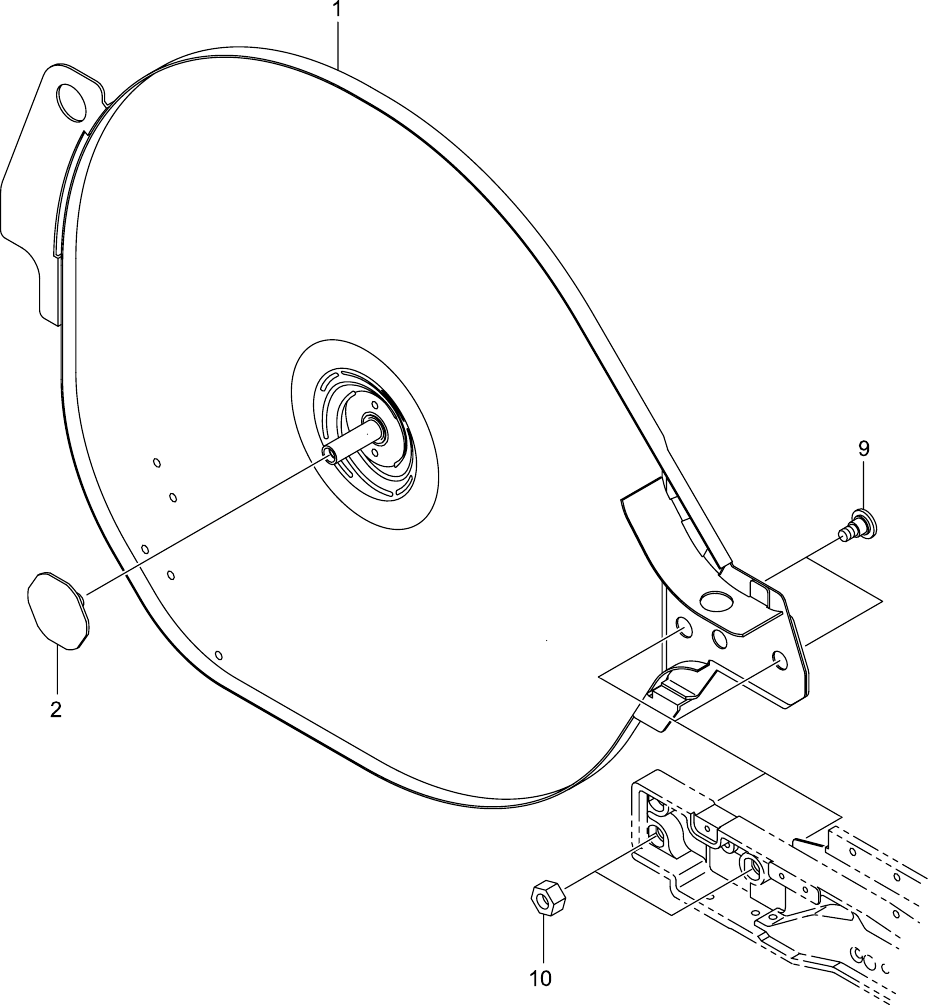

Fig. 4-3 ᄢ࡝࡯࡞ࡎ࡞࠳ Large Reel Holder

RL-2451L RL-2451L
