0003-001 32mm ࠹ࡊࡈࠖ࠳ 32mm TAPE FEEDER 㧔ࠛࡦࡏࠬ࠹ࡊ↪㧕 (for Embossed Tape) Fig. 5-1 ࠞ࠶࠻ࡏ࠺ࠖㇱ Cassette Body Section
0108-002
4-6
ㇱຠ⇟ภ ㇱ ຠ ฬ ⠨
PART No. PART NAME REMARKS
CT-2490TL-08,12,16
CT-2491TL-20,24
10 630 071 0656 ASSY,BRACKET(TG-2460) 1
10 630 071 0717 ASSY,BRACKET(TG-2461) 1
11 630 054 4800 BRACKET 1 1 671TP-01B-001
12 630 070 7601 BRACKET(GRIP) 1 1 671TP-01B-002
12 -1 630 085 1526 UNIT,I/O 1 1 671TP-01H-001
13 411 054 8506 NUT HEX 4 1 1 M4 F
14 411 113 4708 SCR FLT 4X10 1 1 M4X10 FLT
16 630 039 7079 TUBE,WIRING 1 671TP-01H-002
16 630 041 6237 TUBE,WIRING 1 671TK-01H-002
17 411 140 7208 SCR FLT 4X6 2 2 M4X6 FLT
ᢙ㊂
Q'ty
ᵈᗧ
NOTE
⇟
ภ
Key No.
(YELLOW)
(ORANGE)
YELLOW
ORANGE
0003-001
32mm ࠹ࡊࡈࠖ࠳ 32mm TAPE FEEDER
㧔ࠛࡦࡏࠬ࠹ࡊ↪㧕 (for Embossed Tape)

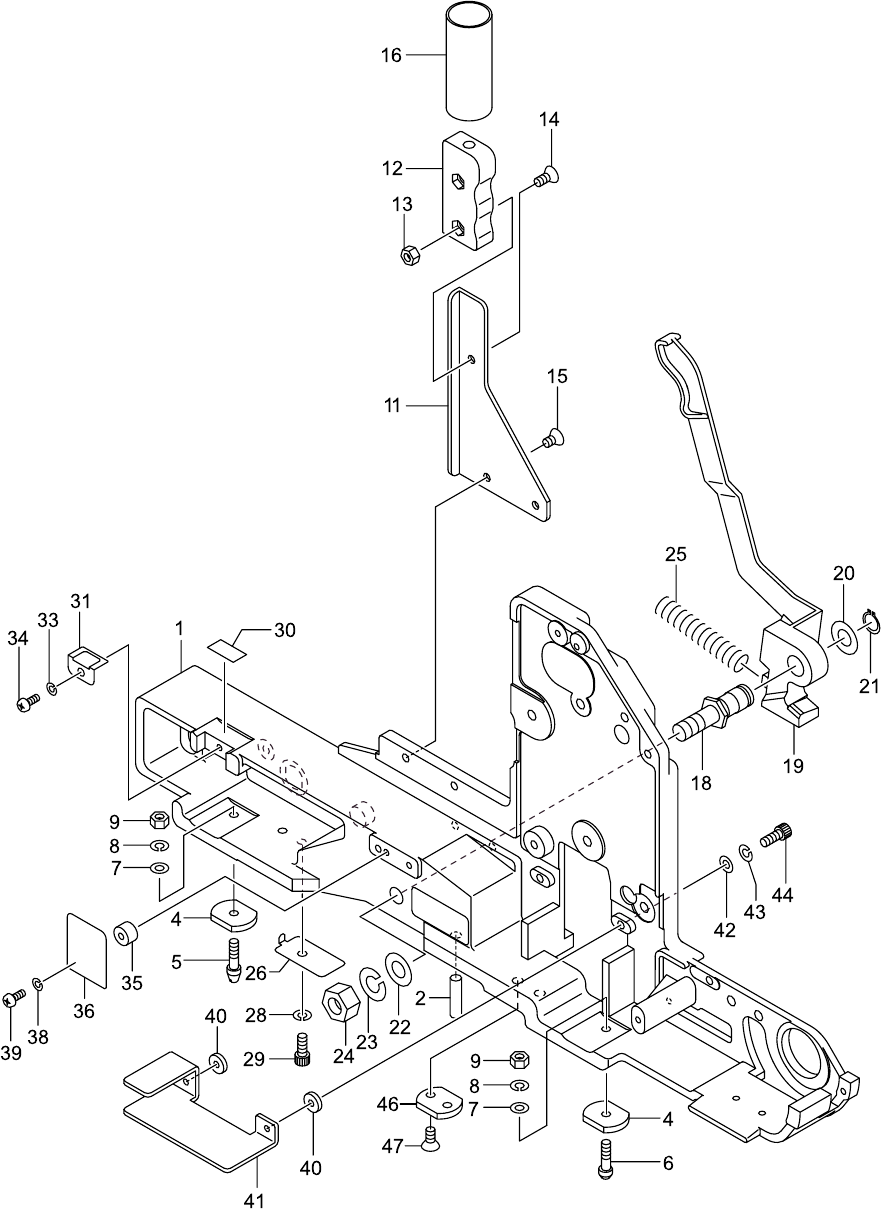

Fig. 5-1 ࠞ࠶࠻ࡏ࠺ࠖㇱ Cassette Body Section
0108-002
5-1
ㇱຠ⇟ภ ㇱ ຠ ฬ ⠨
PART No. PART NAME REMARKS
CT-3290L-12,16,20,24
CT-3290TL-12,16,20,24
1 630 084 8397 FRAME(CASSETTE BODY) 1 1 749V--01B-001
2 630 037 0294 PIN,LOCATE 1 1 749V--01H-003
4 630 039 3002 PLATE 2 2 749V--01B-070
5 630 039 3200 PIN,LOCATE 1 1 749V--01B-072
6 630 039 3187 PIN,LOCATE 1 1 749V--01B-071
7 411 141 4008 WASHER V 4X9X0.8 2 2 FW4
8 411 141 2905 WASHER SPR 4 2 2 SW4
9 411 141 0307 NUT HEX 4 2 2 M4
11 630 054 4800 BRACKET 1 749V-01B-003
12 630 070 7601 BRACKET(GRIP) 1 749V-01B-004
13 411 054 8506 NUT HEX 4 1 M4 F
14 411 113 4708 SCR FLT 4X10 1 M4X10 FLT
15 411 140 7208 SCR FLT 4X6 2 M4X6 FLT
16 630 041 6220 TUBE,WIRING 1 749V--01H-009
18 630 010 8248 PIN,LOCATE 1 1 749V--01B-005
19 630 041 7906 LEVER(LOCATE) 1 1 749V--01B-041
20 411 141 4701 WASHER V 10X21X2 1 1 FW10
21 411 000 7102 RING C 10 1 1 749V--01H-019
22 411 141 4503 WASHER V 8X17X1.6 1 1 FW8
23 411 141 3100 WASHER SPR 8 1 1 SW8
24 411 141 1007 NUT HEX 8 1 1 M8-3
25 630 010 5957 SPRING,COMP 1 1 749V--01B-076
26 630 039 3217 PLATE 1 1 749V--01B-051
28 411 141 2905 WASHER SPR 4 1 1 SW4
29 630 000 7602 BOLT,HEX-SCT 1 1 M4X6
30 630 037 2502 ACCESSORY,LIGHT 1 1 749V--01H-010
31 630 039 4085 PLATE 1 1 749V--01B-058
33 411 086 4408 WASHER SPR 3 1 1 SW3 F
34 411 041 8908 SCR PAN 3X6 1 1 M3X6 PAN
35 630 041 7630 SPACER 2 2 749V--01B-092
36 630 041 7739 PLATE 1 1 749V--01B-045
38 411 086 4408 WASHER SPR 3 2 2 SW3 F
39 411 040 7803 SCR PAN 3X12 2 2 M3X12 PAN
40 630 041 7647 SPACER 2 2 749V--01B-098
41 630 041 7913 PLATE 1 1 749V--01B-103
42 411 141 3902 WASHER V 3X7X0.5 2 2 FW3
BLACK
ᵈᗧ
NOTE
ᢙ㊂
Q'ty
⇟
ภ
Key No.
