No . P ar t No . P ar t Name Q'ty Remarks 1 KHJ-MC10E-00 SCREW ,FLA T HEXLOBE 11 2 KHJ-MC210-10 MO TOR, PEEL 1 3 KHJ-MC13F-00 SCREW ,ST AD 4 4 KHJ-MC251-00 GEAR,IDLE P1 1 5 KHJ-MC252-00 GEAR,IDLE P2 1 6 KHJ-MC253-00…
5
6
8
17
1
10
15
11
12
14
42
3
17
7
9
16
13
16
5
7
OLD
OLD
No. Part No. Part Name Q'ty Remarks Change
Compati.
1
KHJ-MC40C-00 SEAL,MAIN LABEL 1
2
KHJ-MC132-00 SPROCKET 1
3
KHJ-MC23A-00 SHIM,SPROCKET 1
4
KHJ-MC43E-00 BOLT HEX.S/H LOW 1
5
KHJ-MC441-00 TAPE GUIDE ASSY. 1
5-1
KHJ-MC441-01 TAPE GUIDE ASSY. 1
(2008/5/17) OK
5-2
KHJ-MC441-03 TAPE GUIDE ASSY. 1
(2009/3/2) NG
6
KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7
KHJ-MC445-00 LEVER,TAPE GUIDE F 1
7-1
KHJ-MC445-01 LEVER,TAPE GUIDE F 1
(2009/3/2) NG
8
KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1
KHJ-MC146-02 SPRING,TAPE GUIDE R 1
(2009/3/2) NG
9
KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1
KHJ-MC247-01 SPRING,TAPE GUIDE F 1
(2009/3/2) NG
10
KHJ-MC167-00 COVER,MENBRANE 1
11
KHJ-MC16J-00 SCREW,FLAT HEAD 11
12
KHJ-MC26K-00 COVER,MENBRANE 2 1
13
KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14
KHJ-MC1AA-00 SWITCH,OPERATION 1
15
KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
16
92A08-03303 SET SCREW M3X3 5
17
99480-04030 PIN,PARALLEL 2
KHJ-090415
3
2

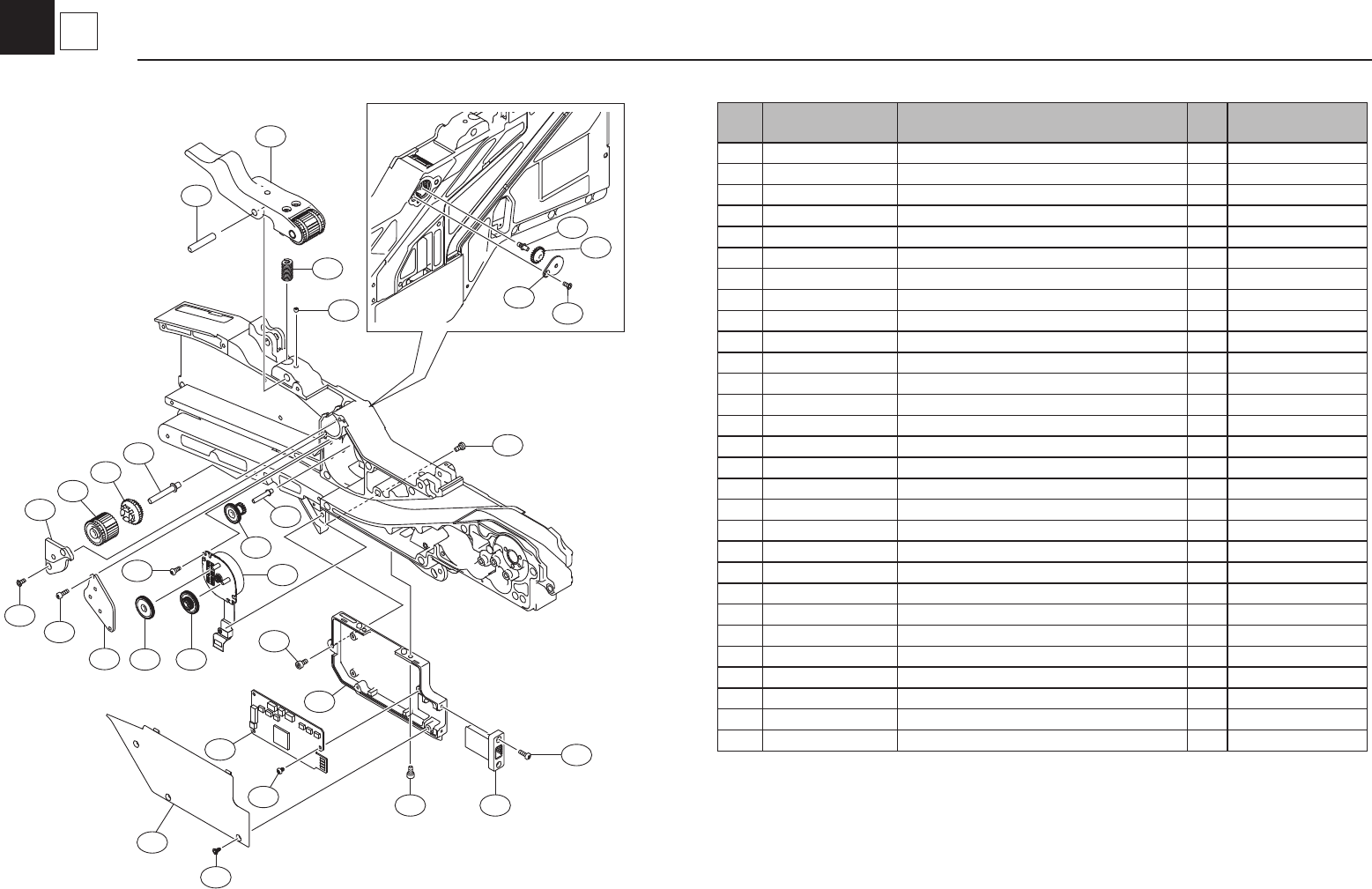

GUIDE,SPROKET & E/L 24mm
No. Part No. Part Name Q'ty Remarks
1
KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
2
KHJ-MC210-10 MOTOR, PEEL 1
3
KHJ-MC13F-00 SCREW,STAD 4
4
KHJ-MC251-00 GEAR,IDLE P1 1
5
KHJ-MC252-00 GEAR,IDLE P2 1
6
KHJ-MC253-00 GEAR,IDLE P3 1
7
KHJ-MC254-00 GEAR,IDLE P4 1
8
KHJ-MC256-00 ROLLER,PEEL OFF 1 1
9
KHJ-MC258-00 COVER,IDLE GEAR 1 1
10
KHJ-MC259-00 COVER,IDLE GEAR 2 1
11
KHJ-MC45A-00 SUB-ROLLER,1 1
12
KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1
13
KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1
14
KHJ-MC45D-00 SHAFT,ROLLER 1 1
15
KHJ-MC25E-00 COVER,IDLE GEAR 3 1
16
KHJ-MC26E-00 SPRING,P/O LEVER 1
17
KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
18
KHJ-MC46V-00 P/O LEVER ASSY. 1
19
KHJ-MC1A1-00 BOX,EL 1
20
KHJ-MC1A2-00 COVER,BOX EL 1
21
KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
22
KHJ-MC1A9-00 CONNECTOR,BOARD 1
23
KHJ-M4488-00 FEEDER BOARD ASSY 1
24
90115-2AJ008 BOLT HEX.SOCKET HEAD 2
25
90166-02JA03 SCREW,PAN HEAD 2
26
90166-02JA08 SCREW PAN H.:M2.5X8 2
27
91317-03006 BOLT HEX.SOCKET HEAD 3
28
92A08-03303 SET SCREW M3X3 5
29
99480-05025 PIN,PARALLEL 1
23
17
18
13
7
9
1
29
16
28
14
25
8
11
10
1
24
15
27
19
27
21
20
22
26
5 4
2
3
6
12
KHJ-0805
3
3
PEEL & E/L BOX 24mm
No. Part No. Part Name Q'ty Remarks
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC53N-00 PIN,DOWEL 1
6 KHJ-MC16J-00 SCREW,FLAT HEAD 11
7 KHJ-MC281-00 HANDLE 1
8 KHJ-MC182-00 TENSION,WIRE 1 1
9 KHJ-MC183-00 SPACER,TENSION 1 1
10 KHJ-MC184-00 SPACER,TENSION 2 1
11 KHJ-MC286-00 WIRE,UNCLAMP 1
12 KHJ-MC187-00 SPRING,TENSION 1
13 KHJ-MC289-00 PIN,CLAMP 1
14 KHJ-MC18A-00 SPRING,CLAMP 1
15 KHJ-MC28B-00 COVER,WIRE 1 1
16 KHJ-MC18F-00 CIRCLIP (E) 1
17 KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1
18 KHJ-MC28H-00 CLAMP LEVER ASSY. 1
19 90189-05J056 NUT,HEXAGON 1
20 90440-01J030 CIRCLIP(E) 1
21 91317-03008 BOLT HEX.SOCKET HEAD 4
22 91317-05012 BOLT HEX.SOCKET HEAD 1
23 92A08-03303 SET SCREW M3X3 5
24 99480-03010 PIN,PARALLEL 2
25 99480-04018 PIN,PARALLEL 1
26 99480-05012 PIN,PARALLEL 1
27 KHJ-MC10S-00 PIN,LOCATE 1 1
28 KHJ-MC10T-00 PIN,LOCATE 2 1
22
17
5
19
7
23
26
9
10
8
12
11
6
15
21
3
25
13
14
18
23
42
16
20
21
1
24
27
28
KHJ-0805
3
4
CLAMP LEVER 24mm
