No . P ar t No . P ar t Name Q'ty Remarks 1 KHJ-MC501-00 BOD Y ,FEEDER 1 2 KHJ-MC502-00 CO VER,FEEDER 1 3 KHJ-MC106-00 PLA TE,UNDER 1 4 KHJ-MC206-00 PLA TE,UNDER 1 5 KHJ-MC50C-00 SEAL,MAIN LABEL 1 6 KHJ-MC510-00 MO …
No. Part No. Part Name Q'ty Remarks
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC53N-00 PIN,DOWEL 1
6 KHJ-MC16J-00 SCREW,FLAT HEAD 11
7 KHJ-MC281-00 HANDLE 1
8 KHJ-MC182-00 TENSION,WIRE 1 1
9 KHJ-MC183-00 SPACER,TENSION 1 1
10 KHJ-MC184-00 SPACER,TENSION 2 1
11 KHJ-MC286-00 WIRE,UNCLAMP 1
12 KHJ-MC187-00 SPRING,TENSION 1
13 KHJ-MC289-00 PIN,CLAMP 1
14 KHJ-MC18A-00 SPRING,CLAMP 1
15 KHJ-MC28B-00 COVER,WIRE 1 1
16 KHJ-MC18F-00 CIRCLIP (E) 1
17 KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1
18 KHJ-MC28H-00 CLAMP LEVER ASSY. 1
19 90189-05J056 NUT,HEXAGON 1
20 90440-01J030 CIRCLIP(E) 1
21 91317-03008 BOLT HEX.SOCKET HEAD 4
22 91317-05012 BOLT HEX.SOCKET HEAD 1
23 92A08-03303 SET SCREW M3X3 5
24 99480-03010 PIN,PARALLEL 2
25 99480-04018 PIN,PARALLEL 1
26 99480-05012 PIN,PARALLEL 1
27 KHJ-MC10S-00 PIN,LOCATE 1 1
28 KHJ-MC10T-00 PIN,LOCATE 2 1
22
17
5
19
7
23
26
9
10
8
12
11
6
15
21
3
25
13
14
18
23
42
16
20
21
1
24
27
28
KHJ-0805
3
4
CLAMP LEVER 24mm
No. Part No. Part Name Q'ty Remarks
1 KHJ-MC501-00 BODY,FEEDER 1
2 KHJ-MC502-00 COVER,FEEDER 1
3 KHJ-MC106-00 PLATE,UNDER 1
4 KHJ-MC206-00 PLATE,UNDER 1
5 KHJ-MC50C-00 SEAL,MAIN LABEL 1
6 KHJ-MC510-00 MOTOR, FEED 1
7 KHJ-MC532-00 SPROCKET 1
8 KHJ-MC534-00 GEAR,IDLE F1 1
9 KHJ-MC535-00 GEAR,IDLE F2 1
10 KHJ-MC53R-00 GEAR,IDLE F3-1 1
11 KHJ-MC53S-00 GEAR,IDLE F3-2 1
12 KHJ-MC537-00 GEAR,IDLE F4 1
13 KHJ-MC538-00 GEAR,DRIVEN 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
16 90990-08J021 SCREW,STAD 2
17 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1
18 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1
19 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1
20 KHJ-MC53L-00 COVER,FEED GEAR 1
21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1
22 KHJ-MC53N-00 PIN,DOWEL 1
23 KHJ-MC561-00 BOX,TOP TAPE 1
24 KHJ-MC562-00 COVER,TOP TAPE BOX 1
25 KHJ-MC165-00 MAGNET,TAIL 1
26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
28 KHJ-MC56U-00 TAIL COVER ASSY. 1
29 90166-02JA03 SCREW,PAN HEAD 1
30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03022 BOLT,HEX.SOCKET HEAD 5
33 91312-03030 BOLT,HEX.SOCKET HEAD 1
34 91317-03020 BOLT HEX.SOCKET HEAD 6
35 91317-03030 BOLT HEX.SOCKET HEAD 1
36 98707-03006 SCREW,FLAT HEAD 4
37 99480-03010 PIN,PARALLEL 8
5
28
26
1
18
12
37
19
11
4
36
10
6
29
8
9
25
34
33
5
24
31
22
21
15 7
14
32
3
36
31
13
2
37
30
17
16
23
20
27
35
KHJ-0805
4
1

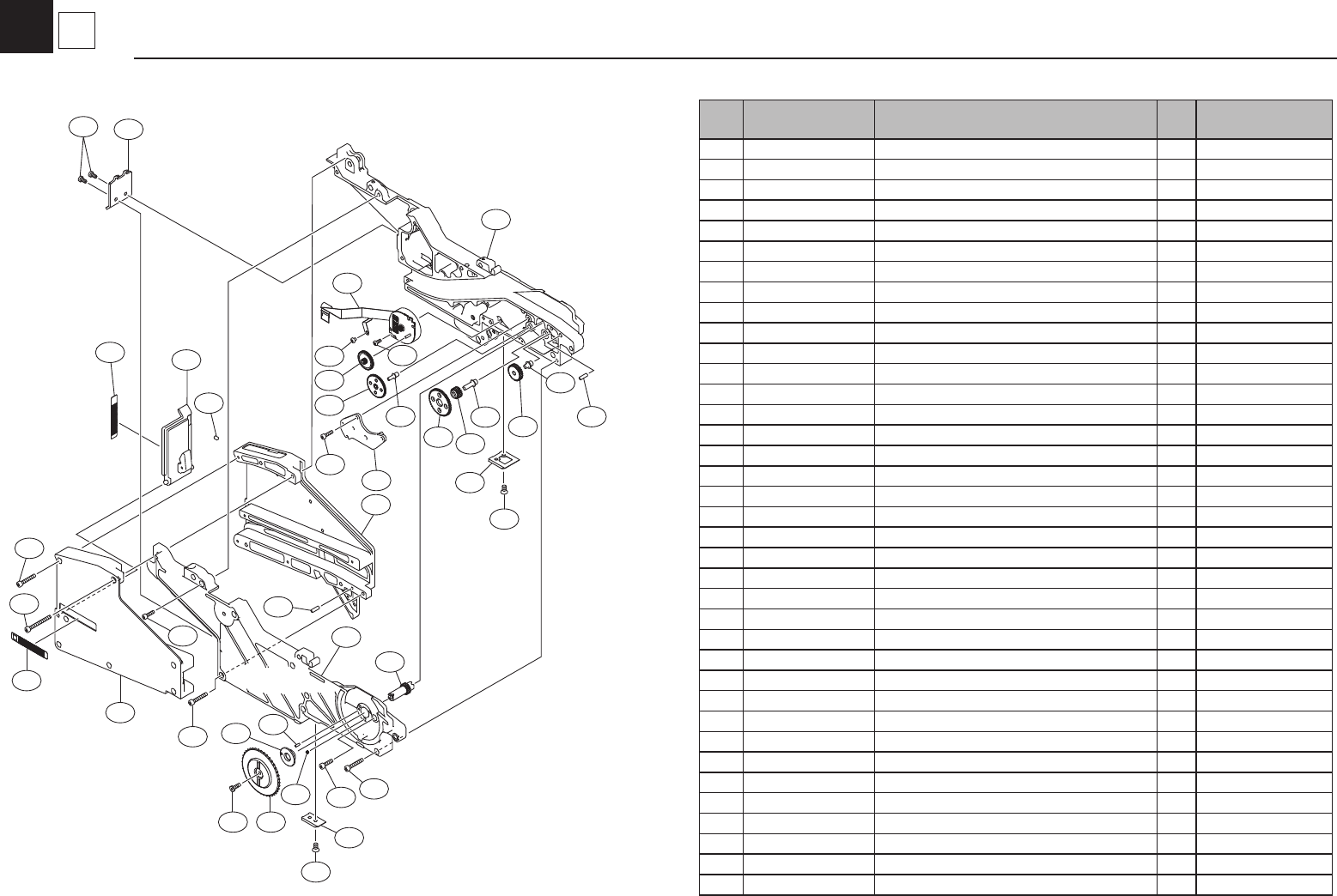

FEED & BODY 32mm
5
6
8
18
1
11
16
12
13
15
4
2
3
10
7
9
17
14
17
5
19
7
OLD
OLD
No. Part No. Part Name Q'ty Remarks Change
Compati.
1 KHJ-MC50C-00 SEAL,MAIN LABEL 1
2 KHJ-MC532-00 SPROCKET 1
3 KHJ-MC53B-00 BUSH,SPROCKET 1
4 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC541-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC541-01 TAPE GUIDE ASSY. 1
(2008/5/28) OK
5-2 KHJ-MC541-02 TAPE GUIDE ASSY. 1
(2009/3/2) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC545-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC545-01 LEVER,TAPE GUIDE F 1
(2009/3/2) NG
8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
(2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1
(2009/3/2) NG
10 KHJ-MC54E-00 SHAFT,LEVER 1
11 KHJ-MC167-00 COVER,MENBRANE 1
12 90990-09J008 SCREW,FLAT HEAD 2
13 KHJ-MC26K-00 COVER,MENBRANE 2 1
14 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
15 KHJ-MC1AA-00 SWITCH,OPERATION 1
16 90990-54J003 SCREW,PAN HEAD TAP. 2
17 92A08-03303 SET SCREW M3X3 2
18 99480-04028 PIN,PARALLEL 1
19 90K41-000770 SEAL,HIGH TEMP. 1
KHJ-090415
4
2
GUIDE,SPROKET & E/L 32mm
