No . P ar t No . P ar t Name Q'ty Remarks 1 KHJ-MC10E-00 SCREW ,FLA T HEXLOBE 11 2 KHJ-MC210-10 MO TOR, PEEL 1 3 KHJ-MC13F-00 SCREW ,ST AD 4 4 KHJ-MC251-00 GEAR,IDLE P1 1 5 KHJ-MC252-00 GEAR,IDLE P2 1 6 KHJ-MC253-00…

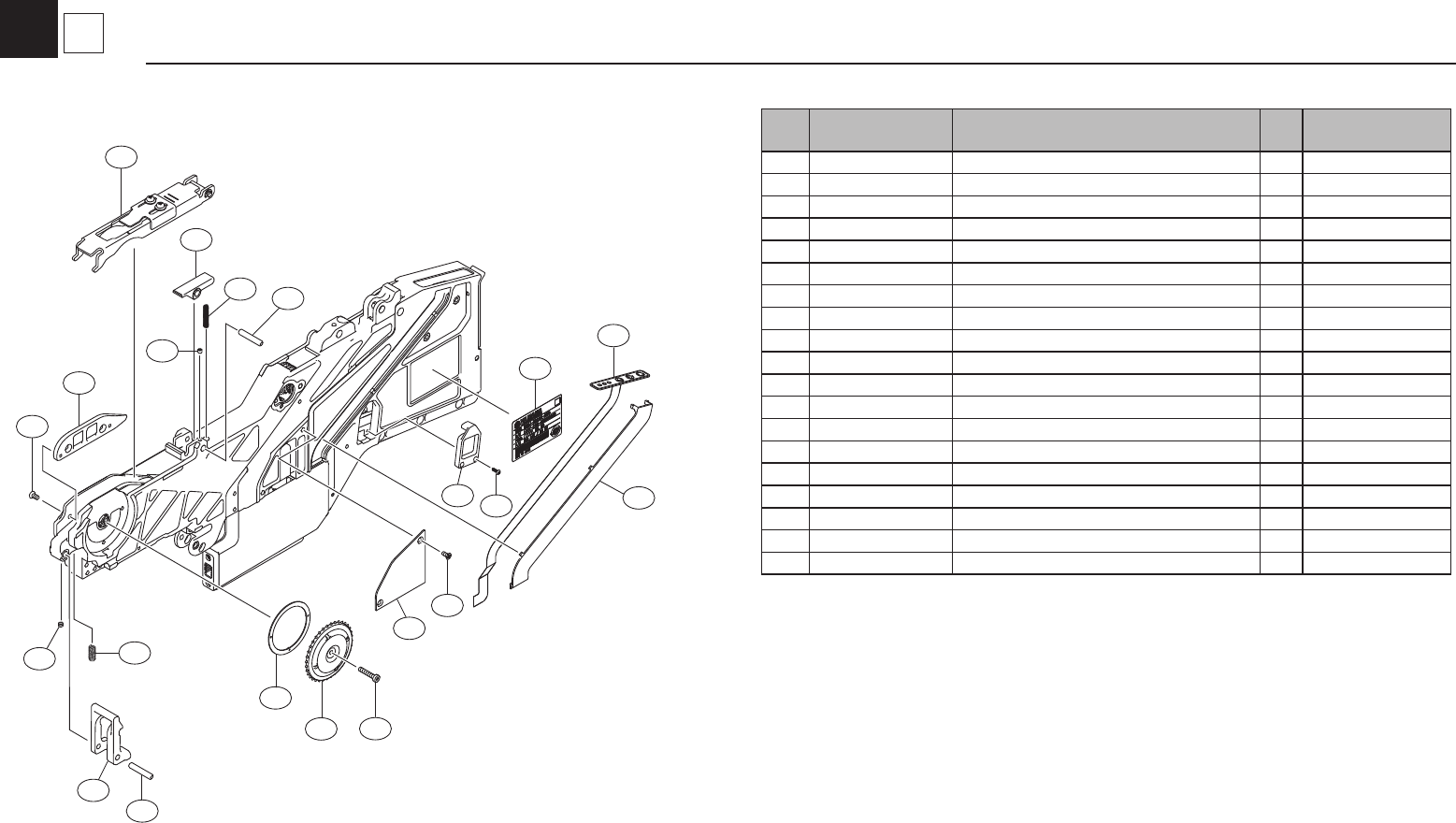

No. Part No. Part Name Q'ty Remarks
1
KHJ-MC20C-00 SEAL,MAIN LABEL 1
2
KHJ-MC132-00 SPROCKET 1
3
KHJ-MC23A-00 SHIM,SPROCKET 1
4
KHJ-MC23E-00 BOLT HEX.S/H LOW 1
5
KHJ-MC241-00 TAPE GUIDE ASSY. 1
6
KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7
KHJ-MC245-00 LEVER,TAPE GUIDE F 1
8
KHJ-MC146-00 SPRING,TAPE GUIDE R 1
9
KHJ-MC247-00 SPRING,TAPE GUIDE F 1
10
KHJ-MC167-00 COVER,MENBRANE 1
11
KHJ-MC16J-00 SCREW,FLAT HEAD 11
12
KHJ-MC26K-00 COVER,MENBRANE 2 1
13
KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14
KHJ-MC1AA-00 SWITCH,OPERATION 1
15
KHJ-MC24D-00 PLATE,GUIDE 12 1
16
KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
17
98707-03006 SCREW,FLAT HEAD 5
18
92A08-03303 SET SCREW M3X3 5
19
99480-04022 PIN,PARALLEL 2
5
6
8
18
15
17
19
1
16
13
12
4
2
19
18
7
9
3
11
14
10
KHJ-0803
2
2
GUIDE,SPROKET & E/L 12mm/16mm
No. Part No. Part Name Q'ty Remarks
1
KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
2
KHJ-MC210-10 MOTOR, PEEL 1
3
KHJ-MC13F-00 SCREW,STAD 4
4
KHJ-MC251-00 GEAR,IDLE P1 1
5
KHJ-MC252-00 GEAR,IDLE P2 1
6
KHJ-MC253-00 GEAR,IDLE P3 1
7
KHJ-MC254-00 GEAR,IDLE P4 1
8
KHJ-MC256-00 ROLLER,PEEL OFF 1 1
9
KHJ-MC258-00 COVER,IDLE GEAR 1 1
10
KHJ-MC259-00 COVER,IDLE GEAR 2 1
11
KHJ-MC25A-00 SUB-ROLLER,1 1
12
KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1
13
KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1
14
KHJ-MC25D-00 SHAFT,ROLLER 1 1
15
KHJ-MC25E-00 COVER,IDLE GEAR 3 1
16
KHJ-MC26E-00 SPRING,P/O LEVER 1
17
KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
18
KHJ-MC26V-00 P/O LEVER ASSY. 1
19
KHJ-MC1A1-00 BOX,EL 1
20
KHJ-MC1A2-00 COVER,BOX EL 1
21
KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
22
KHJ-MC1A9-00 CONNECTOR,BOARD 1
23
KHJ-M4488-00 FEEDER BOARD ASSY 1
24
90115-2AJ008 BOLT HEX.SOCKET HEAD 2
25
90166-02JA03 SCREW,PAN HEAD 2
26
90166-02JA08 SCREW PAN H.:M2.5X8 2
27
91317-03006 BOLT HEX.SOCKET HEAD 3
28
92A08-03303 SET SCREW M3X3 5
29
99480-05018 PIN,PARALLEL 1
18
29
16
13
7
9
1
28
14
8
11
10
1
24
15 5 4
3
6
2
27
19
17
27
21
20
22 26
23
12
25
KHJ-0803
2
3
PEEL & E/L BOX 12mm/16mm
No. Part No. Part Name Q'ty Remarks
1
KHJ-MC103-01 BLOCK,FRONT 1
2
KHJ-MC104-00 RAIL,UNDER 1
3
KHJ-MC105-00 PIN,TAIL 1
4
KHJ-MC10F-00 SCREW,FLAT HEAD 2
5
KHJ-MC16J-00 SCREW,FLAT HEAD 11
6
KHJ-MC281-00 HANDLE 1
7
KHJ-MC182-00 TENSION,WIRE 1 1
8
KHJ-MC183-00 SPACER,TENSION 1 1
9
KHJ-MC184-00 SPACER,TENSION 2 1
10
KHJ-MC286-00 WIRE,UNCLAMP 1
11
KHJ-MC187-00 SPRING,TENSION 1
12
KHJ-MC289-00 PIN,CLAMP 1
13
KHJ-MC18A-00 SPRING,CLAMP 1
14
KHJ-MC28B-00 COVER,WIRE 1 1
15
KHJ-MC18F-00 CIRCLIP (E) 1
16
KHJ-MC28H-00 CLAMP LEVER ASSY. 1
17
90440-01J030 CIRCLIP(E) 1
18
91317-03008 BOLT HEX.SOCKET HEAD 4
19
92A08-03303 SET SCREW M3X3 5
20
99480-03010 PIN,PARALLEL 3
21
99480-04018 PIN,PARALLEL 1
22
99480-05012 PIN,PARALLEL 1
7
6
19
22
11
8
9
14
5
10
18
32112
13
16
19
15
20
1
18
2
4
17
KHJ-0803
2
4
CLAMP LEVER 12mm/16mm
